NEC InfinityBoard 2.2 86-inch interactive flat panel with Huddly IQ camera

NEC

Interactive Flat PanelsSKU 86-inch InfinityBoard 2.2

NEC InfinityBoard 2.2 86-inch Interactive Flat Panel

Name: NEC InfinityBoard 2.2 86-inch Interactive Flat Panel
Brand: NEC
SKU: 86-inch InfinityBoard 2.2
Availability: InStock

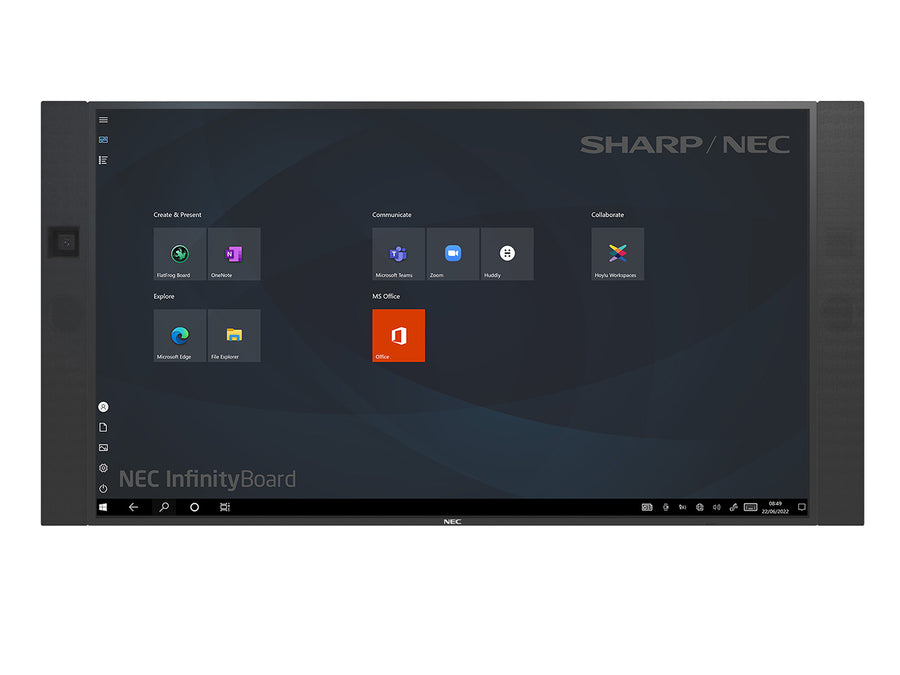

The NEC InfinityBoard 2.2 is a discontinued 86-inch interactive flat panel for meeting rooms and creative workspaces, with a 4K UHD IPS touch display, up to 20 touch points and a Huddly IQ camera. It includes a built-in Windows 10 Professional PC with 8 GB RAM. Procure.ae supplies NEC interactive displays in the UAE and can confirm current availability.

The InfinityBoard 2.2 uses the same 86-inch 4K UHD (3840 x 2160) IPS panel as the 2.1 model, with 500 cd/m² brightness and a typical contrast ratio of 1,200:1. Its InGlass touch layer supports up to 20 real touch points, with palm rejection, Windows Ink and touch accuracy below 1 mm. Finger, glove and stylus input work on the screen, and two passive pens are included.

The built-in PC is an Intel Core i7-7820EQ with 8 GB RAM and a 128 GB SSD, and the OPS slot and Compute Module 3 slot allow other computing options. The panel has two DisplayPort and three HDMI inputs, with a 3.5 mm audio jack, LAN and RS232 control. Mount it with 400 x 400 mm or 600 x 400 mm VESA holes. The included FlatFrog Board for Rooms software is listed with a one-year licence and a free download.

Screen Size

86 inch

Resolution

3840 x 2160 (4K UHD)

Brightness

500 nits

Touch Technology

InGlass

20-Point Multi-Touch
Palm Rejection
4K UHD IPS Panel

Price

On request · best price

WhatsApp Call

Download spec sheet (PDF) Manufacturer datasheet (PDF)

Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond

Manufacturer warrantyBacked by the brand

InstallationArranged on request

Key features

20-Point Multi-Touch

InGlass touch supports up to 20 real touches with a response time of 15 ms or less.

Palm Rejection

Palm rejection and Windows Ink support writing and drawing on the screen.

4K UHD IPS Panel

86-inch panel at 3840 x 2160 with 500 nits brightness and 1,200:1 typical contrast.

Huddly IQ Camera

Built-in ultra-wide camera with 1080p output at 30 fps and 3x lossless digital zoom.

Built-in Windows PC

Intel Core i7-7820EQ with 8 GB RAM and 128 GB SSD, running Windows 10 Professional.

FlatFrog Board for Rooms

Included collaboration software with a one-year licence, available as a free download.

Expansion Slots

OPS slot for slot-in PCs and a Compute Module 3 slot for NEC or Raspberry Pi modules.

Specifications

41 specifications

General

ControlsLAN, RS232, 3.5 mm remote control input

Key Features20-point multi-touch, 4K UHD IPS display, palm rejection, Huddly IQ camera, slot-in PC, Compute Module slot, Windows Ink, FlatFrog Board for Rooms

Model86-inch InfinityBoard 2.2

TypeInteractive Flat Panel

What's in the BoxDisplay, Huddly IQ camera, OPS slot-in PC, remote control, side-mounted speakers, 2 stylus pens, cables

Display

Aspect Ratio16:9

BacklightEdge LED

Bezel Size19.8 mm (top/bottom), 20.3 mm (left/right)

Brightness500 nits

CameraHuddly IQ, 1080p at 30 fps, 3x lossless digital zoom

Contrast Ratio1,200:1

Panel TechnologyIPS

Resolution3840 x 2160 (4K UHD)

Response Time8 ms (grey-to-grey, typical)

Screen Size86 inch

Touch Accuracy< 1 mm

Touch Points20-point multi-touch

Touch Response Time15 ms

Touch TechnologyInGlass

Viewing Angle178° horizontal / 178° vertical

Performance

GraphicsIntel 630 integrated graphics (Gen9-LP)

LicenseFlatFrog Board for Rooms (1 year, free download)

Operating SystemWindows 10 Professional (slot-in PC)

ProcessorIntel Core i7-7820EQ (4 cores, up to 3.7 GHz)

RAM8 GB DDR4

Storage128 GB SSD

Audio

AudioSide-mounted speakers; 3.5 mm audio in and out

Connectivity

ExpansionCompute Module 3 slot (proprietary standard)

OPS SlotOpen pluggable specification (Intel OPS standard)

PortsHDMI In × 3, DisplayPort In × 2, USB 3.0 × 4 (hub), USB Type-B × 1, LAN 100 Mbit × 1, RS232 × 1

Wi-FiDual-band 802.11ac, Bluetooth 4.2

Power

Power Consumption242 W (shipping)

Physical

Dimensions2192 x 1142 x 86 mm (without stand)

Duty Cycle24/7

Operating Humidity20% to 80% RH

Operating Temperature0 to 35 °C

VESA Mount400 x 400 mm; 600 x 400 mm

Weight91.7 kg (without stand)

Compliance

CertificationsCE, EAC, FCC, RCM, RoHS, REACH, UL/C-UL, EMC Class B

IP RatingIP5x (front); IP2x (back)

Warranty3 years (including backlight)

Downloads

Manufacturer documents for the NEC InfinityBoard 2.2 86-inch Interactive Flat Panel — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

What is the NEC InfinityBoard 2.2?

The NEC InfinityBoard 2.2 is an 86-inch interactive flat panel for meeting rooms and collaboration. It combines a 4K UHD IPS multi-touch display, palm rejection, a Huddly IQ camera, side-mounted speakers and a built-in Windows 10 Professional PC. The manufacturer lists this model as discontinued.

Does the InfinityBoard 2.2 support Windows, Linux and Android?

Yes. The native multi-touch supports Windows 7 to 11, Linux and Android. The built-in PC runs Windows 10 Professional, and the manufacturer states the platform is not restricted to particular software, video conferencing apps or infrastructure.

What room size suits the InfinityBoard 2.2?

The 86-inch screen suits rooms where a group works around one large display, such as workshops or think tanks. The manufacturer's specifications do not state a room size range, so Procure.ae can advise on viewing distance for your room.

How is the InfinityBoard 2.2 mounted?

The panel has 400 x 400 mm and 600 x 400 mm VESA mounting patterns, plus M8 holes. The manufacturer lists trolleys PD02MHA and PD03MHA and the PDW T XL-2 wall mount as accessories. Procure.ae can confirm the right mount and installation for your setup.

Does the InfinityBoard 2.2 include a camera and speakers?

Yes. It includes a Huddly IQ camera with 1080p output at 30 fps and side-mounted speakers with a sound pressure level of 82.1 dB. It has LAN 100 Mbit and RS232 control for integration with room systems.
