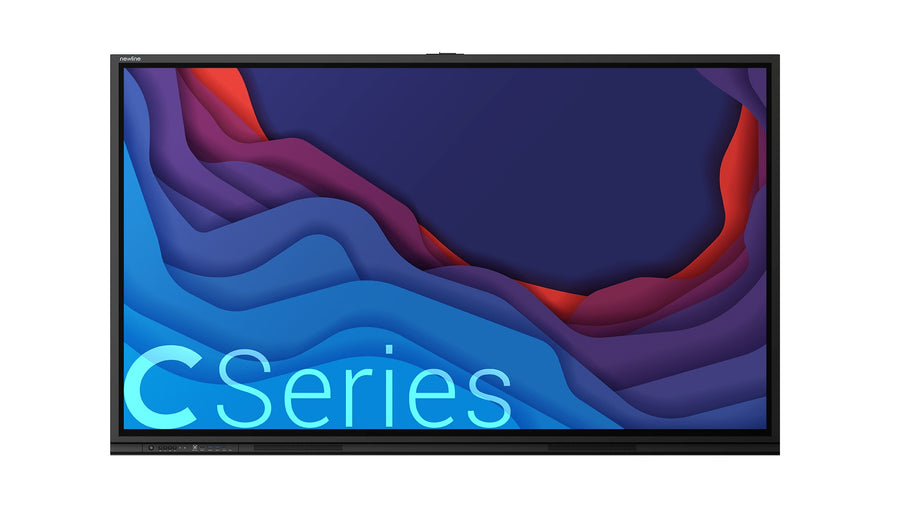

Newline C Series 75-inch Interactive Flat Panel – TT-7523C
The Newline C Series 75-inch (model TT-7523C) is a 75-inch 4K interactive flat panel with 40-point Windows touch, 450 nits brightness and plug-and-play USB-C connectivity. It suits classrooms and meeting rooms that want a display ready to use with a connected laptop or PC. Procure.ae supplies the Newline C Series 75-inch across the UAE.
The C Series 75-inch has a 3840 x 2160 (4K UHD) direct LED display with 450 nits brightness, a 4,000:1 contrast ratio, 178 degree viewing angles and a 5 ms response time. Stellar Touch Technology provides 40 touch points on Windows and 20 on Android, macOS and Linux, with ±1 mm accuracy and two passive styluses. One USB Type-C cable carries video, touch, audio, data and power from a connected device. Two 15 W speakers face forward.
The panel has no built-in operating system. Its OPS slot takes an embedded PC, which the manufacturer describes as a way to bring Windows directly onto the display. Mounting uses an 800 x 400 mm VESA pattern. The 75-inch measures 1735 x 1048 x 111 mm without wall mount and weighs 50 kg. Standard-mode power draw is 116 W and standby is under 0.5 W. The rear ports include a VGA input, RS232, RJ45 in and out, SPDIF, audio line out and an OPS slot.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Stellar Touch Technology
- Paper-like writing
- 40 Windows touch points
- Plug-and-play USB-C
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Paper-like writing
Passive pen, finger and fist input with two styluses listed in the specification.
02
40 Windows touch points
20 points on Android, macOS and Linux, with ±1 mm accuracy.
03
Plug-and-play USB-C
One cable carries audio, video, power, data and touch.
04
Zero bonding glass
Certified zero bonding with anti-glare glass and over 88% transparency.
05
Built-in speakers
Two 15 W front-facing speakers.
06
OPS slot
Takes an embedded OPS PC so Windows can run directly on the display.
07
Long display life
Display life rated at 50,000 hours or more.
08
Wide port selection
Three HDMI In 2.0 inputs, VGA in, two USB-C ports, RS232 and RJ45.
Specifications
28 specificationsGeneral
Key FeaturesPaper-like writing, 40 Windows touch points, zero bonding glass, plug-and-play USB-C, two 15 W speakers, OPS slot, two styluses, 50,000-hour display life
Model75" C Series
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDirect LED
Brightness450 nits
Color Depth1.07 billion colours
Contrast Ratio4,000:1
Resolution3840 x 2160 (4K UHD)
Response Time5 ms
Screen Size75 inch
Touch Accuracy±1 mm
Touch Points40 points (Windows) / 20 points (Android, macOS, Linux)
Touch TechnologyStellar Touch Technology
Viewing Angle178 degrees
Performance
Operating SystemNone (no built-in OS)
ProcessorArm Cortex-A55 x 4
RAM2 GB
Storage8 GB
Audio
Speaker Configuration2 speakers, front facing
Speaker Output15 W x 2
Connectivity
OPS Slot1 (embedded OPS PC)
PortsHDMI In 2.0 x 3, VGA In x 1, USB-C x 2 (one camera slot), USB 3.0 Type-A x 2, USB 2.0 Type-A x 3, USB Touch Type-B x 2, Mic In x 1, RS232 x 1, RJ45 in/out, SPDIF x 1, Audio Line Out x 1, OPS slot x 1
Power
Power Consumption116 W (standard mode)
Standby Power<0.5 W
Physical
Dimensions1735 x 1048 x 111 mm
VESA Mount800 x 400 mm
Weight50 kg (net)
Downloads
Manufacturer documents for the Newline C Series 75-inch Interactive Flat Panel – TT-7523C — datasheets, manuals, drawings and certificates.
- Datasheet – C Series – C23 Specsheet Newline EN Web
- Datasheet – C Series – CSeries(C23) EDLA Set Specsheet Newline EN Web
- Datasheet – C Series – CSeriesC23 EDLA Set Specsheet Newline EN
- Brochure – C Series
- User manual – C Series – 720310106A-说明书 C23 9666 newline 英文
- User manual – C Series – C23 UserManualExtended Newline EN
- User manual – C Series – C23 UserManual Newline EN
Questions
Can’t find your answer? Ask on WhatsApp
Does the C Series 75-inch need a computer to work?
No. The panel has no built-in operating system, but a laptop or PC connected by USB-C provides video, touch, audio, data and power over one cable. An OPS slot can take an embedded PC if you want the computer built in.
How many touch points does the C Series 75-inch support?
It supports 40 touch points on Windows and 20 on Android, macOS and Linux. Touch accuracy is ±1 mm, and the spec sheet lists passive pen, finger and fist as writing tools with two styluses.
What VESA mount size does the 75-inch use?
The 75-inch uses an 800 x 400 mm VESA pattern. Its net weight is 50 kg and its dimensions are 1735 x 1048 x 111 mm without the wall mount, so confirm the wall bracket rating with Procure.ae before installation.
How much power does it draw?
Standard mode draws 116 W for the 75-inch and standby mode draws less than 0.5 W, according to the manufacturer's spec sheet. Those figures are for the panel itself, not for any embedded PC added through the OPS slot.
Does it have built-in speakers?
Yes. Two 15 W front-facing speakers are fitted, with a 6 ohm rated impedance and a 15 W maximum output per speaker. The rear audio line out can feed an external sound system.
