NewlineInteractive Flat PanelsSKU 65" Q Pro

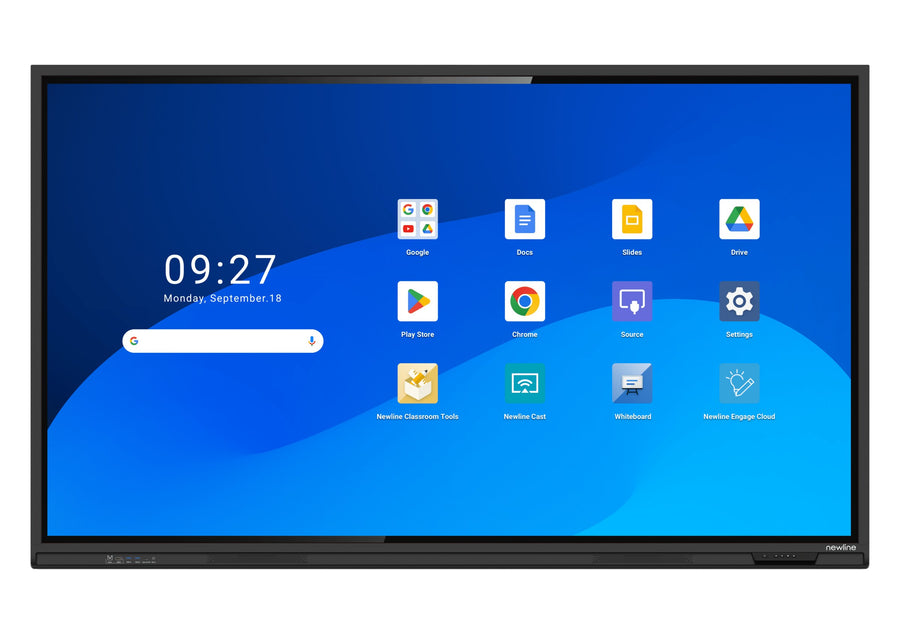

Newline Q Pro 65-inch Interactive Flat Panel – TT-6523QA
The Newline Q Pro 65-inch (model TT-6523QA) is a 4K UHD interactive flat panel for classrooms and meeting rooms. It runs Android 14, offers 20-point touch on Android or 40 points on Windows, and is Google EDLA-certified. Procure.ae supplies the Newline Q Pro 65-inch across the UAE.
The Q Pro 65-inch has a 3840 x 2160 (4K UHD) display with 400 nits brightness, 1.07 billion colours and an 8 ms typical response time. The panel uses infrared touch and anti-glare, anti-fingerprint, antimicrobial tempered glass rated at 88% transparency, with touch response under 4 ms. An octa-core processor works with 8 GB RAM and 64 GB internal storage. Wi-Fi 6 and Bluetooth 5.2 are supported, and two 20 W speakers sit at the bottom front.
The panel suits classrooms, lecture spaces and meeting rooms where staff open Google Play and Google Workspace apps directly on the screen. Its ports include HDMI In 2.0 (three in total), DisplayPort 1.2, HDMI Out 2.0, RS232, RJ45 in and out, and an OPS slot for an on-board computer. Installation is listed as wall-mounted or mobile stand. The Newline Q Pro 75-inch (TT-7523QA) is the larger size in the same series, at 51 kg net against 39 kg for this model.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- Google EDLA certified
- Android 14 platform
- 4K UHD display
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Google EDLA certified
Certified for classroom use, with access to Google Play and Google Workspace apps.
02
Android 14 platform
Octa-core processor with 8 GB RAM and 64 GB internal storage.
03
4K UHD display
3840 x 2160 resolution, 400 nits brightness and 1.07 billion colours.
04
Infrared touch
20 touch points on Android and 40 on Windows, with touch response under 4 ms.
05
Anti-glare tempered glass
Anti-glare, anti-fingerprint and antimicrobial glass rated at 88% transparency.
06
Built-in speakers
Two 20 W speakers positioned at the bottom front.
07
Wi-Fi 6 and Bluetooth 5.2
Wireless connectivity through the panel's Wi-Fi module slot.
08
Optional camera module
8 MP camera with 4K video at 30 Hz and a 120 degree field of view.
Specifications
31 specificationsGeneral
Key FeaturesGoogle EDLA certified, Android 14, 20 or 40-point touch, 4K UHD display, 8 GB RAM, Wi-Fi 6, anti-glare anti-fingerprint glass, optional 8 MP camera
Model65" Q Pro
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
BacklightDirect LED
Brightness400 nits
Camera8 MP optional module, 4K at 30 Hz, 120 degree FOV
Color Depth1.07 billion colours
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Points20 points (Android) / 40 points (Windows)
Touch Response Time<4 ms
Touch TechnologyInfrared
Viewing Angle178 degrees horizontal / 178 degrees vertical
Performance
Operating SystemAndroid 14
ProcessorOcta-core ARM Cortex-A73 x 4 + A53 x 4
RAM8 GB
Storage64 GB internal
Audio
Speaker Configuration2 speakers, bottom front
Speaker Output20 W x 2 (maximum)
Connectivity
BluetoothBluetooth 5.2
Input Voltage100-240 V AC
PortsHDMI In 2.0 x 3, HDMI Out x 1, DisplayPort 1.2 x 1, USB-C x 2 (one 65 W PD), USB Touch x 4, USB 3.0 Type-A x 5, RS232 x 1, RJ45 in/out, SPDIF x 1, Audio Line Out x 1, Mic In x 1, OPS slot x 1
Wi-FiWi-Fi 6
Power
Power Consumption620 W (maximum)
Standby Power<0.5 W
Physical
Dimensions1513 x 927 x 101 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Weight39 kg (net)
Downloads
Manufacturer documents for the Newline Q Pro 65-inch Interactive Flat Panel – TT-6523QA — datasheets, manuals, drawings and certificates.
- Brochure – Q Pro Series – Q-Pro-Flyer EDLA-20260320-compressesd
- Brochure – Q Pro Series – Q-Pro-Flyer EDLA-Ver
- User manual – Q Pro Series
- Quick start guide – Q Pro Series
- Drawing – Q Pro Series – Q-Pro-55-Dimensional-Drawings
- Drawing – Q Pro Series – Q-Pro-65-Dimensional-Drawings
- Drawing – Q Pro Series – Q-Pro-75-Dimensional-Drawings
- Drawing – Q Pro Series – Q-Pro-86-Dimensional-Drawings
- Drawing – Q Pro Series – Q-Pro-98-Dimensional-Drawings
- Q-Pro-Series-Cheat-Sheet
Questions
Can’t find your answer? Ask on WhatsApp
What resolution and brightness does the Q Pro 65-inch have?
It has a 3840 x 2160 (4K UHD) resolution and 400 nits brightness, with 1.07 billion colours, 178 degree horizontal and vertical viewing angles and an 8 ms typical response time. The manufacturer rates the display life at 50,000 hours or more.
Does the Q Pro 65-inch run Android apps?
Yes. It runs Android 14 with access to Google Play and Google Workspace apps, and the series is Google EDLA-certified for classroom use. The rear panel also has a USB 3.0 Type-A to Android port.
How many touch points does it support?
It supports 20 touch points on Android and 40 on Windows. The panel uses infrared touch with stylus or finger input, and the manufacturer lists touch response time as under 4 ms.
Can the Q Pro 65-inch be wall-mounted?
Yes. The manufacturer lists wall-mounted and mobile stand installation as options. The manufacturer's specifications do not state a VESA pattern for the 65-inch, so confirm the mount size with Procure.ae before ordering.
Does it have a camera?
A camera module is optional. It is an 8 MP camera with 4K resolution at 30 Hz, a 120 degree field of view and a tilt range of 15 degrees after installation.
