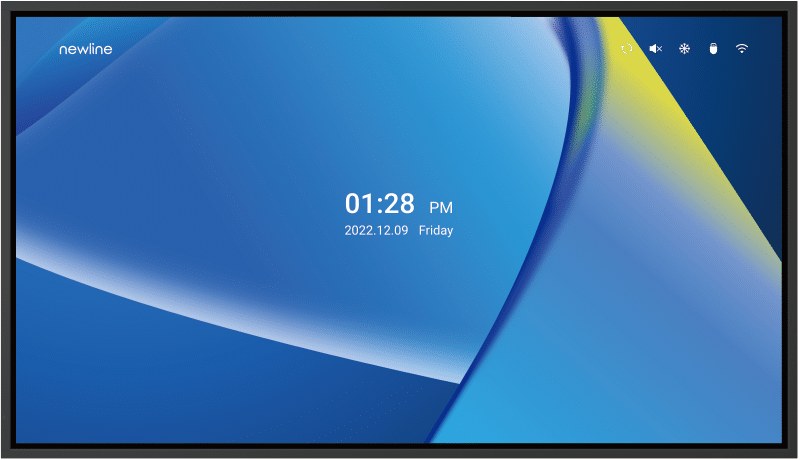

Newline NT+ Series 75-inch 4K UHD Non-Touch Display – TT-7523NT
The Newline TT-7523NT is a 75-inch 4K UHD non-touch display for classrooms and meeting rooms. It offers wireless screen casting from phones, tablets and laptops, an Android 11 smart system and 400 cd/m² brightness. Procure.ae supplies the Newline TT-7523NT across the UAE, with delivery and installation.
The 75-inch LED panel offers 3840 x 2160 (4K UHD) resolution, 400 cd/m² brightness, a typical 4,000:1 contrast ratio, an 8 ms response time and a 178° viewing angle, with a rated life of 50,000 hours. It is a non-touch model. A quad-core Arm Cortex-A55 processor with 4GB RAM and 32GB storage runs the Android 11 smart system, with multi-language support and firmware updates over USB or OTA.
The NT+ Series suits classrooms and meeting rooms that need presentations without touch input. Wireless casting shares screens from phones, tablets, desktops and laptops running Windows, Mac or Chrome. Files open from cloud storage or USB thumb drives on the display itself. Three HDMI inputs, a DisplayPort input, a VGA input, USB-C, RJ-45 LAN in and RS-232 connect the panel to room equipment. Wall-mounted or mobile cart setups are supported.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Type
Non-Touch Display
- 4K UHD resolution
- Non-touch display
- Wireless screen casting
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD resolution
3840 x 2160 pixels on a 75-inch panel with 400 cd/m² brightness.
02
Non-touch display
Presentation display without touch input, operated with buttons and a compatible remote.
03
Wireless screen casting
Share from mobile devices, tablets, desktops and laptops.
04
Cloud and USB files
Open files from cloud storage or connected USB thumb drives.
05
Android 11 smart system
Quad-core Arm Cortex-A55 processor with 4GB RAM and 32GB storage.
06
Pluggable Wi-Fi module
Wi-Fi 6 and Bluetooth 5.2 through a pluggable module.
07
Built-in speakers
Two speakers with 20 W maximum output each.
08
Rear connections
Three HDMI inputs, DisplayPort, VGA, USB-C, LAN and RS-232.
Specifications
37 specificationsGeneral
Key FeaturesNon-touch 4K display, wireless screen casting, Android 11 smart system, cloud and USB file access, Wi-Fi 6 module, remote control
ModelTT-7523NT
TypeNon-Touch Display
Display
Aspect Ratio16:9
BacklightLED
Brightness400 nits
Color Depth1.07 billion (8-bit + FRC)
Contrast Ratio4,000:1 (typical)
Resolution3840 x 2160 (4K UHD)
Response Time8 ms (typical)
Screen Size75 inch
TouchscreenNo (non-touch)
Viewing Angle178°
Performance
Operating SystemAndroid 11 (smart system)
ProcessorQuad-core Arm Cortex-A55, up to 1.9 GHz
RAM4 GB
Storage32 GB
Audio
DisplayPort1 × DisplayPort
Speaker Output20 W × 2 (max)
Connectivity
BluetoothBluetooth 5.2
EthernetRJ-45 LAN In × 1
HDMI Inputs3 × HDMI In
Input Voltage100–240 V AC
PortsHDMI In × 3, USB 2.0 × 3, RJ-45 LAN In × 1, RS-232 × 1, VGA In × 1, DisplayPort × 1, USB-C × 1
Serial PortRS-232 × 1
USB Ports3 × USB 2.0
USB-C Ports1 × USB-C
VGA Input1 × VGA In (with VGA audio)
Wi-FiWi-Fi 6 (pluggable module)
Power
Power Consumption300 W (standard mode)
Standby PowerUnder 0.5 W
Physical
Dimensions1701 x 979 x 94 mm
MountingWall-mounted or mobile cart
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C
VESA Mount800 x 400 mm
Weight33 kg
Downloads
Manufacturer documents for the Newline NT+ Series 75-inch 4K UHD Non-Touch Display – TT-7523NT — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the Newline TT-7523NT a touch screen?
No. The NT+ Series is a non-touch display, so it is operated with its buttons and a compatible remote control. Presenters share content wirelessly from a phone, tablet or laptop, or connect a computer to one of the rear input ports.
Can I share a screen wirelessly with the TT-7523NT?
Yes. Wireless casting works from mobile devices, tablets, desktops and laptops, including Windows, Mac and Chrome systems. Content can also be shared through the multiple input ports on the rear of the panel when a wired connection suits the room better.
Can I open files without a computer?
Yes. Files from cloud storage can be accessed on the display itself, and files on connected USB thumb drives can be opened directly from the panel. This lets presenters run a presentation from storage without bringing a laptop into the room.
What mounting options does the TT-7523NT support?
It supports wall mounting or a mobile cart. The VESA mount pattern for the 75-inch model is 800 x 400 mm, so a matching wall bracket or stand base is needed. Confirm the bracket and cart with Procure.ae before ordering to avoid installation issues.
Which ports does the TT-7523NT have?
The rear panel has three HDMI inputs, one DisplayPort input, one VGA input with audio, one USB-C port, one RJ-45 LAN input and one RS-232 port. It also has three USB 2.0 ports for USB drives and accessories, which covers most classroom and meeting room needs.
