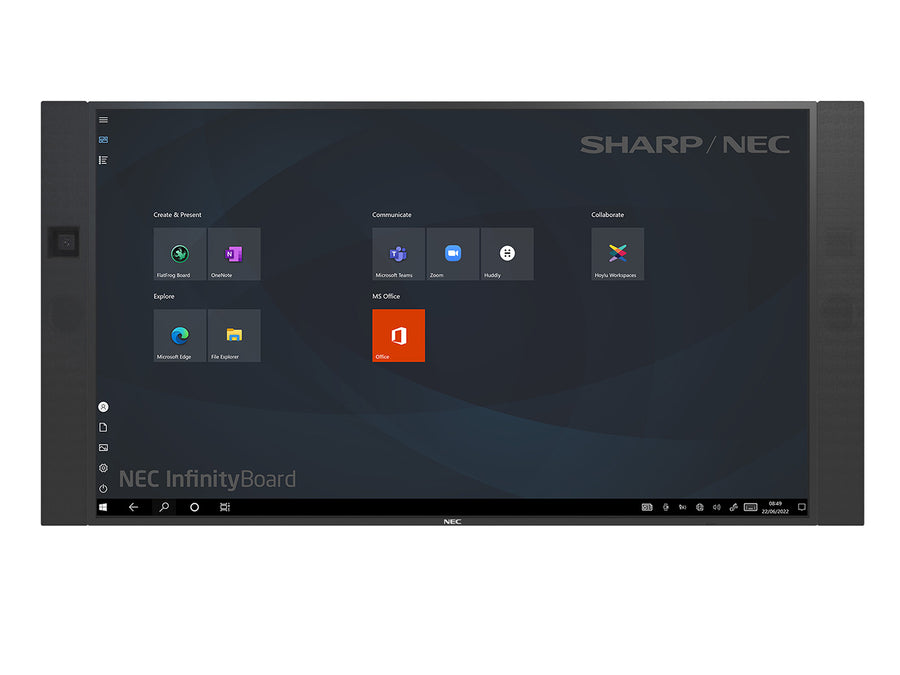

NEC InfinityBoard 2.2 86-inch Interactive Flat Panel
The NEC InfinityBoard 2.2 is a discontinued 86-inch interactive flat panel for meeting rooms and creative workspaces, with a 4K UHD IPS touch display, up to 20 touch points and a Huddly IQ camera. It includes a built-in Windows 10 Professional PC with 8 GB RAM. Procure.ae supplies NEC interactive displays in the UAE and can confirm current availability.
The InfinityBoard 2.2 uses the same 86-inch 4K UHD (3840 x 2160) IPS panel as the 2.1 model, with 500 cd/m² brightness and a typical contrast ratio of 1,200:1. Its InGlass touch layer supports up to 20 real touch points, with palm rejection, Windows Ink and touch accuracy below 1 mm. Finger, glove and stylus input work on the screen, and two passive pens are included.
The built-in PC is an Intel Core i7-7820EQ with 8 GB RAM and a 128 GB SSD, and the OPS slot and Compute Module 3 slot allow other computing options. The panel has two DisplayPort and three HDMI inputs, with a 3.5 mm audio jack, LAN and RS232 control. Mount it with 400 x 400 mm or 600 x 400 mm VESA holes. The included FlatFrog Board for Rooms software is listed with a one-year licence and a free download.
Key features
Specifications
| Controls | LAN, RS232, 3.5 mm remote control input |
| Key Features | 20-point multi-touch, 4K UHD IPS display, palm rejection, Huddly IQ camera, slot-in PC, Compute Module slot, Windows Ink, FlatFrog Board for Rooms |
| Model | 86-inch InfinityBoard 2.2 |
| Type | Interactive Flat Panel |
| What's in the Box | Display, Huddly IQ camera, OPS slot-in PC, remote control, side-mounted speakers, 2 stylus pens, cables |
| Aspect Ratio | 16:9 |
| Backlight | Edge LED |
| Bezel Size | 19.8 mm (top/bottom), 20.3 mm (left/right) |
| Brightness | 500 nits |
| Camera | Huddly IQ, 1080p at 30 fps, 3x lossless digital zoom |
| Contrast Ratio | 1,200:1 |
| Panel Technology | IPS |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms (grey-to-grey, typical) |
| Screen Size | 86 inch |
| Touch Accuracy | < 1 mm |
| Touch Points | 20-point multi-touch |
| Touch Response Time | 15 ms |
| Touch Technology | InGlass |
| Viewing Angle | 178° horizontal / 178° vertical |
| Graphics | Intel 630 integrated graphics (Gen9-LP) |
| License | FlatFrog Board for Rooms (1 year, free download) |
| Operating System | Windows 10 Professional (slot-in PC) |
| Processor | Intel Core i7-7820EQ (4 cores, up to 3.7 GHz) |
| RAM | 8 GB DDR4 |
| Storage | 128 GB SSD |
| Audio | Side-mounted speakers; 3.5 mm audio in and out |
| Expansion | Compute Module 3 slot (proprietary standard) |
| OPS Slot | Open pluggable specification (Intel OPS standard) |
| Ports | HDMI In × 3, DisplayPort In × 2, USB 3.0 × 4 (hub), USB Type-B × 1, LAN 100 Mbit × 1, RS232 × 1 |
| Wi-Fi | Dual-band 802.11ac, Bluetooth 4.2 |
| Power Consumption | 242 W (shipping) |
| Dimensions | 2192 x 1142 x 86 mm (without stand) |
| Duty Cycle | 24/7 |
| Operating Humidity | 20% to 80% RH |
| Operating Temperature | 0 to 35 °C |
| VESA Mount | 400 x 400 mm; 600 x 400 mm |
| Weight | 91.7 kg (without stand) |
| Certifications | CE, EAC, FCC, RCM, RoHS, REACH, UL/C-UL, EMC Class B |
| IP Rating | IP5x (front); IP2x (back) |
| Warranty | 3 years (including backlight) |
