MarvelVideo WallsSKU MPJ55SHX18

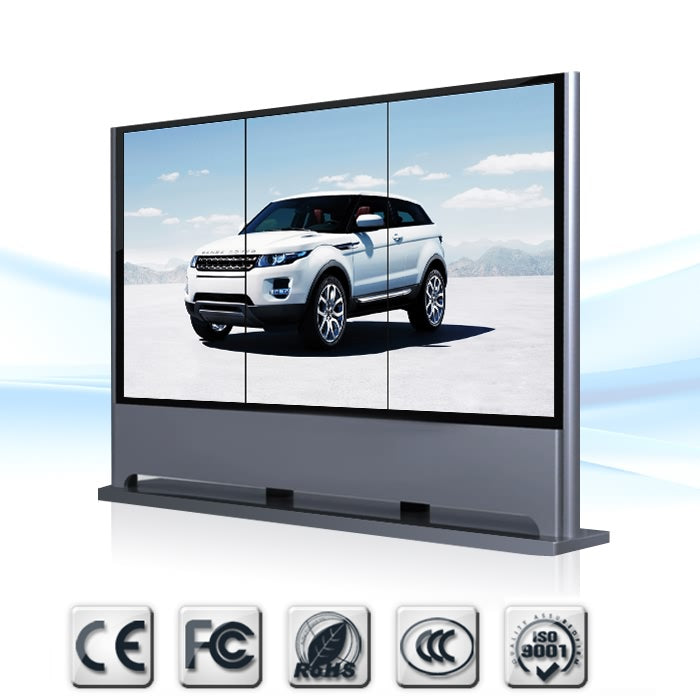

Marvel 55-inch 1.8mm 700-nit LCD Video Wall Display – MPJ55SHX18
The Marvel MPJ55SHX18 is a 55-inch LCD video wall display with a 1.8mm splice bezel, 700 nits brightness and a 3,500:1 contrast ratio. It is listed for indoor video walls where a brighter panel is needed. Procure.ae, an authorised reseller, supplies the MPJ55SHX18 across the UAE, with delivery and installation.
The MPJ55SHX18 uses a 55-inch DID LCD panel with LED backlight and a 1.8mm splice bezel, so units can be joined into one wall. Resolution is 1920 x 1080 at 16:9 with 8-bit colour, which gives 16.7 million colours. Brightness is rated at 700 nits and contrast at 3,500:1, with 89-degree horizontal and vertical viewing angles. Response time is 6 ms, and the manufacturer rates the life at more than 60,000 hours.
It suits indoor installations such as lobbies, showrooms and meeting areas, where the 700-nit rating helps in brighter rooms. Its connections are HDMI, DVI and VGA, plus S-video, composite video, an audio input and RS-232 control. Maximum power is 230 W with 3 W standby, and the weight is 3.5–4.0 kg. The manufacturer's specifications do not state VESA mounting, so Procure.ae can confirm the mounting details before a quote is issued.
Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
700 nits
Type
Video Wall Display
- 700-nit brightness
- 3,500:1 contrast ratio
- 1.8mm splice bezel
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
700-nit brightness
Rated at 700 nits for brighter indoor rooms.
02
3,500:1 contrast ratio
Higher contrast than the 1,100:1 MPJ55LHX18.
03
1.8mm splice bezel
A narrow bezel for joining units into a video wall.
04
Full HD at 16:9
1920 x 1080 resolution at a 16:9 aspect ratio.
05
89-degree viewing angle
Rated at 89 degrees horizontal and vertical.
06
6 ms response time
Response time is rated at 6 ms.
07
Multiple inputs
HDMI, DVI, VGA, S-video, composite video and audio input.
08
RS-232 control
Control signal input and loop-out on an RJ45 connector.
Specifications
23 specificationsGeneral
ApplicationIndoor
Key Features1.8 mm splice bezel, Full HD 16:9, 700 nits, 3,500:1 contrast, 89-degree viewing angle, RS-232 control
ModelMPJ55SHX18
TypeVideo Wall Display
Display
Aspect Ratio16:9
Bezel Size1.8 mm
Brightness700 nits
Color Depth8-bit (16.7M colours)
Contrast Ratio3,500:1
Display TypeLCD
Resolution1920 x 1080 (Full HD)
Response Time6 ms
Screen Size55 inch
Viewing Angle89° horizontal / 89° vertical
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI × 1, DVI × 1, VGA × 1, S-video × 1, composite video, audio input, RS-232 control
Power
Power Consumption230 W (maximum)
Standby Power3 W or less
Physical
Operating Humidity20% to 80% RH
Operating Temperature-30 to 60 °C (with air conditioning)
Weight3.5–4.0 kg
Compliance
CertificationsCE, FCC, RoHS
Country of OriginChina
Product video
Questions
Can’t find your answer? Ask on WhatsApp
What is the Marvel MPJ55SHX18?
The Marvel MPJ55SHX18 is a 55-inch LCD video wall display with 700 nits brightness, a 3,500:1 contrast ratio and a 1.8mm splice bezel. It is listed for indoor use and is designed to be joined with other units into a larger wall.
How does the MPJ55SHX18 differ from the MPJ55LHX18?
Both are 55-inch displays with a 1.8mm splice bezel, but the MPJ55SHX18 is rated at 700 nits and 3,500:1 contrast, against 500 nits and 1,100:1 for the MPJ55LHX18. Its viewing angle is 89 degrees rather than 178 degrees, so Procure.ae can confirm which suits the room.
Is the MPJ55SHX18 suitable for a brighter room?
Yes, its 700-nit rating is higher than the 500-nit MPJ55LHX18, so it is the more suitable of the two for brighter rooms. Procure.ae can confirm the right model for your lighting and viewing distance before a quote is issued.
Which connections does the MPJ55SHX18 have?
It has one HDMI connection, one DVI connection and one VGA connection, plus S-video, composite video, an audio input and RS-232 control on an RJ45 connector. Procure.ae can confirm the source connections for your setup before ordering.
Can the MPJ55SHX18 be wall-mounted?
The manufacturer's specifications do not state a VESA pattern or wall bracket for the MPJ55SHX18. Procure.ae can confirm mounting requirements, including the 3.5–4.0 kg weight and the wall or frame needed, before installation.
