Marvel 55-inch 1.8mm 700-nit LCD Video Wall Display – MPJ55SHX18 — specification sheet
Procure
Product specification sheet procure.ae · +971 4 546 5041
Marvel · MPJ55SHX18 · Video Wall

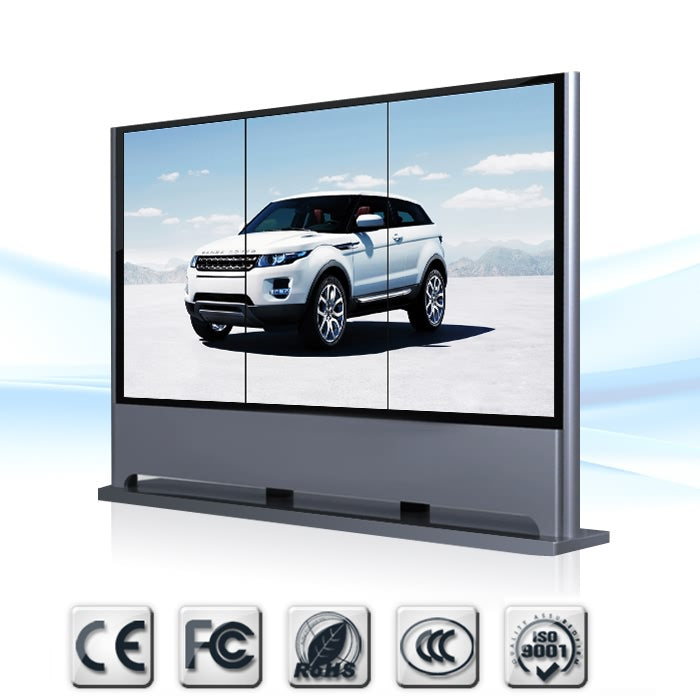

Marvel 55-inch 1.8mm 700-nit LCD Video Wall Display – MPJ55SHX18

Marvel 55-inch 1.8mm 700-nit LCD Video Wall Display – MPJ55SHX18

The Marvel MPJ55SHX18 is a 55-inch LCD video wall display with a 1.8mm splice bezel, 700 nits brightness and a 3,500:1 contrast ratio. It is listed for indoor video walls where a brighter panel is needed. Procure.ae, an authorised reseller, supplies the MPJ55SHX18 across the UAE, with delivery and installation.

The MPJ55SHX18 uses a 55-inch DID LCD panel with LED backlight and a 1.8mm splice bezel, so units can be joined into one wall. Resolution is 1920 x 1080 at 16:9 with 8-bit colour, which gives 16.7 million colours. Brightness is rated at 700 nits and contrast at 3,500:1, with 89-degree horizontal and vertical viewing angles. Response time is 6 ms, and the manufacturer rates the life at more than 60,000 hours.

It suits indoor installations such as lobbies, showrooms and meeting areas, where the 700-nit rating helps in brighter rooms. Its connections are HDMI, DVI and VGA, plus S-video, composite video, an audio input and RS-232 control. Maximum power is 230 W with 3 W standby, and the weight is 3.5–4.0 kg. The manufacturer's specifications do not state VESA mounting, so Procure.ae can confirm the mounting details before a quote is issued.

Screen Size
55 inch
Resolution
1920 x 1080 (Full HD)
Brightness
700 nits
Type
Video Wall Display
Weight
3.5–4.0 kg

Key features

01
700-nit brightness
Rated at 700 nits for brighter indoor rooms.
02
3,500:1 contrast ratio
Higher contrast than the 1,100:1 MPJ55LHX18.
03
1.8mm splice bezel
A narrow bezel for joining units into a video wall.
04
Full HD at 16:9
1920 x 1080 resolution at a 16:9 aspect ratio.
05
89-degree viewing angle
Rated at 89 degrees horizontal and vertical.
06
6 ms response time
Response time is rated at 6 ms.
07
Multiple inputs
HDMI, DVI, VGA, S-video, composite video and audio input.
08
RS-232 control
Control signal input and loop-out on an RJ45 connector.

Specifications

General
ApplicationIndoor
Key Features1.8 mm splice bezel, Full HD 16:9, 700 nits, 3,500:1 contrast, 89-degree viewing angle, RS-232 control
ModelMPJ55SHX18
TypeVideo Wall Display
Display
Aspect Ratio16:9
Bezel Size1.8 mm
Brightness700 nits
Color Depth8-bit (16.7M colours)
Contrast Ratio3,500:1
Display TypeLCD
Resolution1920 x 1080 (Full HD)
Response Time6 ms
Screen Size55 inch
Viewing Angle89° horizontal / 89° vertical
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI × 1, DVI × 1, VGA × 1, S-video × 1, composite video, audio input, RS-232 control
Power
Power Consumption230 W (maximum)
Standby Power3 W or less
Physical
Operating Humidity20% to 80% RH
Operating Temperature-30 to 60 °C (with air conditioning)
Weight3.5–4.0 kg
Compliance
CertificationsCE, FCC, RoHS
Country of OriginChina
QR code to Marvel 55-inch 1.8mm 700-nit LCD Video Wall Display – MPJ55SHX18 on procure.ae
Get our best price for this product
Scan to open it on procure.ae, or contact the Procure sales team:
☎ +971 4 546 5041  ·  WhatsApp  ·  ✉ info@procure.ae  ·  🔗 View product page

This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.

Specifications are provided by the manufacturer and may change without notice.

Pricing is quote-based. Contact Procure for current pricing and availability.

Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
