LGVideo WallsSKU 65EV5E-2

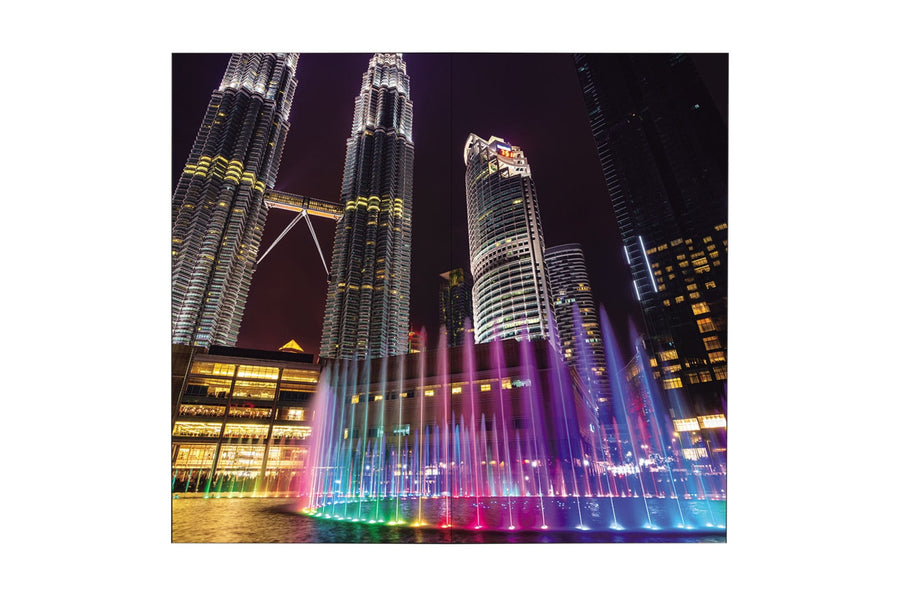

LG EV5E Series 65-inch 4K UHD OLED Video Wall Display – 65EV5E-2
The LG 65EV5E-2 is a 65-inch 4K UHD OLED video wall display from the LG EV5E Series, for video walls and digital signage in commercial spaces. It has a 3,840 x 2,160 resolution and a 1.2 mm even bezel, and it is offered in 1x2 and 1x3 sets. Procure.ae can confirm availability of the LG 65EV5E-2 across the UAE.
The 65EV5E-2 uses a 65-inch OLED panel at 3,840 x 2,160 (UHD) resolution. Brightness is rated at 400 nits at APL 25% and 150 nits at APL 100%. Inputs are HDMI, DisplayPort and two USB 2.0 ports, with DisplayPort and audio outputs. Its even bezel is 1.2 mm, and the manufacturer lists a 6.7 mm on-bezel seam. The 1x2 set measures 1,634.6 x 1,446.7 x 7.9 mm and weighs 29.4 kg, while the 1x3 set measures 2,445.4 mm wide and weighs 44.5 kg. Operating temperature is 0 to 40 °C.
The 65EV5E-2 is supplied with fixer screws, anchor bolts, polyester tapes and panel jigs for wall installation, and the signage box connects to the panel with FFC cables. External control is available through RS232C In/Out, RJ45 LAN In/Out and IR In. Content is managed with SuperSign CMS, and units can be monitored with SuperSign Control+ or SuperSign Control. An external media player can be attached, but the manufacturer lists the model as not OPS compatible.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
150 nits (APL 100%) / 400 nits (APL...
Type
OLED Video Wall Display
- OLED UHD panel
- Even bezel
- 1x2 and 1x3 sets
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
OLED UHD panel
65-inch OLED panel with 3,840 x 2,160 native resolution.
02
Even bezel
1.2 mm even bezel with a 6.7 mm on-bezel seam for tiled walls.
03
1x2 and 1x3 sets
two configurations, with the 1x3 set measuring 2,445.4 mm wide.
04
Brightness rating
400 nits at APL 25% and 150 nits at APL 100%.
05
Inputs and outputs
HDMI, DisplayPort and two USB 2.0 inputs, with DisplayPort and audio outputs.
06
Network control
RS232C In/Out, RJ45 LAN In/Out and IR In.
07
SuperSign software
SuperSign CMS for content, SuperSign Control+ or Control for monitoring.
08
Wall installation kit
fixer screws, anchor bolts, polyester tapes and panel jigs included.
Specifications
19 specificationsGeneral
ApplicationVideo walls, digital signage
Key FeaturesOLED panel, 4K UHD 3840 x 2160, 1.2 mm even bezel, 1x2 and 1x3 sets, SuperSign CMS, SuperSign Control+, external media player attachable
Model65EV5E-2
TypeOLED Video Wall Display
What's in the BoxRemote controller, power cord, IR receiver, RS232 cable, DP cable, LAN cable, LC cable, fixer screws, anchor bolts, polyester tapes, panel jigs
Display
Bezel Size1.2 mm (even); off-bezel 9.1 mm (T/B), 8.7 mm (L), 11.6 mm (R)
Brightness150 nits (APL 100%) / 400 nits (APL 25%)
Panel TechnologyOLED
Resolution3840 x 2160 (4K UHD)
Screen Size65 inch
Connectivity
ConnectivityRS232C In/Out, RJ45 LAN In/Out, IR In
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI In, DisplayPort In, USB 2.0 × 2, DisplayPort Out, Audio Out, RS232C In/Out, RJ45 LAN In/Out, IR In
Physical
Dimensions1634.6 x 1446.7 x 7.9 mm (1x2 set)
Operating Humidity10% to 80% RH
Operating Temperature0 to 40 °C
Shipping Weight69.6 kg (1x2 set, packed on pallet)
Weight29.4 kg (1x2 set)
Compliance
CertificationsIEC 60950-1, EN 60950-1, UL 60950-1, FCC Class A, CE, KC
Downloads
Manufacturer documents for the LG EV5E Series 65-inch 4K UHD OLED Video Wall Display – 65EV5E-2 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the LG 65EV5E-2 a 4K display?
Yes. Each 65-inch OLED panel has a native resolution of 3,840 x 2,160 (UHD) and a brightness rating of 400 nits at APL 25% and 150 nits at APL 100%, as listed in the manufacturer's specifications.
How large is an LG 65EV5E-2 video wall set?
The model is supplied as a 1x2 or 1x3 set. The 1x2 set measures 1,634.6 x 1,446.7 x 7.9 mm and weighs 29.4 kg, while the 1x3 set measures 2,445.4 x 1,446.7 x 7.9 mm and weighs 44.5 kg. Check the wall space against the set you choose before ordering.
Can the LG 65EV5E-2 be used in a video wall?
Yes. Its 1.2 mm even bezel suits tiled video walls, and the 1x2 and 1x3 set options cover different wall widths. Units can be controlled through RS232C In/Out, RJ45 LAN In/Out or IR In, and managed with SuperSign Control+ or SuperSign Control software.
What mounting is included with the LG 65EV5E-2?
The package includes fixer screws, anchor bolts, polyester tapes and panel jigs for installation. FFC cables connect the panel to the signage box. The manufacturer's specifications do not state a VESA mounting pattern for this model, so installers should confirm the wall fixing method on site.
Does the LG 65EV5E-2 support an OPS computer module?
No. The manufacturer lists the 65EV5E-2 as not OPS compatible. An external media player can be attached instead, alongside the HDMI, DisplayPort and USB 2.0 inputs listed in the specifications.
Can I buy the LG 65EV5E-2 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
