HikvisionVideo WallsSKU DS-C66S-PWR

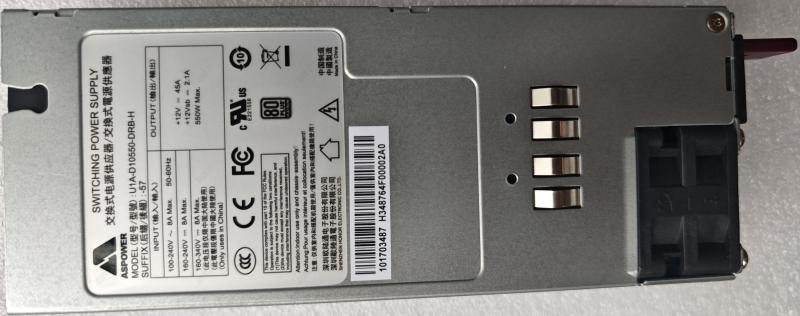

Hikvision C66S Redundant Power Supply Module – DS-C66S-PWR
The Hikvision DS-C66S-PWR is a CRPS redundant power supply module for the 12-slot C66S video wall chassis. It delivers 550 W output from a 100 to 240 V AC input at 50/60 Hz, with overcurrent protection. Procure.ae supplies the DS-C66S-PWR across the UAE for video wall controller systems.
The module provides 550 W of output power to the chassis. It accepts 100 to 240 V AC at 50/60 Hz, with a maximum working current of 5.5 A, and supports overcurrent protection. The manufacturer describes it as a CRPS universal redundant power module for the 12-slot chassis. The module has one power interface, and the chassis's listed device power consumption is also 550 W.
Type
Redundant Power Supply Module
- Output Power
- Wide Input Range
- Working Current
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Output Power
550 W output for the chassis.
02
Wide Input Range
accepts 100 to 240 V AC at 50/60 Hz.
03
Working Current
5.5 A maximum working current.
04
Redundant Design
CRPS universal redundant power module for the 12-slot chassis.
05
Overcurrent Protection
overcurrent protection is supported.
Specifications
7 specificationsGeneral
Compatibility12-slot C66S chassis (DS-C66S-S12)
Key FeaturesCRPS universal redundant module, 550 W output, 5.5 A maximum working current, overcurrent protection, 100 to 240 V AC input
ModelDS-C66S-PWR
TypeRedundant Power Supply Module
Audio
Power Output550 W
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsPower Interface × 1
Downloads
Manufacturer documents for the Hikvision C66S Redundant Power Supply Module – DS-C66S-PWR — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which chassis does the DS-C66S-PWR fit?
The manufacturer's specifications describe this module for the 12-slot C66S chassis, the DS-C66S-S12. They do not state compatibility with the 6-slot DS-C66S-S6, so confirm that with Procure.ae before ordering a module for a 6-slot system.
What input voltage does it need?
It runs from 100 to 240 V AC at 50/60 Hz, with a maximum working current of 5.5 A, and the module has one power interface. Confirm the supply and total load for the full system with Procure.ae before installation.
How much power does it provide?
It provides 550 W of output power, with overcurrent protection supported. The chassis's listed device power consumption is also 550 W, which matches the module's output rating. Procure.ae can confirm the module's current availability and quote it with the chassis.
Can I buy the DS-C66S-PWR in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
