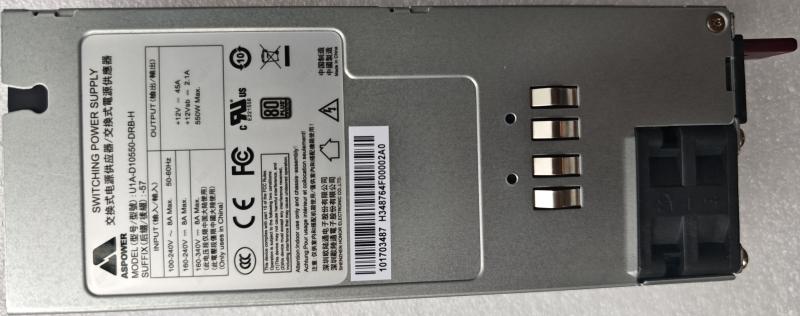

Hikvision C66S Redundant Power Supply Module – DS-C66S-PWR
The Hikvision DS-C66S-PWR is a CRPS redundant power supply module for the 12-slot C66S video wall chassis. It delivers 550 W output from a 100 to 240 V AC input at 50/60 Hz, with overcurrent protection. Procure.ae supplies the DS-C66S-PWR across the UAE for video wall controller systems.
The module provides 550 W of output power to the chassis. It accepts 100 to 240 V AC at 50/60 Hz, with a maximum working current of 5.5 A, and supports overcurrent protection. The manufacturer describes it as a CRPS universal redundant power module for the 12-slot chassis. The module has one power interface, and the chassis's listed device power consumption is also 550 W.
Key features
Specifications
| Compatibility | 12-slot C66S chassis (DS-C66S-S12) |
| Key Features | CRPS universal redundant module, 550 W output, 5.5 A maximum working current, overcurrent protection, 100 to 240 V AC input |
| Model | DS-C66S-PWR |
| Type | Redundant Power Supply Module |
| Power Output | 550 W |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Ports | Power Interface × 1 |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
