HikvisionVideo WallsSKU DS-C66S-S6

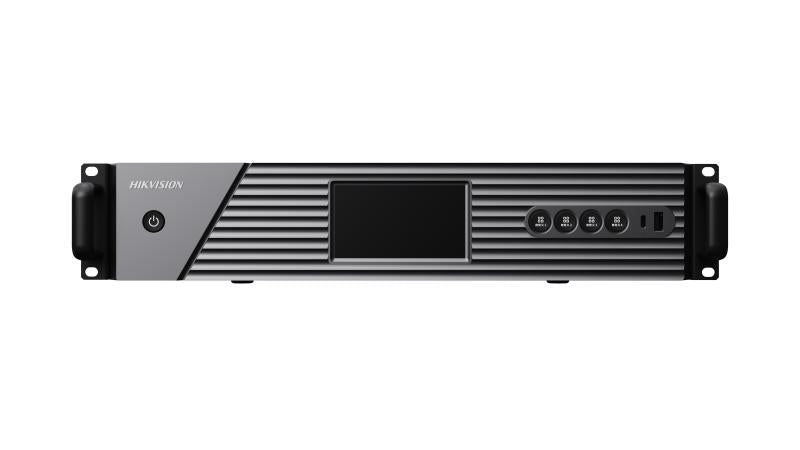

Hikvision C66S 6-Slot Video Wall Controller Chassis – DS-C66S-S6
The Hikvision DS-C66S-S6 is a 2U rack-mounted chassis with six slots for the C66S video wall controller range. The slots take mixed input and output boards, and the chassis supports up to 8 video walls with 1, 4, 6, 8, 9 and 16 window division. Procure.ae supplies the DS-C66S-S6 in the UAE.
The 2U chassis has six slots that support mixed installation of input and output boards. Up to sixteen 4K signal inputs can be fused, and frame synchronization keeps all outputs synchronized without tearing or seams. The 2K sub-board supports four 1080P60 outputs and the 4K sub-board supports two 4K outputs, with output compatible with LCD and LED displays. Processing depth is 8/10-bit, with sampling up to RGB 10:10:10.
Install the chassis in a rack, populated with whichever input and output boards the wall requires. Control runs over one 1000 Mbps Ethernet port with SDK, RTSP and ONVIF protocols, and a 4.5-inch touch LCD on the front shows chassis and sub-board status. Compared with the 12-slot DS-C66S-S12, this model is 2U instead of 4U, has six slots instead of twelve, draws 240 W instead of 550 W, and has a 4.5-inch screen. The 550 W DS-C66S-PWR module is described for the 12-slot chassis, so check power options before ordering.
Type
Video Wall Controller Chassis
Weight
8.8 kg
- Mixed Slot Layout
- Hot Swapping
- Frame Synchronization
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Mixed Slot Layout
six slots support mixed input and output boards.
02
Hot Swapping
service boards are hot-swappable for easy maintenance.
03
Frame Synchronization
outputs stay synchronized without stuttering, frame loss, tearing or seams.
04
Input Fusion
accommodates up to sixteen 4K signal inputs.
05
Window Division
supports 1, 4, 6, 8, 9 and 16 windows.
06
Control Protocols
SDK, RTSP and ONVIF over 1000 Mbps Ethernet.
07
Front Panel Display
4.5-inch touch LCD for chassis and sub-board status.
Specifications
24 specificationsGeneral
Controls2 custom scene buttons, 2 scene switch buttons
Key Features6 slots for mixed input and output boards, hot-swappable boards, frame synchronization, window division 1/4/6/8/9/16, up to 8 video walls
ModelDS-C66S-S6
TypeVideo Wall Controller Chassis
What's in the Box1 × AC power cord, 1 × regulatory compliance and safety information manual
Display
Color Depth8/10-bit, up to RGB 10:10:10
Display4.5-inch touch IPS LCD, 480 x 854
Audio
Audio In2 × 3.5 mm
Audio Out2 × 3.5 mm
Connectivity
Ethernet1 × 1000 Mbps RJ-45
Input Voltage100–240 V AC, 50/60 Hz
InputsUp to 6 input slots
OutputsOutput boards share the same 6 slots
PortsRJ-45 Ethernet × 1, USB 2.0 × 2, USB-C × 1, Genlock in × 1, Genlock loop-through × 1
ProtocolsSDK, RTSP, ONVIF
Serial PortRS-232/485
Power
Power Consumption240 W
Physical
Dimensions442 x 88.1 x 385 mm
Form Factor2U rack-mount chassis
Operating Humidity10% to 90% RH, no condensation
Operating Temperature0 to 50 °C
Rack Units2 U
Shipping Weight11.75 kg
Weight8.8 kg
Downloads
Manufacturer documents for the Hikvision C66S 6-Slot Video Wall Controller Chassis – DS-C66S-S6 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How many slots does the DS-C66S-S6 have, and what can they hold?
It has six slots that support mixed installation of input and output boards, and the manufacturer lists up to 6 input slots. A single chassis can therefore carry both the sources and the outputs for one wall, within those six slots.
Does it support LED screens?
Yes. Output is compatible with LCD and LED displays. The LED controller board supports mini loading at 0.65 MP per network port and standard loading at 2.925 MP per network port, and standard loading needs a screen that supports it.
What is the maximum input capacity?
The chassis accommodates up to sixteen 4K ultra-high-definition signal inputs for ultra-high-resolution fusion. Input compatibility includes DVI, HDMI, HDMI 4K, DP 4K and SDI signals, and custom input resolutions can be set.
What power does it need?
It runs on 100 to 240 V AC at 50/60 Hz, with a listed device power consumption of 240 W. The 550 W DS-C66S-PWR module is described for the 12-slot chassis, so confirm the power option for a 6-slot system with Procure.ae before ordering.
