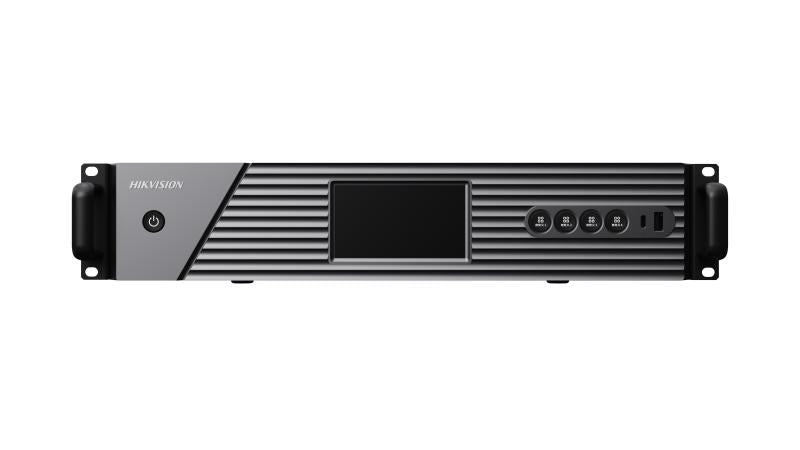

Hikvision C66S 6-Slot Video Wall Controller Chassis – DS-C66S-S6

The Hikvision DS-C66S-S6 is a 2U rack-mounted chassis with six slots for the C66S video wall controller range. The slots take mixed input and output boards, and the chassis supports up to 8 video walls with 1, 4, 6, 8, 9 and 16 window division. Procure.ae supplies the DS-C66S-S6 in the UAE.

The 2U chassis has six slots that support mixed installation of input and output boards. Up to sixteen 4K signal inputs can be fused, and frame synchronization keeps all outputs synchronized without tearing or seams. The 2K sub-board supports four 1080P60 outputs and the 4K sub-board supports two 4K outputs, with output compatible with LCD and LED displays. Processing depth is 8/10-bit, with sampling up to RGB 10:10:10.

Install the chassis in a rack, populated with whichever input and output boards the wall requires. Control runs over one 1000 Mbps Ethernet port with SDK, RTSP and ONVIF protocols, and a 4.5-inch touch LCD on the front shows chassis and sub-board status. Compared with the 12-slot DS-C66S-S12, this model is 2U instead of 4U, has six slots instead of twelve, draws 240 W instead of 550 W, and has a 4.5-inch screen. The 550 W DS-C66S-PWR module is described for the 12-slot chassis, so check power options before ordering.
