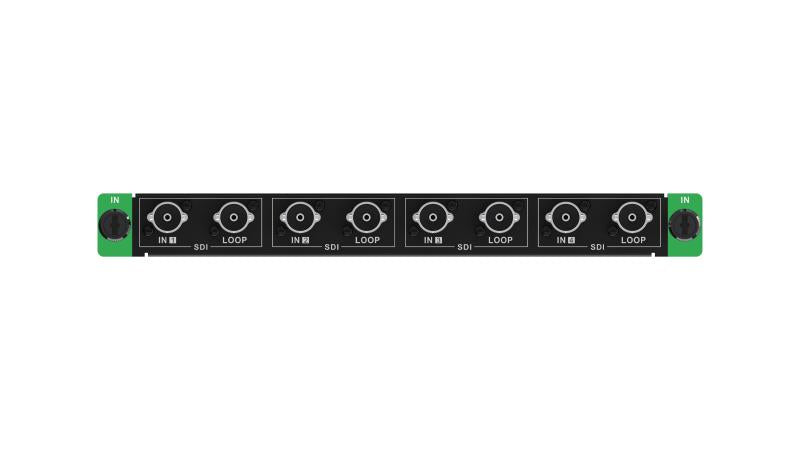

Hikvision C66S 4-Channel 12G-SDI Input Board – DS-C66S-04SDI/4K
The Hikvision DS-C66S-04SDI/4K is a 4-channel 12G-SDI input board for the C66S video wall controller range. It accepts 4K inputs with HDR10 and HLG support, backward-compatible 6G and 3G SDI signals, and four loop-through outputs. Procure.ae supplies the DS-C66S-04SDI/4K in the UAE for video wall projects.
The board takes four 12G-SDI inputs with a maximum input resolution of 4K. It supports ST-2082 (12G), ST-2081 (6G), ST-424 (3G) and ST-292 (HD) video input, and 3G-Level A and Level B in DS mode. HDR10 is compliant with SMPTE ST 2084 and SMPTE ST 2086, and HLG is also supported. Four in-band audio inputs run in dual-channel format. Each SDI input has a loop-through output, so one source can also feed another device.
Fit the board in a C66S chassis with the other input and output boards. The DS-C66S-S12 12-slot chassis takes up to six input boards, and the 6-slot DS-C66S-S6 supports mixed installation. The chassis is managed over Ethernet with SDK, RTSP and ONVIF protocols. Compared with the DS-C66S-04HI, this board handles 4K and HDR signals over 12G-SDI, where the HDMI board is limited to 1080P over HDMI 1.4.
Resolution
3840 x 2160 (4K UHD)
Type
Video Wall Input Board
- 12G-SDI Inputs
- 4K Maximum Input
- HDR Support
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
12G-SDI Inputs
four 12G-SDI inputs with backward compatibility to 6G and 3G SDI.
02
4K Maximum Input
maximum input resolution of 4K.
03
HDR Support
HDR10 compliant with SMPTE ST 2084 and ST 2086, plus HLG.
04
Loop-Through Outputs
four loop-through outputs alongside the four SDI inputs.
05
Dual-Channel Audio
four in-band audio inputs in dual-channel format.
06
3G Level Support
3G-Level A and Level B supported in DS mode.
07
Standards Coverage
ST-2082, ST-2081, ST-424 and ST-292 video input.
Specifications
8 specificationsGeneral
Key Features4 × 12G-SDI inputs, 4K maximum input, HDR10 and HLG, 4 loop-through outputs, dual-channel audio, 12G/6G/3G/HD SDI standards
ModelDS-C66S-04SDI/4K
TypeVideo Wall Input Board
Display
Resolution3840 x 2160 (4K UHD)
Audio
Audio In4 × in-band audio, dual channel
Connectivity
Connector Type12G-SDI
Inputs4 × 12G-SDI
Ports12G-SDI In × 4, SDI Loop-Through × 4
Downloads
Manufacturer documents for the Hikvision C66S 4-Channel 12G-SDI Input Board – DS-C66S-04SDI/4K — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the DS-C66S-04SDI/4K accept 4K signals?
Yes. The maximum input resolution is 4K, using 12G-SDI under ST-2082. The board also accepts 6G (ST-2081), 3G (ST-424) and HD (ST-292) video, so older SDI sources can be connected as well.
Does it support HDR content?
Yes. The board is HDR10 compliant under SMPTE ST 2084 and SMPTE ST 2086, and it also supports HLG. These are the HDR standards the manufacturer lists, so HDR sources can be routed through its four SDI inputs.
Can a source be passed on to another device?
Yes. Each of the four SDI inputs has a matching loop-through output, giving four loop-through outputs in total. That lets one source feed the video wall while also feeding another device connected to the loop-through port.
