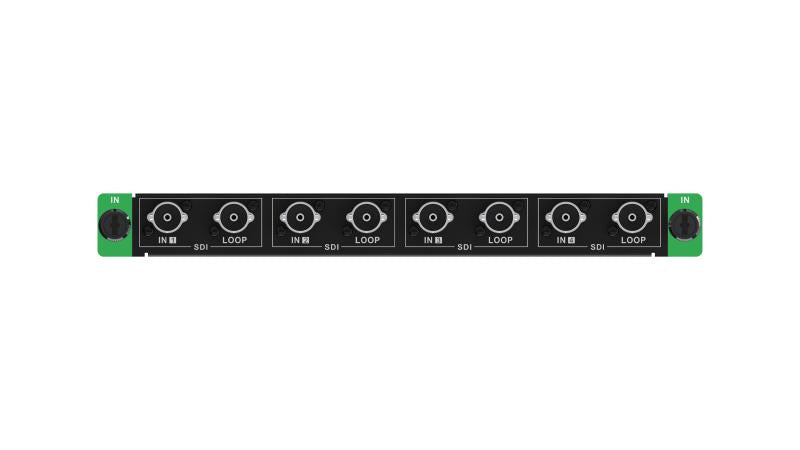

Hikvision C66S 4-Channel 12G-SDI Input Board – DS-C66S-04SDI/4K
The Hikvision DS-C66S-04SDI/4K is a 4-channel 12G-SDI input board for the C66S video wall controller range. It accepts 4K inputs with HDR10 and HLG support, backward-compatible 6G and 3G SDI signals, and four loop-through outputs. Procure.ae supplies the DS-C66S-04SDI/4K in the UAE for video wall projects.
The board takes four 12G-SDI inputs with a maximum input resolution of 4K. It supports ST-2082 (12G), ST-2081 (6G), ST-424 (3G) and ST-292 (HD) video input, and 3G-Level A and Level B in DS mode. HDR10 is compliant with SMPTE ST 2084 and SMPTE ST 2086, and HLG is also supported. Four in-band audio inputs run in dual-channel format. Each SDI input has a loop-through output, so one source can also feed another device.
Fit the board in a C66S chassis with the other input and output boards. The DS-C66S-S12 12-slot chassis takes up to six input boards, and the 6-slot DS-C66S-S6 supports mixed installation. The chassis is managed over Ethernet with SDK, RTSP and ONVIF protocols. Compared with the DS-C66S-04HI, this board handles 4K and HDR signals over 12G-SDI, where the HDMI board is limited to 1080P over HDMI 1.4.
Key features
Specifications
| Key Features | 4 × 12G-SDI inputs, 4K maximum input, HDR10 and HLG, 4 loop-through outputs, dual-channel audio, 12G/6G/3G/HD SDI standards |
| Model | DS-C66S-04SDI/4K |
| Type | Video Wall Input Board |
| Resolution | 3840 x 2160 (4K UHD) |
| Audio In | 4 × in-band audio, dual channel |
| Connector Type | 12G-SDI |
| Inputs | 4 × 12G-SDI |
| Ports | 12G-SDI In × 4, SDI Loop-Through × 4 |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
