HikvisionVideo WallsSKU DS-C30S-S23

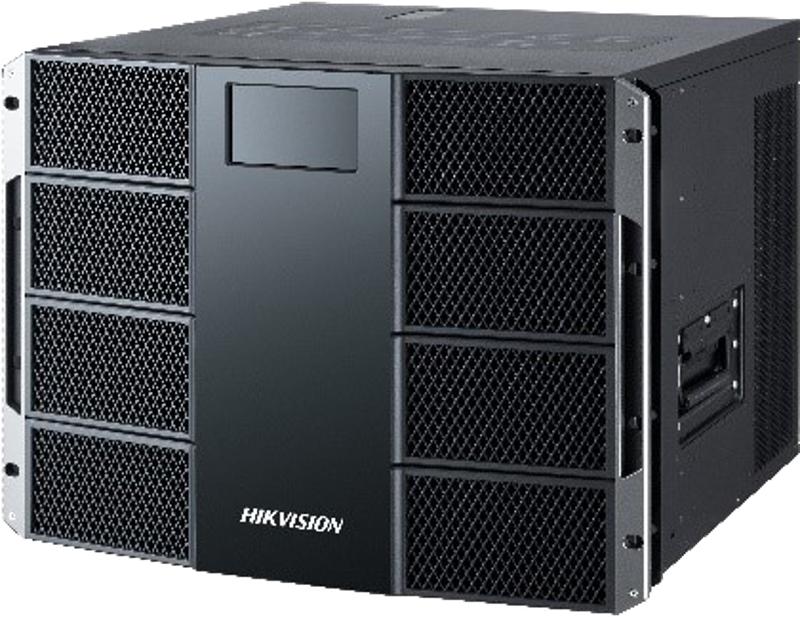

Hikvision 8U Video Wall Controller Chassis – DS-C30S-S23
The Hikvision DS-C30S-S23 is an 8U video wall chassis with 22 input and 22 output slots for hot-swappable service boards, redundant power and dual-device hot backup. It supports 4K HDMI and DisplayPort inputs, YUV 4:4:4 sampling and up to 8 video walls. Procure.ae supplies the DS-C30S-S23 across the UAE.
The DS-C30S-S23 (also listed as DS-C30S-S23(V2)) is an 8U standard rack chassis built on an operational-grade ATCA design. It has 22 input and 22 output slots, six intelligent fans, redundant power supplies and two main control boards. Dual-device hot backup is supported. The chassis accepts VGA, DVI, HDMI, 4K HDMI and 4K DP sources, plus network sources such as network cameras and NVRs, and outputs DVI, HDMI and 4K HDMI video. A 4.3-inch non-touch screen shows device status.
Use the chassis where a Hikvision video wall needs many input and output boards in one 8U unit, such as control rooms and large multi-screen installations. Mixed installation of service boards is supported, and frame synchronization keeps all output ports in step. Management uses two 10/100/1000 Mbps Ethernet ports, and the chassis supports SDK, RTSP and ONVIF protocols. Procure.ae can advise on board selection and rack layout.
Type
Video Wall Controller Chassis
Weight
≤ 57.54 kg (net, full configuration)
- 8U Rack Chassis
- 22 Input and Output Slots
- Redundant Power
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
8U Rack Chassis
Operational-grade ATCA chassis in a standard 8U rack design.
02
22 Input and Output Slots
22 input and 22 output slots for hot-swappable service boards.
03
Redundant Power
Redundant power supplies and six intelligent fans for temperature control.
04
Dual-Device Hot Backup
Supports dual-device hot backup for continuous control.
05
Frame Synchronization
Keeps the images of all output ports synchronized, without tearing or seams.
06
4K Signal Inputs
Supports VGA, DVI, HDMI, 4K HDMI and 4K DP signal input.
07
Status Screen
4.3-inch non-touch screen shows device status information.
Specifications
14 specificationsGeneral
Key Features22 input and 22 output slots, hot-swappable service boards, redundant power, dual-device hot backup, YUV 4:4:4 sampling, up to 8 video walls
ModelDS-C30S-S23
TypeVideo Wall Controller Chassis
Display
Display4.3-inch non-touch status screen, 480 x 272
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
InputsVGA, DVI, HDMI, 4K HDMI, 4K DP, network cameras, NVRs
PortsEthernet 10/100/1000 Mbps x 2, console (RJ-45) x 2, RS-485/RS-232 x 1, USB 2.0 x 2
ProtocolsSDK, RTSP, ONVIF
Power
Power Consumption≤ 1000 W (full configuration)
Physical
Dimensions442 x 354.8 x 447 mm
Operating Humidity10% to 90% RH
Operating Temperature0 to 50 °C
Rack Units8U
Weight≤ 57.54 kg (net, full configuration)
Downloads
Manufacturer documents for the Hikvision 8U Video Wall Controller Chassis – DS-C30S-S23 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the DS-C30S-S23?
It is an 8U rack chassis for Hikvision video wall controller service boards. It provides 22 input and 22 output slots, redundant power, dual-device hot backup and support for up to 8 video walls.
Does it support 4K input?
Yes. The chassis accepts 4K HDMI and 4K DP signal sources and supports up to sixteen 4K UHD signal inputs. It also accepts VGA and DVI sources, along with network cameras and NVRs.
What are the dimensions and weight?
The chassis measures 442 x 354.8 x 447 mm (W x H x D). The net weight is up to 57.54 kg in full configuration, including the chassis and its service boards.
What power and environment does it need?
It runs on 100 to 240 V AC, 50/60 Hz, and draws up to 1000 W in full configuration. The operating temperature is 0 to 50 °C at 10 to 90% humidity.
