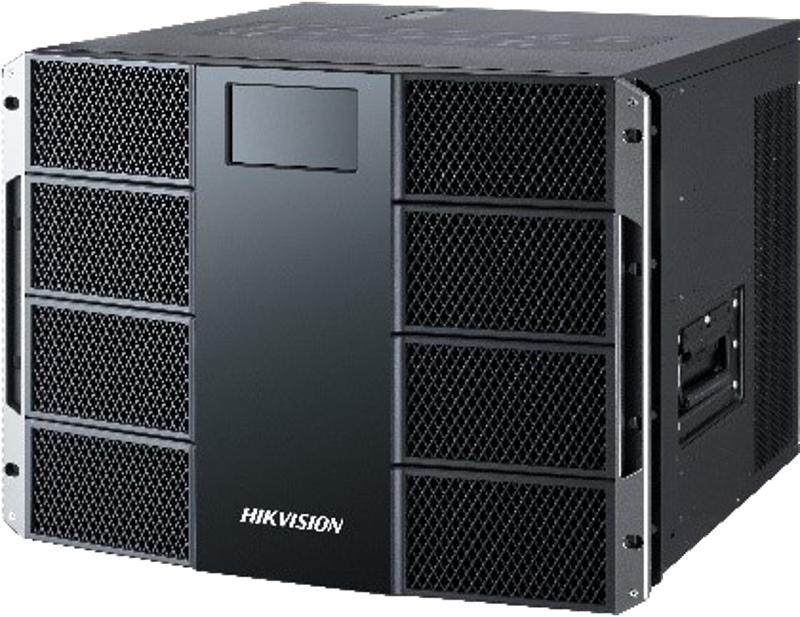

Hikvision 8U Video Wall Controller Chassis – DS-C30S-S23
The Hikvision DS-C30S-S23 is an 8U video wall chassis with 22 input and 22 output slots for hot-swappable service boards, redundant power and dual-device hot backup. It supports 4K HDMI and DisplayPort inputs, YUV 4:4:4 sampling and up to 8 video walls. Procure.ae supplies the DS-C30S-S23 across the UAE.
The DS-C30S-S23 (also listed as DS-C30S-S23(V2)) is an 8U standard rack chassis built on an operational-grade ATCA design. It has 22 input and 22 output slots, six intelligent fans, redundant power supplies and two main control boards. Dual-device hot backup is supported. The chassis accepts VGA, DVI, HDMI, 4K HDMI and 4K DP sources, plus network sources such as network cameras and NVRs, and outputs DVI, HDMI and 4K HDMI video. A 4.3-inch non-touch screen shows device status.
Use the chassis where a Hikvision video wall needs many input and output boards in one 8U unit, such as control rooms and large multi-screen installations. Mixed installation of service boards is supported, and frame synchronization keeps all output ports in step. Management uses two 10/100/1000 Mbps Ethernet ports, and the chassis supports SDK, RTSP and ONVIF protocols. Procure.ae can advise on board selection and rack layout.
Key features
Specifications
| Key Features | 22 input and 22 output slots, hot-swappable service boards, redundant power, dual-device hot backup, YUV 4:4:4 sampling, up to 8 video walls |
| Model | DS-C30S-S23 |
| Type | Video Wall Controller Chassis |
| Display | 4.3-inch non-touch status screen, 480 x 272 |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| Inputs | VGA, DVI, HDMI, 4K HDMI, 4K DP, network cameras, NVRs |
| Ports | Ethernet 10/100/1000 Mbps x 2, console (RJ-45) x 2, RS-485/RS-232 x 1, USB 2.0 x 2 |
| Protocols | SDK, RTSP, ONVIF |
| Power Consumption | ≤ 1000 W (full configuration) |
| Dimensions | 442 x 354.8 x 447 mm |
| Operating Humidity | 10% to 90% RH |
| Operating Temperature | 0 to 50 °C |
| Rack Units | 8U |
| Weight | ≤ 57.54 kg (net, full configuration) |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
Pricing is quote-based. Contact Procure for current pricing and availability.
Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
