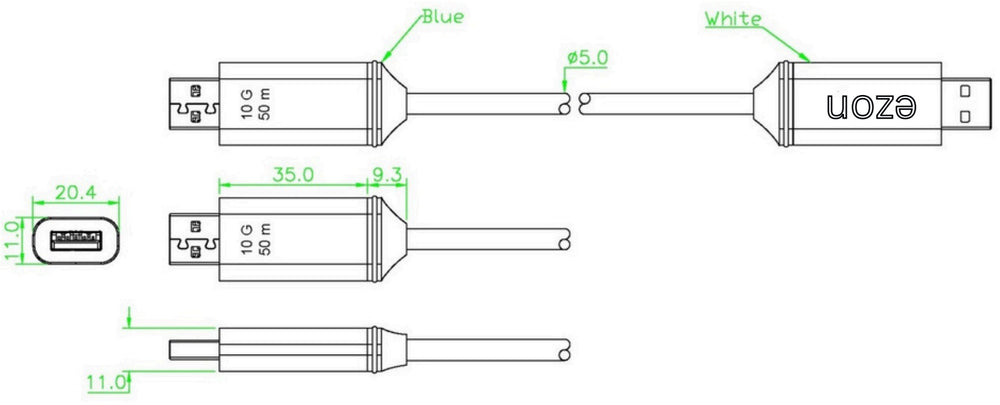

eZon USB 3.x Gen2 Active Optical Cable - Technical DiagrameZon
SKU EZON-UPSS-015M

eZon USB 3.x Gen2 Active Optical Cable, 10Gbps

The eZon USB 3.x Gen2 active optical cable is a 10Gbps, plenum-rated USB extension cable available from Procure.ae in the UAE.

This is a USB 3.x Gen2 active optical cable (AOC) that carries USB signal at up to 10Gbps over distances well beyond what a standard copper USB cable can reach. It uses directional USB-A connectors, a blue-shelled connector for the host/computer end and a white-shelled connector for the client/device end, with active optical circuitry built into the connector housings and no external power supply needed. It also carries a plenum rating, giving it a smaller cable diameter suited to routing through air-handling spaces.

It is used to extend high-speed USB 3.x connections, such as cameras, capture devices, storage or AV control interfaces, well beyond the roughly 3-5m practical limit of passive copper USB cables, in control rooms, AV racks, broadcast setups and data centres. It is supplied in 10m and 15m lengths for UAE and GCC AV and IT integration projects that need long-distance USB links without adding a network-based extender.

Type
USB 3.x Gen2 Active Optical Cable (...
  • USB 3.x Gen2 performance
  • Active optical construction
  • Directional connectors
Price
On request · best price
1
WhatsApp Call
Download spec sheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
USB 3.x Gen2 performance
rated for up to 10Gbps data transfer
02
Active optical construction
optical fibre core with active electronics in the connector housings, needing no external power
03
Directional connectors
blue-shelled connector for the host/computer end, white-shelled connector for the client/device end
04
Plenum-rated jacket
smaller cable diameter suited to air-handling space and enclosed cable routes
05
EMI/RFI immunity
the optical link is unaffected by electromagnetic or radio-frequency interference along the run
06
Long-distance USB extension
extends USB 3.x well beyond standard copper cable length limits
07
Available in 10m and 15m lengths
sized for AV rack, control-room and broadcast cable runs

Specifications

10 specifications
General
ApplicationLong-distance USB 3.x extension for cameras, capture devices, storage, AV control
ModelEZON-UPSS-015M
TypeUSB 3.x Gen2 Active Optical Cable (AOC)
Connectivity
Connector TypeUSB-A to USB-A, directional (blue host / white client)
Data RateUp to 10 Gbps (USB 3.x Gen2)
Additional specifications
USB performanceUSB 3.x Gen2, up to 10Gbps
Connector typeUSB-A to USB-A, directional (blue host / white client)
Cable technologyActive optical cable (AOC), no external power required
Jacket ratingPlenum-rated
Available lengths10m, 15m

Questions

Can’t find your answer? Ask on WhatsApp

Does this cable need an external power supply?
No. It is an active optical cable with the active electronics built into the connector housings, so it draws power over the USB connection itself and needs no separate power adapter.
Does it matter which end plugs into the computer?
Yes. The connectors are directional: the blue-shelled connector is the host end that plugs into the computer or controller, and the white-shelled connector is the client end that plugs into the USB device.
Why choose this over a standard copper USB 3.0 cable for a long run?
Passive copper USB cables are only reliable up to a few metres at full USB 3.x speed. This active optical cable is built to carry a full 10Gbps USB 3.x Gen2 signal over 10m or 15m runs, which a copper cable of that length cannot do.
What is the difference between the 10m and 15m versions?
Both use the same USB 3.x Gen2, plenum-rated, active optical construction; they differ only in overall cable length, 10m or 15m, so you can match the length to your run.
