ELODigital SignageSKU 3202L IR

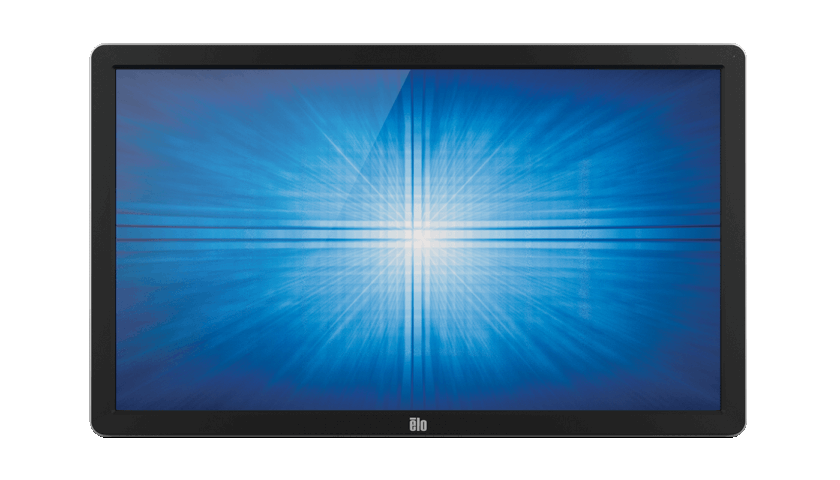

Elo 3202L 32-inch Interactive Digital Signage Display – 3202L IR
The Elo 3202L IR is a 32-inch interactive digital signage display with 20-point infrared touch and a 1920 x 1080 LCD. It is built for public-facing wayfinding, brand experiences and collaboration, with 500 nits brightness and 3,000:1 contrast. The manufacturer has replaced it with the 3203L. Procure.ae can confirm availability of this model in the UAE.
The 3202L IR has an infrared touch layer that supports 20 simultaneous touches, on a 31.5-inch LCD with 1920 x 1080 resolution at 60 Hz. Typical brightness is 500 nits for the LCD and 450 nits for the infrared layer, with a 3,000:1 contrast ratio and 8 ms response time. The display runs 24 hours a day and offers a 178-degree viewing angle. Built-in stereo speakers rated at 4 x 5 W provide audio.
The panel offers VGA, two HDMI inputs and a DisplayPort input, with an RJ45 port for the optional on-screen display remote and a GPIO connector. The USB type B port carries touch data to the connected computer. Mounting uses a 400 x 400 mm VESA pattern and the unit can be used in portrait or landscape orientation within its operating temperature range. RFID support covers ISO 14443-A, ISO 14443-B and ISO 15693.
Screen Size
31.5 inch
Resolution
1920 x 1080 (Full HD)
Brightness
500 nits
Touch Technology
Infrared
- 20-point infrared touch
- Full HD display
- High contrast
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
20-point infrared touch
20 simultaneous touches over a 31.5-inch display.
02
Full HD display
1920 x 1080 resolution at 60 Hz with 500 nits LCD brightness.
03
High contrast
3,000:1 contrast ratio and 8 ms response time.
04
Continuous operation
rated for 24 hours a day with portrait and landscape use.
05
Multiple video inputs
VGA, two HDMI and a DisplayPort input.
06
RFID support
ISO 14443-A, ISO 14443-B and ISO 15693 protocols.
07
Built-in stereo speakers
4 x 5 W stereo speakers and 3.5 mm audio in and out.
08
VESA mounting
400 x 400 mm VESA mount per MIS-F.
Specifications
28 specificationsGeneral
Key Features20-point infrared touch, 1920 x 1080 display, 500 nits, 3,000:1 contrast, 24-hour operation, RFID support, 400 x 400 mm VESA, 3-year warranty
Model3202L IR
TypeInteractive Digital Signage Display
What's in the BoxHDMI cable, USB cable (type A to type B), power cable, 3.5 mm audio cable, quick guide
Display
Aspect Ratio16:9
Brightness500 nits
Contrast Ratio3,000:1
Panel TechnologyTFT LCD (LED)
Resolution1920 x 1080 (Full HD)
Response Time8 ms
Screen Size31.5 inch
Touch Points20-point multi-touch
Touch TechnologyInfrared
Viewing Angle178° (horizontal and vertical)
Audio
Speaker Output4 × 5 W stereo
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PortsVGA × 1, HDMI × 2, DisplayPort × 1, USB type B (touch) × 1, GPIO, audio line in, headphone out, RJ45 (optional OSD remote)
Touch USB PortsUSB type B × 1
Power
Power Consumption55.0 W on (120 V, 60 Hz), monitor only
Physical
ColorBlack
Dimensions762.8 x 457.3 x 61.6 mm
Duty Cycle24 hours per day
Operating Humidity20% to 80% RH
Operating Temperature0 to 40 °C (portrait and landscape)
VESA Mount400 x 400 mm
Weight13.25 kg (without ECMG3)
Compliance
CertificationsUL, FCC Class A, cUL, IC, CB, CE Class A, CCC, EAC, VCCI
Warranty3 years
Downloads
Manufacturer documents for the Elo 3202L 32-inch Interactive Digital Signage Display – 3202L IR — datasheets, manuals, drawings and certificates.
- Datasheet – IDS 02-Series
- Datasheet – IDS 02-Series
- User manual – IDS 02-Series
- User manual – Elo IDS 02-Series / IDS 03-Series / IDS 53-Series
- Quick start guide – IDS 02-Series
- Quick start guide – Elo IDS 02-Series / IDS 03-Series / IDS 53-Series
- Installation guide – IDS 02-Series
- Drawing – IDS 02-Series
- Drawing – Elo IDS 02-Series / IDS 03-Series
- Energy label – IDS 02-Series
- Energy label – IDS 02-Series
Questions
Can’t find your answer? Ask on WhatsApp
What is the Elo 3202L IR?
It is a 32-inch interactive digital signage display with 20-point infrared touch and a 1920 x 1080 LCD. The manufacturer describes it for endless aisle, brand experiences and wayfinding. The 3202L IR has been replaced by the 3203L.
Does it work with a computer over USB?
Yes. The touch function connects through a USB type B port, and the display takes video through VGA, HDMI or DisplayPort inputs. The manufacturer includes an HDMI cable and a USB cable in the box.
Can it be wall-mounted?
Yes. The display uses a 400 x 400 mm VESA mount per MIS-F. The manufacturer rates the unit for portrait and landscape use between 0 and 40 °C, and lists 24 hours a day as the maximum operating time.
Does it include speakers?
Yes. The display has four 5 W stereo speakers, plus a 3.5 mm audio input and a 3.5 mm headphone output. The box includes a 3.5 mm audio cable for connecting an external audio source.
