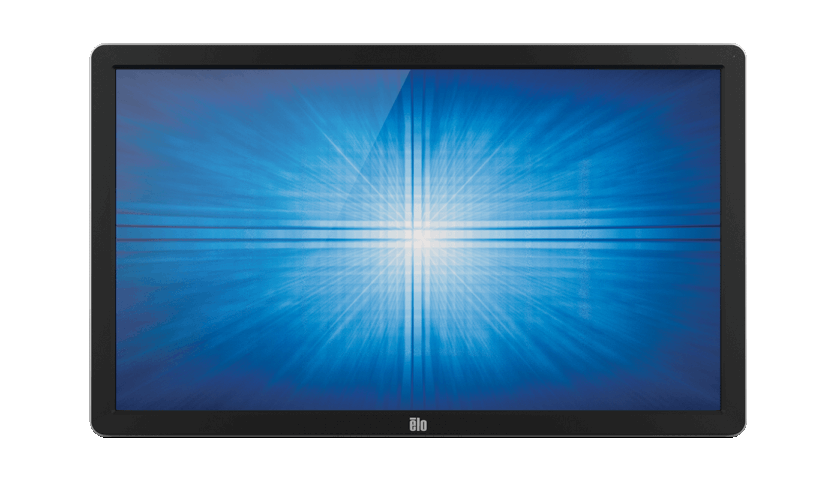

Elo 3202L 32-inch Interactive Digital Signage Display – 3202L IR

The Elo 3202L IR is a 32-inch interactive digital signage display with 20-point infrared touch and a 1920 x 1080 LCD. It is built for public-facing wayfinding, brand experiences and collaboration, with 500 nits brightness and 3,000:1 contrast. The manufacturer has replaced it with the 3203L. Procure.ae can confirm availability of this model in the UAE.

The 3202L IR has an infrared touch layer that supports 20 simultaneous touches, on a 31.5-inch LCD with 1920 x 1080 resolution at 60 Hz. Typical brightness is 500 nits for the LCD and 450 nits for the infrared layer, with a 3,000:1 contrast ratio and 8 ms response time. The display runs 24 hours a day and offers a 178-degree viewing angle. Built-in stereo speakers rated at 4 x 5 W provide audio.

The panel offers VGA, two HDMI inputs and a DisplayPort input, with an RJ45 port for the optional on-screen display remote and a GPIO connector. The USB type B port carries touch data to the connected computer. Mounting uses a 400 x 400 mm VESA pattern and the unit can be used in portrait or landscape orientation within its operating temperature range. RFID support covers ISO 14443-A, ISO 14443-B and ISO 15693.

Screen Size

31.5 inch

Resolution

1920 x 1080 (Full HD)

Brightness

500 nits

Touch Technology

Infrared

Type

Interactive Digital Signage Display

Weight

13.25 kg (without ECMG3)

Key features

20-point infrared touch

20 simultaneous touches over a 31.5-inch display.

Full HD display

1920 x 1080 resolution at 60 Hz with 500 nits LCD brightness.

High contrast

3,000:1 contrast ratio and 8 ms response time.

Continuous operation

rated for 24 hours a day with portrait and landscape use.

Multiple video inputs

VGA, two HDMI and a DisplayPort input.

RFID support

ISO 14443-A, ISO 14443-B and ISO 15693 protocols.

Built-in stereo speakers

4 x 5 W stereo speakers and 3.5 mm audio in and out.

VESA mounting

400 x 400 mm VESA mount per MIS-F.

Specifications

General
Key Features	20-point infrared touch, 1920 x 1080 display, 500 nits, 3,000:1 contrast, 24-hour operation, RFID support, 400 x 400 mm VESA, 3-year warranty
Model	3202L IR
Type	Interactive Digital Signage Display
What's in the Box	HDMI cable, USB cable (type A to type B), power cable, 3.5 mm audio cable, quick guide

Display
Aspect Ratio	16:9
Brightness	500 nits
Contrast Ratio	3,000:1
Panel Technology	TFT LCD (LED)
Resolution	1920 x 1080 (Full HD)
Response Time	8 ms
Screen Size	31.5 inch
Touch Points	20-point multi-touch
Touch Technology	Infrared
Viewing Angle	178° (horizontal and vertical)

Audio
Speaker Output	4 × 5 W stereo

Connectivity
Input Voltage	100–240 V AC, 50/60 Hz
Ports	VGA × 1, HDMI × 2, DisplayPort × 1, USB type B (touch) × 1, GPIO, audio line in, headphone out, RJ45 (optional OSD remote)
Touch USB Ports	USB type B × 1

Power
Power Consumption	55.0 W on (120 V, 60 Hz), monitor only

Physical
Color	Black
Dimensions	762.8 x 457.3 x 61.6 mm
Duty Cycle	24 hours per day
Operating Humidity	20% to 80% RH
Operating Temperature	0 to 40 °C (portrait and landscape)
VESA Mount	400 x 400 mm
Weight	13.25 kg (without ECMG3)

Compliance
Certifications	UL, FCC Class A, cUL, IC, CB, CE Class A, CCC, EAC, VCCI
Warranty	3 years
