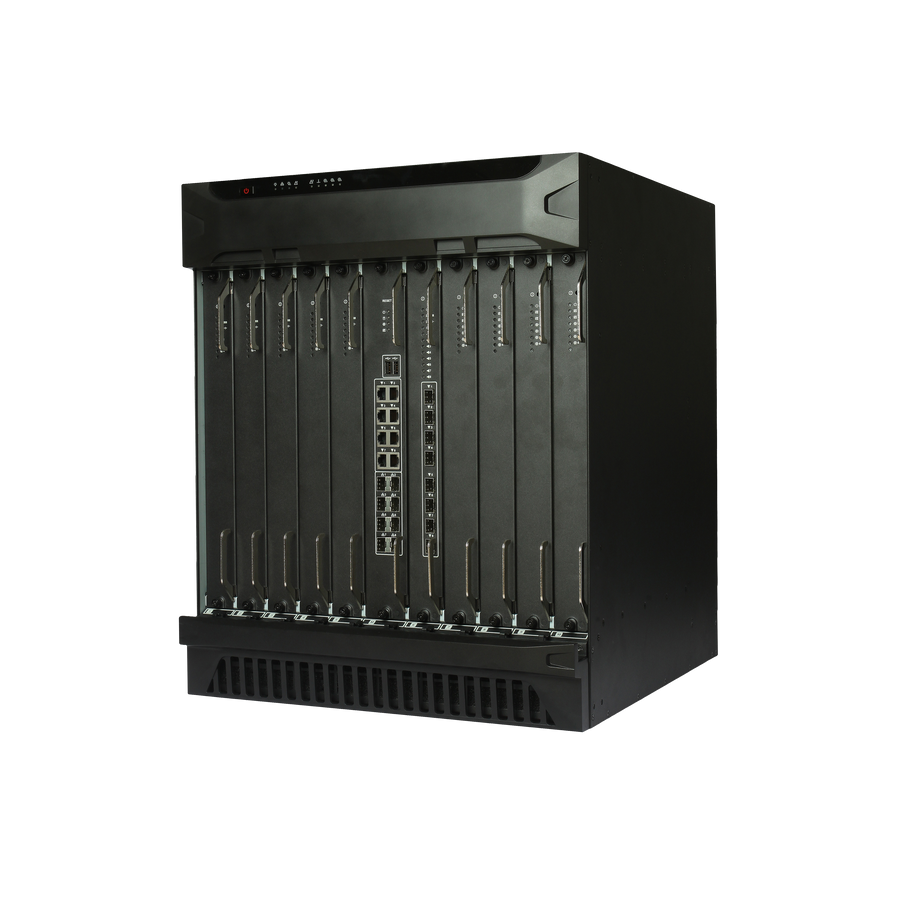

Dahua Multi-service Video Management Platform Video Wall Controller – M60-12U
The Dahua M60-12U is a discontinued 12U video wall controller that splices up to 180 screens and decodes network video for surveillance projects. It suits matrix switching, video wall management and multi-channel decoding. Procure.ae can confirm availability and supply in the UAE, with quotes and installation support.
The M60-12U runs an embedded Linux operating system on a 64-bit quad-core processor. It accepts digital and network video, supports up to 5,000 camera access and offers 8 RJ-45 network ports with 8 Gbps network interface bandwidth. Full configuration provides 80 channels of 1080P signal encoding and 60 channels of 32MP (25fps) decoding, or 960 channels of 1080P decoding. Video wall splicing covers up to 180 screens, with zoom, merge, roam and overlay support.
The M60-12U is a standard 19-inch, 12U rack-mounted ATCA industry box with pluggable card modules, and its function cards support hot-swap. It can be managed through a web interface, local GUI, video platform, network keyboard or iPad. Outputs are HDMI or BNC depending on the decoding card, and an optical cascade link card is optional. Compared with the 7U M60-7U, the 12U model supports up to 180 splicing screens instead of 90.
Type
Video Wall Controller
Weight
≤40 kg (fully configured)
- Embedded Linux platform
- Video wall splicing
- Network decoding
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Embedded Linux platform
Runs on a 64-bit quad-core embedded microprocessor with an embedded Linux operating system.
02
Video wall splicing
Splices up to 180 screens, with zoom, merge, roam and overlay support.
03
Network decoding
Decodes 60 channels of 32MP (25fps) or 960 channels of 1080P at full configuration.
04
Signal encoding
Encodes 80 channels of 1080P at full configuration, using H.264 or MPEG4.
05
Network ports
Provides 8 RJ-45 ports (10/100/1000M), with optional optical ports and 8 Gbps bandwidth.
06
Pluggable cards
Uses a pluggable card module design, with hot-swap support for function cards.
07
Multiple control options
Controlled by WEB, local GUI, video platform, network keyboard or iPad.
08
Remote maintenance
Supports remote reboot, upgrade and default-setting operations.
Specifications
24 specificationsGeneral
ControlsWEB, local GUI, video platform, network keyboard, iPad
Key FeaturesVideo wall splicing up to 180 screens, Network decoding, 1080P encoding, Hot-swap function cards, 8 RJ-45 ports, Remote maintenance
ModelM60-12U
TypeVideo Wall Controller
Display
Screen ControlSplicing up to 180 screens; zoom, merge, roam, overlay
Performance
Bandwidth8 Gbps network interface
Operating SystemEmbedded Linux
Processor64-bit quad-core embedded microprocessor
Audio
Audio OutHDMI embedded audio, 9 to 18 channels
Connectivity
Connectivity8 RJ-45 network ports, optional optical ports, 8 Gbps interface bandwidth
Input Voltage100–127 V AC and 200–240 V AC, 50/60 Hz
InputsDigital and network video (mixed input)
OutputsHDMI or BNC (up to 18 HDMI channels)
PortsRJ-45 (10/100/1000M) × 8; Optical (optional); USB 2.0 × 4; RS-232 × 1; RS-485 × 2
ProtocolsTCP, UDP, RTP, RTSP, RTCP, DHCP
Serial PortRS-232 × 1, RS-485 × 2
USB PortsUSB 2.0 × 4
Power
Power Consumption≤800 W
Physical
Dimensions482.6 x 533 x 481.6 mm
Mounting19-inch rack mount
Operating Humidity10% to 90% RH
Operating Temperature0 to 50 °C
Rack Units12U
Weight≤40 kg (fully configured)
Downloads
Manufacturer documents for the Dahua Multi-service Video Management Platform Video Wall Controller – M60-12U — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How many screens can the Dahua M60-12U splice?
The M60-12U supports video wall splicing of up to 180 screens. It also supports zoom, merge, roam and overlay functions on the video wall, so content can be positioned across several displays.
Does the M60-12U work with IP cameras?
Yes. The M60-12U accepts network video and supports access to up to 5,000 cameras. It uses TCP, UDP, RTP, RTSP, RTCP, DHCP and related network protocols, so it can work with network video sources that support them.
How is the M60-12U controlled and maintained?
It can be controlled through its WEB interface, local GUI, video platform, network keyboard or iPad. Remote reboot, upgrade and default-setting operations are also supported, so routine maintenance can be done without visiting the unit.
Is the M60-12U rack-mountable, and what power does it need?
Yes. It is a standard 19-inch, 12U rack-mounted unit measuring 482.6 x 533 x 481.6 mm (W x H x D). It runs on 100–127 V AC and 200–240 V AC, 50/60 Hz, with power consumption up to 800 W.
