DahuaMeeting Room SolutionsSKU DS04-AI400N

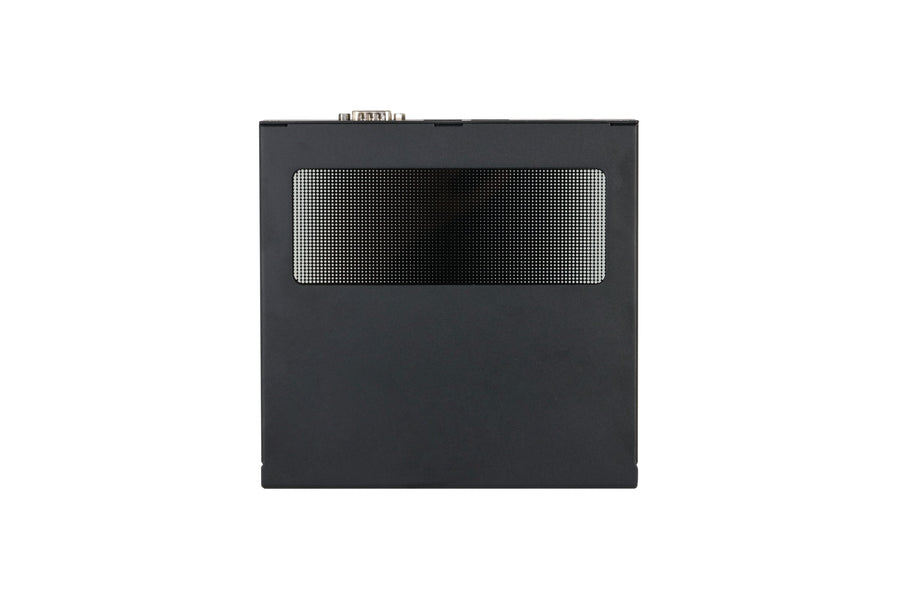

Dahua Media Player Box Digital Signage Player – DS04-AI400N
The Dahua DS04-AI400N is a 4K digital signage media player box for playing video, images, text and PDF content on a connected display. It runs Android 14 with 8 GB RAM and 32 GB storage, and it supports dual-band Wi-Fi, Bluetooth 5.2 and remote management. Procure.ae supplies the DS04-AI400N in the UAE.
The unit decodes 4K video and drives a single 4K display at 60 fps, or four 1080p channels. Play modes include loop, timed, inter-cut and gasket play, with play plans set by day, week or month. It also displays live video, time and weather, and it can import files from USB and take remote screenshots. Supported formats cover text, images, video, audio, Word and PDF files.
The player is designed for 16:9 or 9:16 screens only, and other aspect ratios may cause image distortion or black borders. It fits advertising and information displays where content and devices are managed through its web page. It also has a 3.5 mm line input and line output, and it draws 7 W typical and 18 W maximum.
Type
Digital Signage Media Player
Weight
825 g
- 4K decoding
- Flexible play modes
- Remote management
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K decoding
Decodes 4K video, with HDMI output at 4K and 60 fps.
02
Flexible play modes
Loop, timed, inter-cut and gasket play with day, week or month plans.
03
Remote management
Manages devices and users, configures the network and restarts remotely.
04
Dual-band Wi-Fi
Supports 2.4 GHz and 5 GHz Wi-Fi, with Bluetooth 5.2.
05
Scheduled power
Sets display on and off times automatically.
06
Format support
Plays text, images, video, audio, Word and PDF files.
Specifications
25 specificationsGeneral
Key Features4K decoding, Loop, timed, inter-cut and gasket play, Remote screenshots, USB file import, Device and user management, Auto on and off scheduling, Dual-band Wi-Fi and Bluetooth 5.2
ModelDS04-AI400N
TypeDigital Signage Media Player
What's in the BoxPower adapter, remote control, quick start guide, legal and regulatory information
Performance
Operating SystemAndroid 14
RAM8 GB
Storage32 GB
Audio
Audio CodecsMP3, WAV, MPEG-4, H.264/AVC, H.265/HEVC
Audio Out1 × 3.5 mm line out
Connectivity
BluetoothBluetooth 5.2
Ethernet1 × RJ-45 10/100/1000 Mbps
HDMI Outputs1 × HDMI out, 4K at 60 fps, or 4 channels at 1080p
Input Voltage12 VDC
SD Card Slot1 × TF card slot, up to 512 GB
Serial Port1 × RS-232, 1 × RJ-45
USB Ports2 × USB 3.2 Gen 1 (Type-A)
Wi-FiDual-band 2.4 GHz and 5 GHz, 802.11 a/b/g/n/ac/ax
Power
Power Consumption7 W (typical), 18 W (maximum)
Physical
Dimensions169.4 x 169.7 x 38.2 mm
MaterialMetal casing
Operating Humidity10% to 90% RH, non-condensing
Operating Temperature-10 to 55 °C
Weight825 g
Compliance
CertificationsCE LVD, CE EMC, CE RED
IP RatingIP20
Downloads
Manufacturer documents for the Dahua Media Player Box Digital Signage Player – DS04-AI400N — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the DS04-AI400N support 4K?
Yes. The manufacturer states 4K decoding, with HDMI output of one channel at 4K (60 fps) or four channels at 1080p. It also lists H.265/HEVC and H.264/AVC video compression, so common 4K formats are covered.
Does it work with any screen shape?
No. It works only with 16:9 or 9:16 screens, and other ratios may cause image distortion or black borders. Check your display's aspect ratio before ordering, and ask Procure.ae to confirm the setup for your room.
Does it support 5 GHz Wi-Fi?
Yes. It has dual-band Wi-Fi covering 2.4 GHz and 5 GHz, along with Bluetooth 5.2. The manufacturer also lists the 802.11 b/g/n/a/ac/ax Wi-Fi standards and a 1 × RJ-45 Ethernet port for wired networks.
Can I manage it remotely?
Yes. You can manage devices and users, configure the network, restart the unit and set on and off times. Remote screenshots and USB file import are also supported. Procure.ae can confirm the management setup for your network before you order.
Can I buy the DS04-AI400N in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
