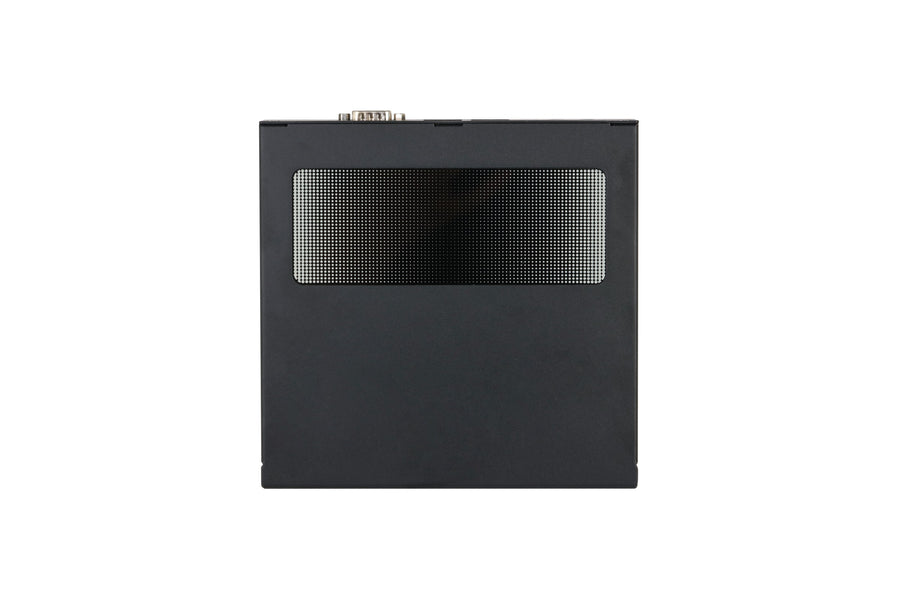

Dahua Media Player Box Digital Signage Player – DS04-AI400N
The Dahua DS04-AI400N is a 4K digital signage media player box for playing video, images, text and PDF content on a connected display. It runs Android 14 with 8 GB RAM and 32 GB storage, and it supports dual-band Wi-Fi, Bluetooth 5.2 and remote management. Procure.ae supplies the DS04-AI400N in the UAE.
The unit decodes 4K video and drives a single 4K display at 60 fps, or four 1080p channels. Play modes include loop, timed, inter-cut and gasket play, with play plans set by day, week or month. It also displays live video, time and weather, and it can import files from USB and take remote screenshots. Supported formats cover text, images, video, audio, Word and PDF files.
The player is designed for 16:9 or 9:16 screens only, and other aspect ratios may cause image distortion or black borders. It fits advertising and information displays where content and devices are managed through its web page. It also has a 3.5 mm line input and line output, and it draws 7 W typical and 18 W maximum.
Key features
Specifications
| Key Features | 4K decoding, Loop, timed, inter-cut and gasket play, Remote screenshots, USB file import, Device and user management, Auto on and off scheduling, Dual-band Wi-Fi and Bluetooth 5.2 |
| Model | DS04-AI400N |
| Type | Digital Signage Media Player |
| What's in the Box | Power adapter, remote control, quick start guide, legal and regulatory information |
| Operating System | Android 14 |
| RAM | 8 GB |
| Storage | 32 GB |
| Audio Codecs | MP3, WAV, MPEG-4, H.264/AVC, H.265/HEVC |
| Audio Out | 1 × 3.5 mm line out |
| Bluetooth | Bluetooth 5.2 |
| Ethernet | 1 × RJ-45 10/100/1000 Mbps |
| HDMI Outputs | 1 × HDMI out, 4K at 60 fps, or 4 channels at 1080p |
| Input Voltage | 12 VDC |
| SD Card Slot | 1 × TF card slot, up to 512 GB |
| Serial Port | 1 × RS-232, 1 × RJ-45 |
| USB Ports | 2 × USB 3.2 Gen 1 (Type-A) |
| Wi-Fi | Dual-band 2.4 GHz and 5 GHz, 802.11 a/b/g/n/ac/ax |
| Power Consumption | 7 W (typical), 18 W (maximum) |
| Dimensions | 169.4 x 169.7 x 38.2 mm |
| Material | Metal casing |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -10 to 55 °C |
| Weight | 825 g |
| Certifications | CE LVD, CE EMC, CE RED |
| IP Rating | IP20 |
