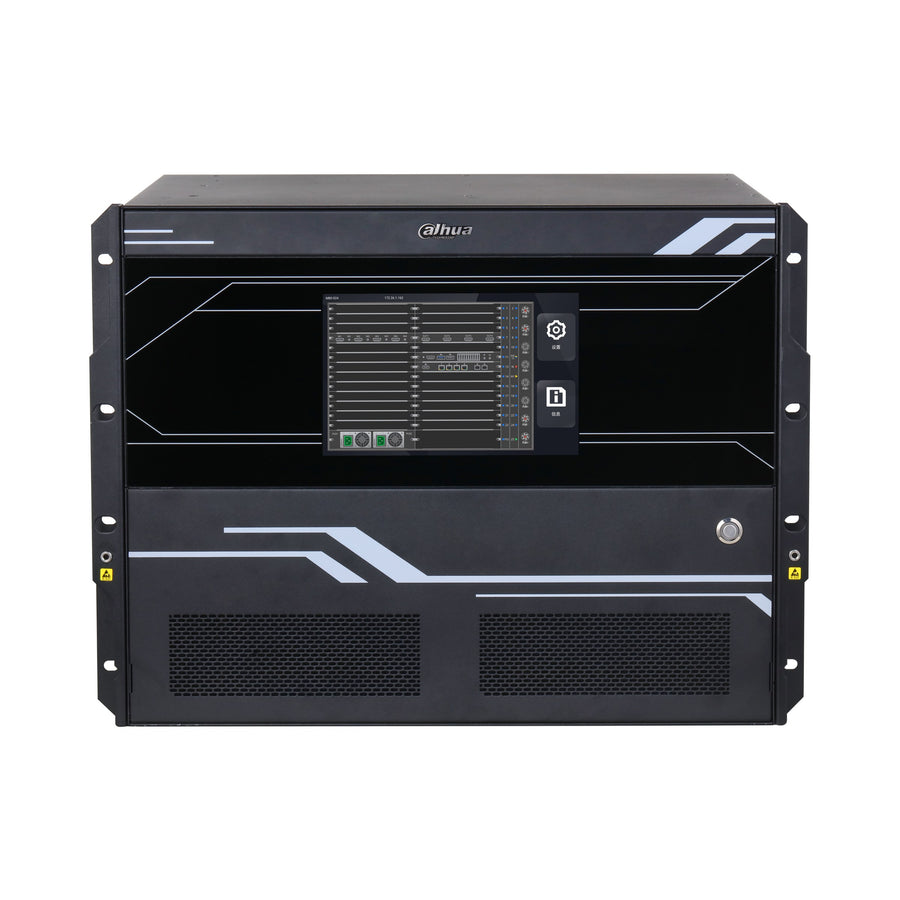

Dahua M80 Series Video Wall Controller – M80-S24
The Dahua M80-S24 is an 8U video wall controller for large-scale video routing, splicing and matrix switching. It suits projects that need up to 96 screens, 24 card slots and optional dual hot-standby controllers. Procure.ae supplies the Dahua M80-S24 in the UAE, with quotes, delivery and installation support.
The M80-S24 runs embedded Linux on a 64-bit octa-core processor with an 8-inch touchscreen. It supports 4K signal capture and encoding, with up to 96 channels of 1080p or 48 channels of 4K input. It decodes 864 channels at 1080p@25fps in full configuration, with H.264 and H.265 support and synchronized audio and video. Full configuration supports up to 96 channels of 4K output through HDMI, allowing splicing across up to 96 screens.
The M80-S24 is a standard 19-inch, 8U rack-mounted ATCA-architecture server with 24 slots for audio and video cards. It has a slot-in modular design, a single power supply as standard with optional dual redundant power, and intelligent fans. It can be controlled from its touchscreen, a webpage, desktop or mobile client, or a network keyboard. Compared with the M80-S12, it has 24 slots instead of 12 and splices up to 96 screens instead of 48.
Resolution
3840 x 2160 (4K UHD) output; custom...
Type
Video Wall Controller
Weight
23 kg (net)
- Screen splicing
- Input and encoding
- Decoding capacity
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Screen splicing
Splices up to 96 screens across up to 16 video walls.
02
Input and encoding
Accepts up to 96 channels of 1080p@60 Hz or 48 channels of 4K@60 Hz for encoding.
03
Decoding capacity
Decodes 864 channels at 1080p@25fps in full configuration, using H.264 or H.265.
04
4K output
Outputs up to 96 channels of 4K through HDMI ports in full configuration.
05
Hot-standby controllers
Optional dual hot-standby main controllers allow switchover without changing the wall content.
06
Redundant power
Dual power supply is optional; a single supply is standard.
07
Network connectivity
Provides 4 × 2.5 Gbps RJ-45 and 2 × 10 Gbps optical ports.
08
Scenes and scheduling
Supports up to 128 scenes and scheduled switching by day of the week.
Specifications
28 specificationsGeneral
ControlsTouchscreen, webpage, desktop client, mobile client, network keyboard
Key FeaturesSplices up to 96 screens, 24 card slots, Dual hot-standby controllers (optional), H.264 and H.265 decoding, 864 channels of 1080p decoding, Remote control
ModelM80-S24
TypeVideo Wall Controller
Display
Display8-inch touchscreen, 1280 × 800
Resolution3840 x 2160 (4K UHD) output; custom resolutions supported
Screen ControlSplicing up to 96 screens; 16 video walls
Performance
Operating SystemEmbedded Linux
Processor64-bit octa-core processor
Storage Conditions−10 to +50 °C; 10% to 90% (non-condensing)
Audio
Audio In2-channel HDMI/DP embedded, 2-channel 3.5 mm
Audio Out3.5 mm, HDMI, or both (default 3.5 mm)
Connectivity
Ethernet4 × 2.5 Gbps RJ-45, 2 × 10 Gbps optical
Input Voltage100–127 V AC / 100–240 V AC, 50–60 Hz
Inputs2 × HDMI 2.0 or DP 1.2 (selectable per channel), 4 × HDMI 1.3
Outputs4 × HDMI 2.0 (LCD layer), 4 × HDMI 2.0 (LED layer)
PortsRJ-45 (2.5 Gbps) × 4; Optical (10 Gbps) × 2; USB 3.0 × 1; USB 2.0 × 1; RS-232 × 2; RS-485 × 2; Type-C (USB 2.0) × 1
ProtocolsTCP, UDP, RTP, RTSP, RTCP; ONVIF, RTSP, Dahua Private, Hikvision Private
Serial PortRS-232 × 2, RS-485 × 2
USB PortsUSB 3.0 × 1, USB 2.0 × 1
USB-C Ports1 × Type-C (USB 2.0)
Power
Power Consumption≤1200 W
Physical
Dimensions484.0 x 354.8 x 409.2 mm
Mounting19-inch rack mount
Operating Humidity10% to 90% (non-condensing)
Operating Temperature−10 to +50 °C
Rack Units8U
Weight23 kg (net)
Downloads
Manufacturer documents for the Dahua M80 Series Video Wall Controller – M80-S24 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How many screens can the Dahua M80-S24 splice?
Yes, the M80-S24 splices up to 96 screens and supports up to 16 video walls. Each output port supports up to 36 screens, and the unit supports 1, 4, 6, 8, 9, 16, 25 and 36 window splits plus custom M x N layouts.
What inputs and outputs does the M80-S24 have?
It accepts 2 channels of HDMI 2.0 or DP 1.2, selectable per channel, plus 4 channels of HDMI 1.3, with embedded audio. Outputs are 4 HDMI 2.0 ports on the LCD layer and 4 HDMI 2.0 ports on the LED layer, with output resolutions up to 3840 x 2160@60 Hz.
Can the M80-S24 work with IP cameras and existing platforms?
Yes. It supports ONVIF, RTSP, Dahua Private and Hikvision Private interoperability, plus TCP, UDP, RTP, RTSP and RTCP transmission. A platform SDK is provided for secondary development, which suits integration with existing surveillance platforms.
Is the M80-S24 rack-mountable, and what power does it need?
Yes. It is a standard 19-inch, 8U rack-mounted unit measuring 484.0 x 354.8 x 409.2 mm (W x H x D). It runs on 100–127 V AC or 100–240 V AC, 50–60 Hz, with power consumption up to 1200 W.
Can I buy the M80-S24 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
