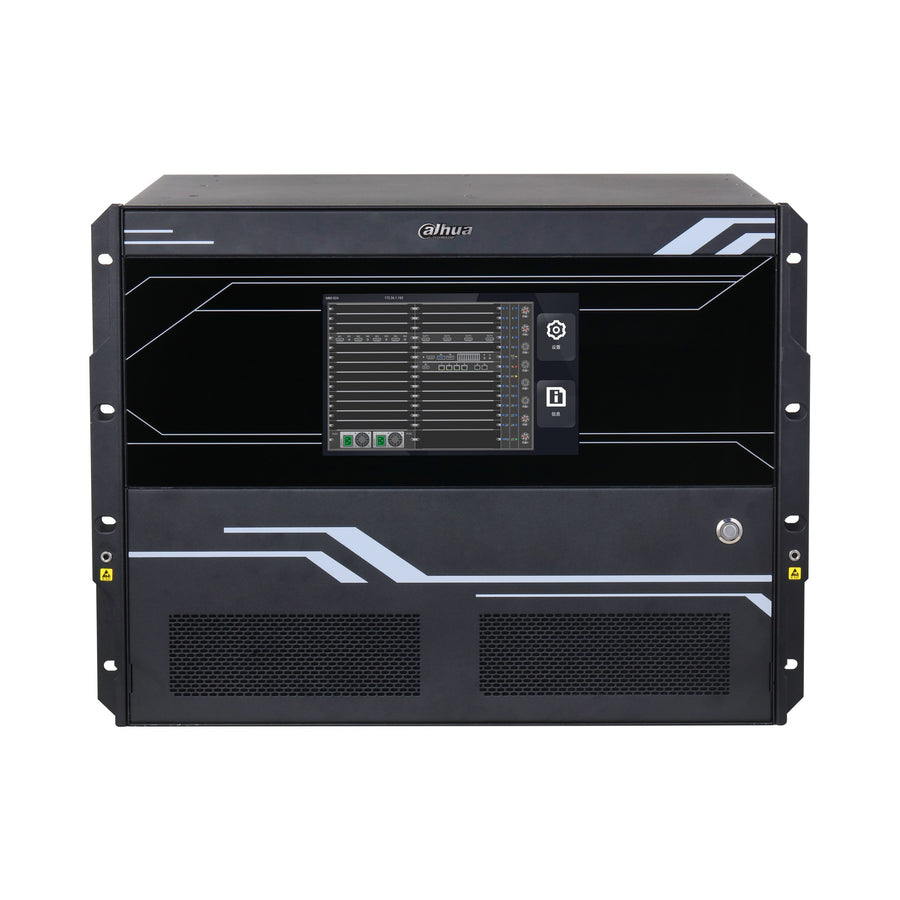

Dahua M80 Series Video Wall Controller – M80-S24
The Dahua M80-S24 is an 8U video wall controller for large-scale video routing, splicing and matrix switching. It suits projects that need up to 96 screens, 24 card slots and optional dual hot-standby controllers. Procure.ae supplies the Dahua M80-S24 in the UAE, with quotes, delivery and installation support.
The M80-S24 runs embedded Linux on a 64-bit octa-core processor with an 8-inch touchscreen. It supports 4K signal capture and encoding, with up to 96 channels of 1080p or 48 channels of 4K input. It decodes 864 channels at 1080p@25fps in full configuration, with H.264 and H.265 support and synchronized audio and video. Full configuration supports up to 96 channels of 4K output through HDMI, allowing splicing across up to 96 screens.
The M80-S24 is a standard 19-inch, 8U rack-mounted ATCA-architecture server with 24 slots for audio and video cards. It has a slot-in modular design, a single power supply as standard with optional dual redundant power, and intelligent fans. It can be controlled from its touchscreen, a webpage, desktop or mobile client, or a network keyboard. Compared with the M80-S12, it has 24 slots instead of 12 and splices up to 96 screens instead of 48.
Key features
Specifications
| Controls | Touchscreen, webpage, desktop client, mobile client, network keyboard |
| Key Features | Splices up to 96 screens, 24 card slots, Dual hot-standby controllers (optional), H.264 and H.265 decoding, 864 channels of 1080p decoding, Remote control |
| Model | M80-S24 |
| Type | Video Wall Controller |
| Display | 8-inch touchscreen, 1280 × 800 |
| Resolution | 3840 x 2160 (4K UHD) output; custom resolutions supported |
| Screen Control | Splicing up to 96 screens; 16 video walls |
| Operating System | Embedded Linux |
| Processor | 64-bit octa-core processor |
| Storage Conditions | −10 to +50 °C; 10% to 90% (non-condensing) |
| Audio In | 2-channel HDMI/DP embedded, 2-channel 3.5 mm |
| Audio Out | 3.5 mm, HDMI, or both (default 3.5 mm) |
| Ethernet | 4 × 2.5 Gbps RJ-45, 2 × 10 Gbps optical |
| Input Voltage | 100–127 V AC / 100–240 V AC, 50–60 Hz |
| Inputs | 2 × HDMI 2.0 or DP 1.2 (selectable per channel), 4 × HDMI 1.3 |
| Outputs | 4 × HDMI 2.0 (LCD layer), 4 × HDMI 2.0 (LED layer) |
| Ports | RJ-45 (2.5 Gbps) × 4; Optical (10 Gbps) × 2; USB 3.0 × 1; USB 2.0 × 1; RS-232 × 2; RS-485 × 2; Type-C (USB 2.0) × 1 |
| Protocols | TCP, UDP, RTP, RTSP, RTCP; ONVIF, RTSP, Dahua Private, Hikvision Private |
| Serial Port | RS-232 × 2, RS-485 × 2 |
| USB Ports | USB 3.0 × 1, USB 2.0 × 1 |
| USB-C Ports | 1 × Type-C (USB 2.0) |
| Power Consumption | ≤1200 W |
| Dimensions | 484.0 x 354.8 x 409.2 mm |
| Mounting | 19-inch rack mount |
| Operating Humidity | 10% to 90% (non-condensing) |
| Operating Temperature | −10 to +50 °C |
| Rack Units | 8U |
| Weight | 23 kg (net) |
☎ +971 4 546 5041 · WhatsApp · ✉ info@procure.ae · 🔗 View product page
This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.
Specifications are provided by the manufacturer and may change without notice.
