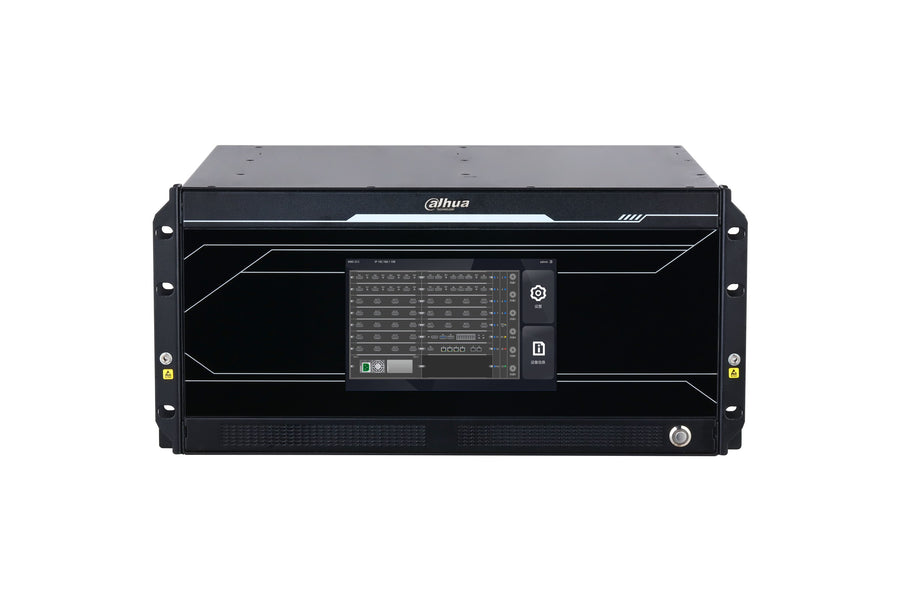

Dahua M80 Series Video Wall Controller – M80-S12
The Dahua M80-S12 is a video wall controller for professional video routing, splicing and matrix switching. It suits large video wall installations that need up to 48 screens, 32MP decoding and H.265 encoding. Procure.ae supplies the Dahua M80-S12 in the UAE, with quotes, delivery and installation support.
The M80-S12 runs embedded Linux on a 64-bit octa-core processor with an 8-inch touchscreen for local control. It has 4 × 2.5 Gbps RJ-45 and 2 × 10 Gbps optical ports, and accepts 2 channels of HDMI 2.0 or DP 1.2 plus 4 channels of HDMI 1.3 input. Video output is 4 × HDMI 2.0 on the LCD layer and 4 × HDMI 2.0 on the LED layer. It supports real-time decoding of 2-ch 32MP@25fps, 36-ch 1080p@30fps and 130-ch D1@25fps. Splicing reaches 48 screens, with 16 video walls and up to 128 scenes.
The M80-S12 is a 19-inch rack-mounted ATCA-architecture server with 12 slots for audio and video cards. Single power supply is standard, and dual redundant power is optional. Intelligent fans adjust to temperature, and the unit can be controlled from its touchscreen, a webpage, desktop or mobile client, or a network keyboard. Compared with the M80-S24, it has 12 slots instead of 24 and splices up to 48 screens instead of 96.
Resolution
3840 x 2160 (4K UHD) output; custom...
Type
Video Wall Controller
Weight
20 kg (net)
- Screen splicing
- Video decoding
- H.265 encoding
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Screen splicing
Splices up to 48 screens across up to 16 video walls.
02
Video decoding
Decodes 2-ch 32MP@25fps, 36-ch 1080p@30fps and 130-ch D1@25fps in real time.
03
H.265 encoding
Encodes video in H.265, with PCM and G.711A audio encoding.
04
Input channels
Accepts 2 channels of HDMI 2.0 or DP 1.2 plus 4 channels of HDMI 1.3, with embedded audio.
05
Output resolutions
Outputs up to 3840 x 2160@60 Hz, with custom resolutions supported.
06
Network connectivity
Provides 4 × 2.5 Gbps RJ-45 and 2 × 10 Gbps optical ports.
07
Touchscreen control
Uses an 8-inch 1280 x 800 touchscreen, plus webpage, desktop, mobile and network keyboard control.
08
Scenes and scheduling
Supports up to 128 scenes, 64 background images and scheduled switching by day of the week.
Specifications
27 specificationsGeneral
ControlsTouchscreen, webpage, desktop client, mobile client, network keyboard
Key FeaturesSplicing up to 48 screens, H.265 encoding, 32MP decoding, 8-inch touchscreen, 2.5 Gbps and 10 Gbps network ports, Smart display rules, Fan control
ModelM80-S12
TypeVideo Wall Controller
Display
Display8-inch touchscreen, 1280 × 800
Resolution3840 x 2160 (4K UHD) output; custom resolutions supported
Screen ControlSplicing up to 48 screens; 16 video walls
Performance
Operating SystemEmbedded Linux
Processor64-bit octa-core processor
Storage Conditions−10 to +50 °C; 10% to 90% (non-condensing)
Audio
Audio In2-channel HDMI/DP embedded, 2-channel 3.5 mm
Audio Out3.5 mm, HDMI, or both (default 3.5 mm)
Connectivity
Ethernet4 × 2.5 Gbps RJ-45, 2 × 10 Gbps optical
Input Voltage100–127 V AC / 100–240 V AC, 50–60 Hz
Inputs2 × HDMI 2.0 or DP 1.2 (selectable per channel), 4 × HDMI 1.3
Outputs4 × HDMI 2.0 (LCD layer), 4 × HDMI 2.0 (LED layer)
PortsRJ-45 (2.5 Gbps) × 4; Optical (10 Gbps) × 2; USB 3.0 × 1; USB 2.0 × 1; RS-232 × 2; RS-485 × 2; Type-C (USB 2.0) × 1
ProtocolsTCP, UDP, RTP, RTSP, RTCP; ONVIF, Dahua Private, Hikvision Private
Serial PortRS-232 × 2, RS-485 × 2
USB PortsUSB 3.0 × 1, USB 2.0 × 1
USB-C Ports1 × Type-C (USB 2.0)
Power
Power Consumption≤1200 W
Physical
Dimensions484.0 x 354.8 x 409.2 mm
Mounting19-inch rack mount
Operating Humidity10% to 90% (non-condensing)
Operating Temperature−10 to +50 °C
Weight20 kg (net)
Downloads
Manufacturer documents for the Dahua M80 Series Video Wall Controller – M80-S12 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How many screens can the Dahua M80-S12 splice?
Yes, the M80-S12 splices up to 48 screens and supports up to 16 video walls. It also supports 1, 4, 6, 8, 9, 16, 25 and 36 window splits, plus custom M x N layouts, so content can be divided across the wall.
What inputs and outputs does the M80-S12 have?
It accepts 2 channels of HDMI 2.0 or DP 1.2, selectable per channel, plus 4 channels of HDMI 1.3, with embedded audio inputs. Outputs are 4 HDMI 2.0 ports on the LCD layer and 4 HDMI 2.0 ports on the LED layer, with output resolutions up to 3840 x 2160@60 Hz.
Can the M80-S12 work with IP cameras and existing platforms?
Yes. It supports ONVIF, RTSP, Dahua Private and Hikvision Private interoperability, plus TCP, UDP, RTP, RTSP and RTCP transmission. A platform SDK is provided for secondary development, which suits integration with existing surveillance platforms.
Is the M80-S12 rack-mountable, and what power does it need?
Yes. It is a 19-inch rack-mounted unit measuring 484.0 x 354.8 x 409.2 mm (W x H x D). It runs on 100–127 V AC or 100–240 V AC, 50–60 Hz, with power consumption up to 1200 W. Dual power supply is optional.
