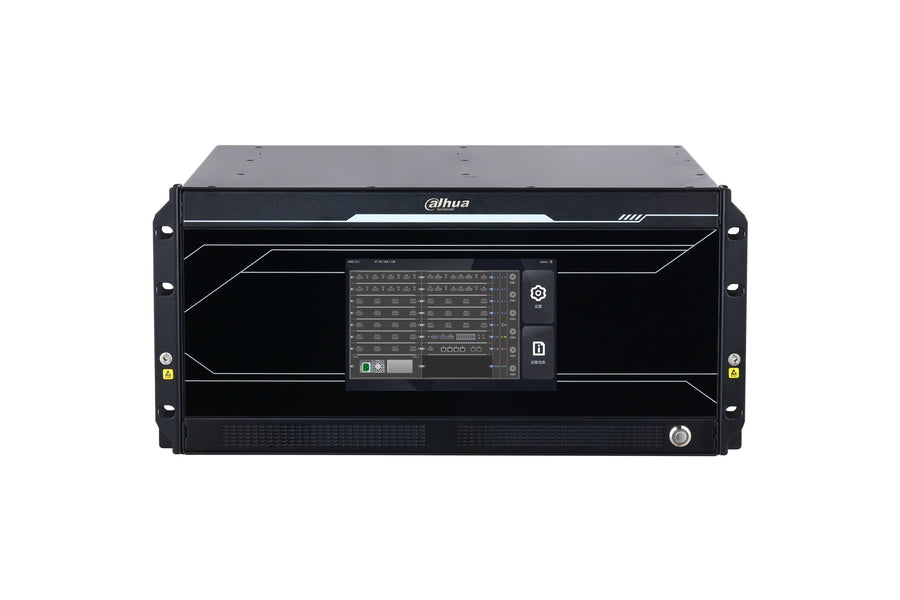

Dahua M80 Series Video Wall Controller – M80-S12

The Dahua M80-S12 is a video wall controller for professional video routing, splicing and matrix switching. It suits large video wall installations that need up to 48 screens, 32MP decoding and H.265 encoding. Procure.ae supplies the Dahua M80-S12 in the UAE, with quotes, delivery and installation support.

The M80-S12 runs embedded Linux on a 64-bit octa-core processor with an 8-inch touchscreen for local control. It has 4 × 2.5 Gbps RJ-45 and 2 × 10 Gbps optical ports, and accepts 2 channels of HDMI 2.0 or DP 1.2 plus 4 channels of HDMI 1.3 input. Video output is 4 × HDMI 2.0 on the LCD layer and 4 × HDMI 2.0 on the LED layer. It supports real-time decoding of 2-ch 32MP@25fps, 36-ch 1080p@30fps and 130-ch D1@25fps. Splicing reaches 48 screens, with 16 video walls and up to 128 scenes.

The M80-S12 is a 19-inch rack-mounted ATCA-architecture server with 12 slots for audio and video cards. Single power supply is standard, and dual redundant power is optional. Intelligent fans adjust to temperature, and the unit can be controlled from its touchscreen, a webpage, desktop or mobile client, or a network keyboard. Compared with the M80-S24, it has 12 slots instead of 24 and splices up to 48 screens instead of 96.
