DahuaVideo WallsSKU DSCON8000-S13
Dahua DSCON8000 5U Splicing Video Wall Controller – DSCON8000-S13

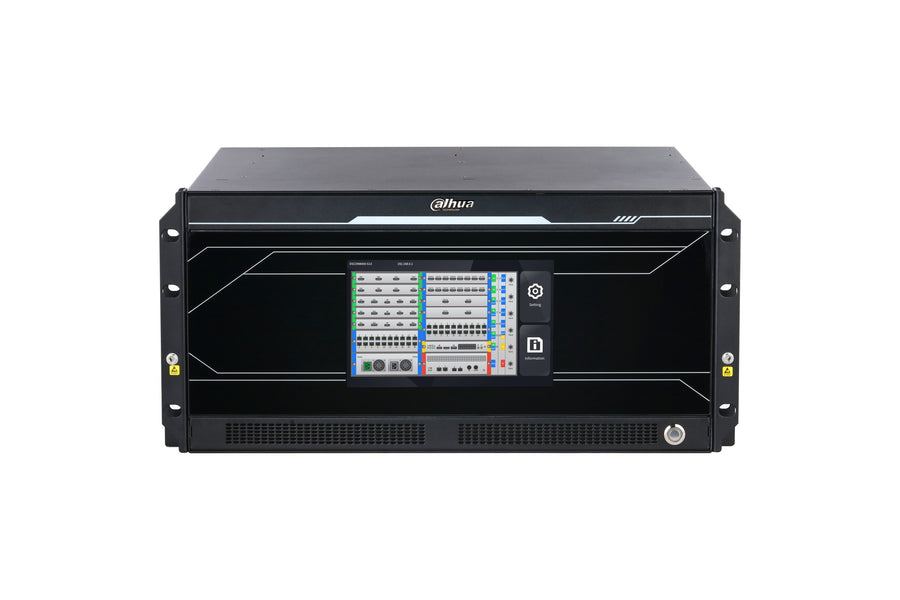

The Dahua DSCON8000-S13 is a 5U splicing video wall controller with an 8-inch touch screen. It acquires 4K signals, supports up to 128 scene presets, and handles splicing, scaling and layering across the wall. It suits conference halls, exhibition halls and outdoor advertising venues. Procure.ae supplies the Dahua DSCON8000-S13 in the UAE.
The DSCON8000-S13 has 13 slots: two for input, six for output and five that can be used for either. It accepts 4-channel and 8-channel HDMI 1.4 input, plus 2-channel and 4-channel HDMI 2.0 or DP 1.2 input, with embedded audio. Its single-card decoding reaches 36 channels at 1080p @ 30 fps, and it previews up to 32 acquired channels. Outputs include 20-channel RJ-45 LED sending, 8-channel HDMI 1.3 and 2-channel HDMI 2.0. Splicing, scaling, roaming, window opening and layering are supported, with multi-screen splits of 1, 4, 6, 8, 9, 16, 25 and 36 screens.
The DSCON8000-S13 suits fixed venues that need scene management from a touch screen, webpage, desktop client, mobile client or network keyboard. It supports external monitors and mice with its own operation page, and an SDK for secondary development. Dual main control hot standby and dual redundant power supplies can be purchased separately. It draws up to 550 W, weighs 14.93 kg net and operates between -10 and +50 °C. Procure.ae supplies and installs it across the UAE and the wider MEA region.
Resolution
Acquires up to 4096 x 2160 @ 30 Hz;...
Type
Video Wall Controller
Weight
14.93 kg (net); 20.6 kg (gross)
- Modular 5U Chassis
- Redundancy Options
- Intelligent Cooling
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Modular 5U Chassis
Standard 5U rack-mount chassis with 13 slots
02
Redundancy Options
Dual main control hot standby and dual redundant power supply, sold separately.
03
Intelligent Cooling
Fan that adjusts automatically to keep the device at a stable temperature.
04
Touch Operation
8-inch touch screen for operating the device directly.
05
Signal Interfaces
Supports DP, HDMI and DVI sources, with cropping to show selected areas only.
06
4K Acquisition
Acquires and outputs 4K signals, with audio and video handled together.
07
Scene Presets
Up to 128 scene presets, with a customisable layout for each scene on the video wall.
08
Subtitles
Subtitles on single or spliced screens, with customisable font, colour, spacing, background and speed.
Specifications
30 specificationsGeneral
ApplicationVideo walls, conference halls, exhibition halls, meeting rooms, outdoor advertising venues
ControlsFront touch screen, external monitor and mouse, webpage, desktop and mobile clients, network keyboard
Key Features5U rack-mount, 13 slots, 8-inch touch screen, 36-channel 1080p single-card decoding, 128 scene presets, 4K acquisition, optional dual hot standby, SDK
ModelDSCON8000-S13
TypeVideo Wall Controller
Display
ResolutionAcquires up to 4096 x 2160 @ 30 Hz; outputs up to 4096 x 2160 @ 60 Hz (HDMI 2.0)
Touch Resolution1280 x 800
Touchscreen8-inch touch screen
Performance
FunctionsSplicing, scaling, roaming, window opening, layering, subtitles, 128 scene presets
Operating SystemEmbedded Linux
ProcessorHigh-performance multi-core processor
Storage Conditions-10 to +50 °C; 10% to 90% RH, non-condensing
Audio
Audio In3.5 mm jack (reserved); embedded HDMI and DP audio on inputs
Audio Out1 × 3.5 mm jack and 1 set of spring-loaded terminal blocks
Connectivity
Ethernet2 × Gigabit Ethernet, 2 × gigabit fiber
Expansion13 slots (2 input, 6 output, 5 either)
HDMI Outputs8 × HDMI 1.3, 2 × HDMI 2.0
Input Voltage100–240 V AC, 50–60 Hz, 8 A, hot-swappable power supply
InputsVideo input cards: 4-ch HDMI 1.4, 8-ch HDMI 1.4, 2-ch HDMI 2.0 or DP 1.2, 4-ch HDMI 2.0 or DP 1.2
OutputsVideo output: 20-ch RJ-45 (LED sending), 8-ch HDMI 1.3, 2-ch HDMI 2.0
PortsHDMI × 1, USB 3.0 × 1, Type-C × 1, 3.5 mm audio in × 1 (reserved), 3.5 mm audio out × 1, RS-232 × 2, RS-485 × 2, Gigabit Ethernet × 2, gigabit fiber × 2
Serial PortRS-232 × 2, RS-485 × 2
USB Ports1 × USB 3.0
USB-C Ports1 × Type-C
Power
Power Consumption550 W maximum
Physical
Dimensions484 x 222 x 416 mm (W x H x D)
Operating Humidity10% to 90% RH, non-condensing
Operating Temperature-10 to +50 °C
Rack Units5U
Weight14.93 kg (net); 20.6 kg (gross)
Downloads
Manufacturer documents for the Dahua DSCON8000 5U Splicing Video Wall Controller – DSCON8000-S13 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the DSCON8000-S13 support 4K?
Yes. It acquires 3840 x 2160 and 4096 x 2160 signals at 30 Hz and outputs up to 4096 x 2160 @ 60 Hz through its HDMI 2.0 output. The HDMI 2.0 and DP 1.2 input cards support 4K-class resolutions.
How many scenes can the DSCON8000-S13 store?
Up to 128 scene presets can be set. The layout of each scene on the video wall can be customised, and subtitles can be shown on single or spliced screens.
Can the DSCON8000-S13 be controlled without a PC?
Yes. It has its own operation page, an 8-inch touch screen, and support for an external monitor and mouse. It can also be controlled from a webpage, desktop client, mobile client or network keyboard.
Does it support redundancy?
Yes, as options. Dual main control hot standby and a dual redundant power supply can be purchased separately. The power supply is hot-swappable on 100–240 V AC. The chassis includes a main control card and power supply as standard.
