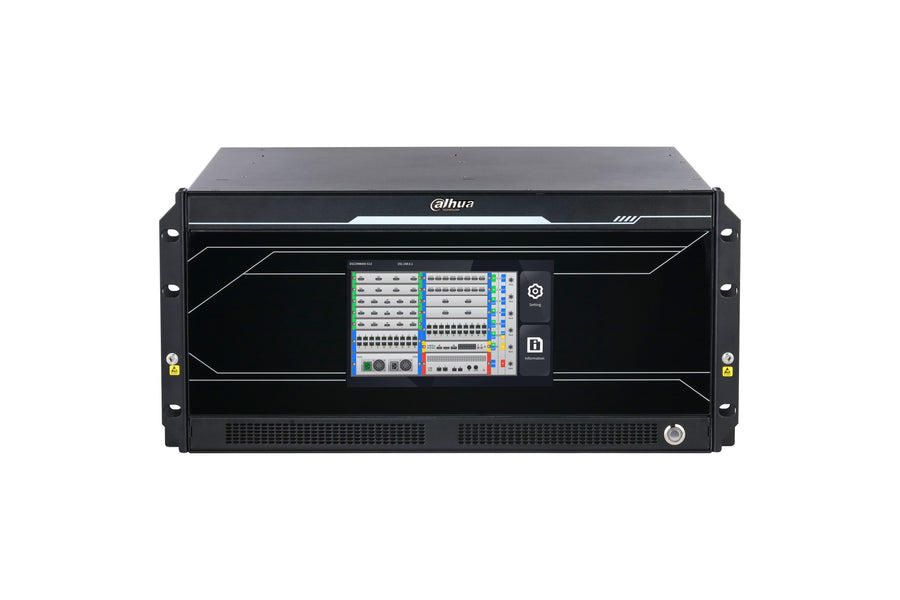

Dahua DSCON8000 5U Splicing Video Wall Controller – DSCON8000-S13
The Dahua DSCON8000-S13 is a 5U splicing video wall controller with an 8-inch touch screen. It acquires 4K signals, supports up to 128 scene presets, and handles splicing, scaling and layering across the wall. It suits conference halls, exhibition halls and outdoor advertising venues. Procure.ae supplies the Dahua DSCON8000-S13 in the UAE.
The DSCON8000-S13 has 13 slots: two for input, six for output and five that can be used for either. It accepts 4-channel and 8-channel HDMI 1.4 input, plus 2-channel and 4-channel HDMI 2.0 or DP 1.2 input, with embedded audio. Its single-card decoding reaches 36 channels at 1080p @ 30 fps, and it previews up to 32 acquired channels. Outputs include 20-channel RJ-45 LED sending, 8-channel HDMI 1.3 and 2-channel HDMI 2.0. Splicing, scaling, roaming, window opening and layering are supported, with multi-screen splits of 1, 4, 6, 8, 9, 16, 25 and 36 screens.
The DSCON8000-S13 suits fixed venues that need scene management from a touch screen, webpage, desktop client, mobile client or network keyboard. It supports external monitors and mice with its own operation page, and an SDK for secondary development. Dual main control hot standby and dual redundant power supplies can be purchased separately. It draws up to 550 W, weighs 14.93 kg net and operates between -10 and +50 °C. Procure.ae supplies and installs it across the UAE and the wider MEA region.
Key features
Specifications
| Application | Video walls, conference halls, exhibition halls, meeting rooms, outdoor advertising venues |
| Controls | Front touch screen, external monitor and mouse, webpage, desktop and mobile clients, network keyboard |
| Key Features | 5U rack-mount, 13 slots, 8-inch touch screen, 36-channel 1080p single-card decoding, 128 scene presets, 4K acquisition, optional dual hot standby, SDK |
| Model | DSCON8000-S13 |
| Type | Video Wall Controller |
| Resolution | Acquires up to 4096 x 2160 @ 30 Hz; outputs up to 4096 x 2160 @ 60 Hz (HDMI 2.0) |
| Touch Resolution | 1280 x 800 |
| Touchscreen | 8-inch touch screen |
| Functions | Splicing, scaling, roaming, window opening, layering, subtitles, 128 scene presets |
| Operating System | Embedded Linux |
| Processor | High-performance multi-core processor |
| Storage Conditions | -10 to +50 °C; 10% to 90% RH, non-condensing |
| Audio In | 3.5 mm jack (reserved); embedded HDMI and DP audio on inputs |
| Audio Out | 1 × 3.5 mm jack and 1 set of spring-loaded terminal blocks |
| Ethernet | 2 × Gigabit Ethernet, 2 × gigabit fiber |
| Expansion | 13 slots (2 input, 6 output, 5 either) |
| HDMI Outputs | 8 × HDMI 1.3, 2 × HDMI 2.0 |
| Input Voltage | 100–240 V AC, 50–60 Hz, 8 A, hot-swappable power supply |
| Inputs | Video input cards: 4-ch HDMI 1.4, 8-ch HDMI 1.4, 2-ch HDMI 2.0 or DP 1.2, 4-ch HDMI 2.0 or DP 1.2 |
| Outputs | Video output: 20-ch RJ-45 (LED sending), 8-ch HDMI 1.3, 2-ch HDMI 2.0 |
| Ports | HDMI × 1, USB 3.0 × 1, Type-C × 1, 3.5 mm audio in × 1 (reserved), 3.5 mm audio out × 1, RS-232 × 2, RS-485 × 2, Gigabit Ethernet × 2, gigabit fiber × 2 |
| Serial Port | RS-232 × 2, RS-485 × 2 |
| USB Ports | 1 × USB 3.0 |
| USB-C Ports | 1 × Type-C |
| Power Consumption | 550 W maximum |
| Dimensions | 484 x 222 x 416 mm (W x H x D) |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Operating Temperature | -10 to +50 °C |
| Rack Units | 5U |
| Weight | 14.93 kg (net); 20.6 kg (gross) |
