DahuaVideo WallsSKU DSCON3000-4U

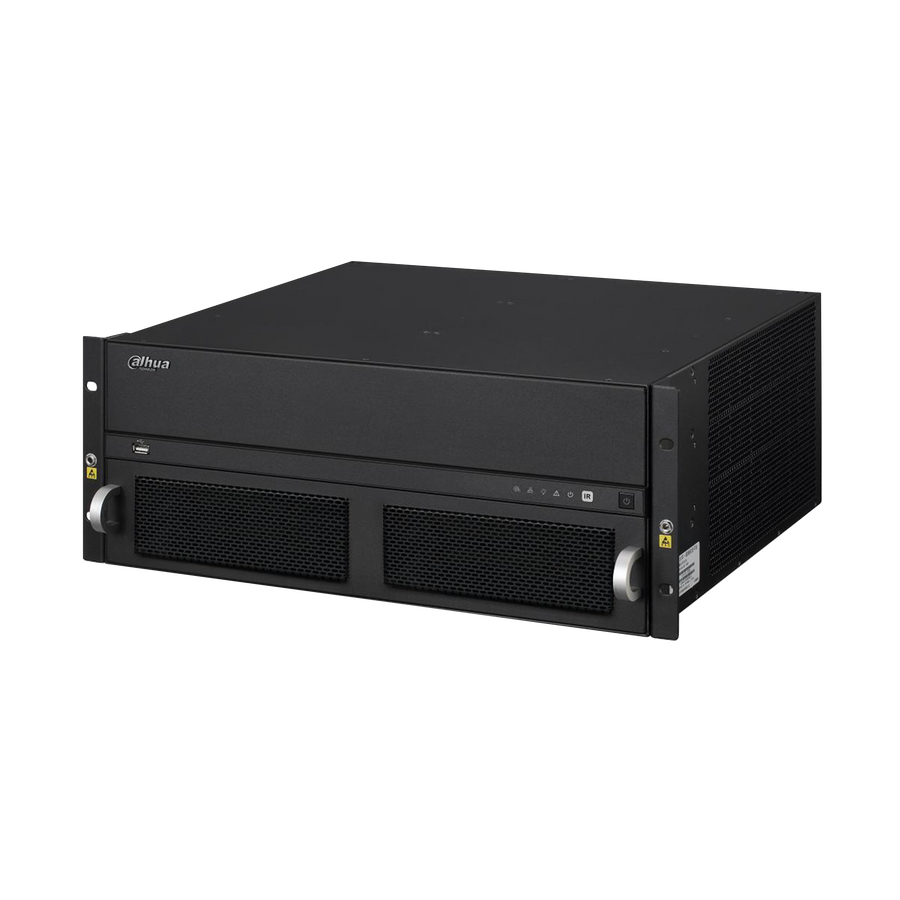

Dahua DSCON3000 4U ATCA Video Wall Controller – DSCON3000-4U
The Dahua DSCON3000-4U is a 4U ATCA video wall controller with pluggable input and output cards. When fully configured, it decodes 160 channels at 1080P and splices up to 80 LCD units. It handles analog, digital and IP sources in one chassis. Procure.ae supplies the Dahua DSCON3000-4U in the UAE for video wall projects.
The DSCON3000-4U is a 4U ATCA multi-screen controller for video walls. Its pluggable card design accepts analog and digital inputs, including HDMI, DVI-I, 3G-SDI and CVBS, and it decodes 160 channels at 1080P or 640 channels at D1 when fully configured. The IP HD matrix switches up to 1,024 IP inputs. It supports splicing of up to 80 LCD units, with zoom, merge, roam and overlay functions. The chassis uses a passive rear panel and an FPGA switch matrix for high image processing capacity.
The DSCON3000-4U suits matrix and video wall projects that combine analog, SDI and IP sources in one chassis. It is managed from a PC client, local GUI, network keyboard or iPad, and its serial ports provide console and control links. Power draw is 90 W minimum and 360 W fully configured, and the chassis weighs up to 20 kg. Compared with the 7U model, it supports 80 LCD units and 160-channel 1080P decoding, against 160 units and 320 channels.
Resolution
Up to 3840 x 2160 @ 30 fps (HDMI ou...
Type
Video Wall Controller
Weight
20 kg maximum (fully configured)
- ATCA Chassis
- Decoding Capacity
- Input and Output Cards
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
ATCA Chassis
19-inch standard 4U ATCA industry box with a high-speed passive rear panel.
02
Decoding Capacity
160 channels at 1080P or 640 channels at D1 decoding when fully configured.
03
Input and Output Cards
Pluggable HDMI, DVI-I, 3G-SDI and CVBS input cards with HDMI and SDI output cards.
04
Pluggable Card Design
Pluggable card modules allow flexible configuration of inputs and outputs.
05
Passive Rear Panel
High-speed passive rear panel design for reliable, stable operation.
06
Matrix and Splicing
Splicing, zoom, merge, roam and overlay functions across the video wall.
07
Redundant Power
Redundant power is optional, with a smart temperature-controlled fan.
08
Remote Operation
Remote reboot, upgrade and default-setting operations.
Specifications
21 specificationsGeneral
CompatibilityIPC, NVR, EVS and other network devices
ControlsPC client, local GUI, network keyboard, iPad
Key Features4U ATCA chassis, pluggable card modules, 160-ch 1080P decoding (fully configured), splicing up to 80 LCD units, redundant power optional, remote cast, remote reboot and upgrade
ModelDSCON3000-4U
TypeVideo Wall Controller
Display
ResolutionUp to 3840 x 2160 @ 30 fps (HDMI output card); 1920 x 1080 @ 60 Hz
Performance
Operating SystemEmbedded Linux
ProcessorPowerful microprocessor
Connectivity
Input Voltage115–230 V AC, 47–63 Hz (redundant power optional)
InputsInput cards: 2-ch HDMI 4K, 4-ch HDMI, 8-ch HDMI, 4-ch DVI-I, 4-ch 3G-SDI, 32-ch CVBS
OutputsOutput cards: 4-ch HDMI 1.4 (4K), 8-ch HDMI 1.3, 4-ch 3G-SDI, 8-ch HD-SDI
PortsRJ-45 × 2 (1000M), RS-232 × 4, RS-485 × 1, USB 2.0 × 3, USB 3.0 × 1
ProtocolsTCP, UDP, RTP, RTSP, RTCP
Serial Port4 × RS-232 (1 DB9, 3 RJ-45), 1 × RS-485
Power
Power Consumption90 W minimum system; 360 W fully configured
Physical
Dimensions482.6 x 177 x 437 mm (W x H x D)
Mounting19-inch standard 4U ATCA chassis
Operating Humidity10% to 90% RH
Operating Temperature-10 to +55 °C
Rack Units4U
Weight20 kg maximum (fully configured)
Downloads
Manufacturer documents for the Dahua DSCON3000 4U ATCA Video Wall Controller – DSCON3000-4U — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What inputs does the DSCON3000-4U accept?
It accepts analog, digital and IP sources. Pluggable input cards include 2-channel and 4-channel HDMI, 8-channel HDMI, 4-channel DVI-I, 4-channel 3G-SDI and 32-channel CVBS. It also supports IPC, NVR and EVS devices over its network ports.
How many screens can the DSCON3000-4U splice?
Up to 80 LCD display units can be spliced, and the chassis supports zoom, merge, roam and overlay functions across the wall. Splicing is managed through the PC client or local GUI.
Does the DSCON3000-4U support 4K signals?
Yes, on specific cards. The 2-channel HDMI 1.4 input card accepts 4K, and the 4-channel HDMI 1.4 output card lists 3840 x 2160 @ 30 fps output. Other input cards support 1080P and below.
Which control methods does it support?
It is controlled from a PC client, local GUI, network keyboard or iPad. Its two RJ-45 gigabit ports handle matrix control and preview, and remote reboot, upgrade and default-setting operations are also supported.
