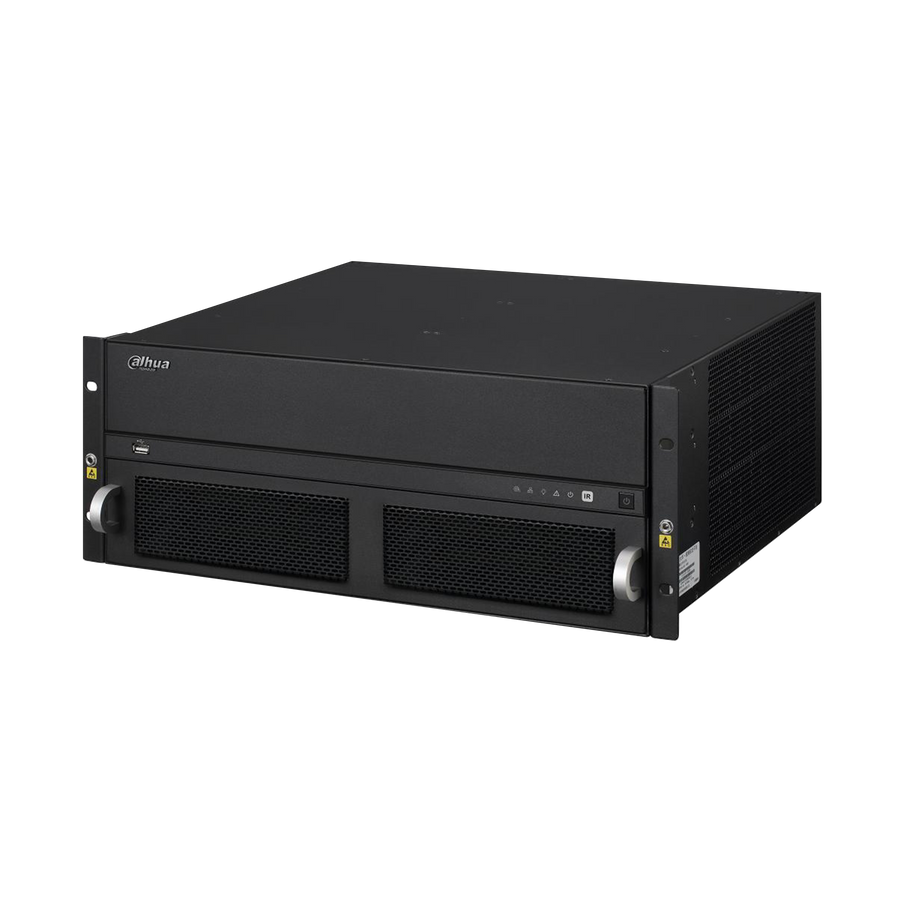

Dahua DSCON3000 4U ATCA Video Wall Controller – DSCON3000-4U

The Dahua DSCON3000-4U is a 4U ATCA video wall controller with pluggable input and output cards. When fully configured, it decodes 160 channels at 1080P and splices up to 80 LCD units. It handles analog, digital and IP sources in one chassis. Procure.ae supplies the Dahua DSCON3000-4U in the UAE for video wall projects.

The DSCON3000-4U is a 4U ATCA multi-screen controller for video walls. Its pluggable card design accepts analog and digital inputs, including HDMI, DVI-I, 3G-SDI and CVBS, and it decodes 160 channels at 1080P or 640 channels at D1 when fully configured. The IP HD matrix switches up to 1,024 IP inputs. It supports splicing of up to 80 LCD units, with zoom, merge, roam and overlay functions. The chassis uses a passive rear panel and an FPGA switch matrix for high image processing capacity.

The DSCON3000-4U suits matrix and video wall projects that combine analog, SDI and IP sources in one chassis. It is managed from a PC client, local GUI, network keyboard or iPad, and its serial ports provide console and control links. Power draw is 90 W minimum and 360 W fully configured, and the chassis weighs up to 20 kg. Compared with the 7U model, it supports 80 LCD units and 160-channel 1080P decoding, against 160 units and 320 channels.
