Dahua DSCON3000 2.5U ATCA Video Wall Controller – DSCON3000-M

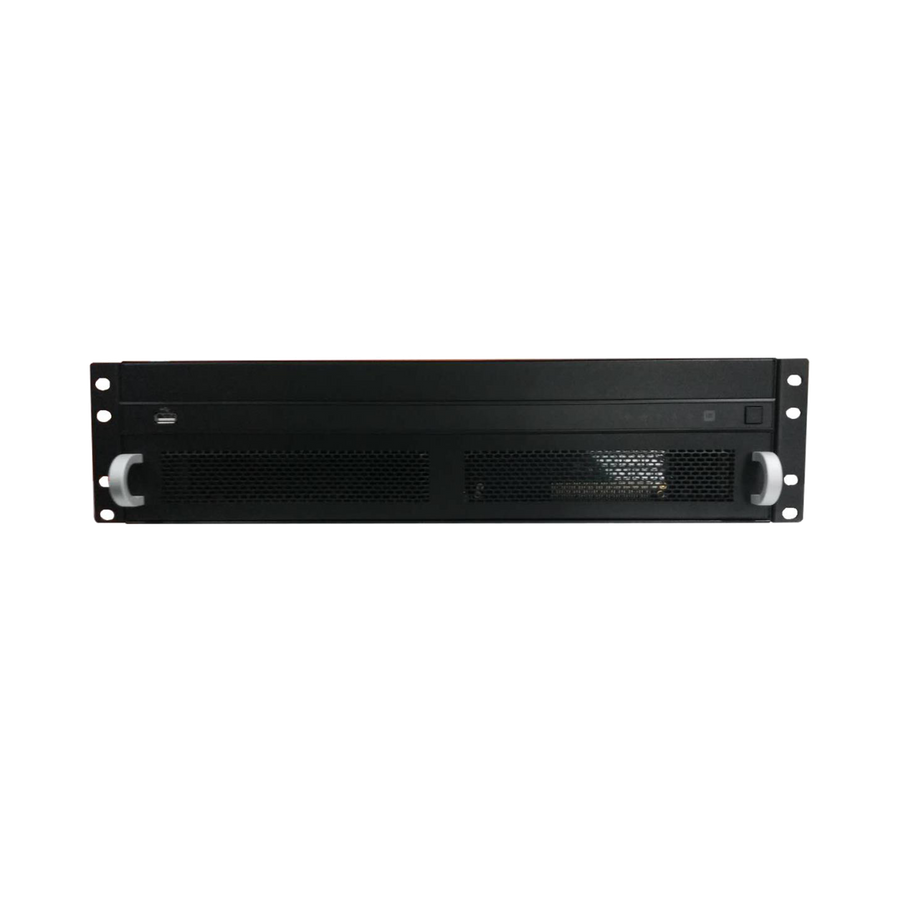

The Dahua DSCON3000-M is a 2.5U ATCA video wall controller that splices up to 32 LCD screens. It accepts HDMI, DVI-I, 3G-SDI and CVBS sources and can collect local 4K HDMI signals. It adds three extra outputs on its main control board. Procure.ae supplies the Dahua DSCON3000-M in the UAE.
The DSCON3000-M is a 2.5U ATCA multi-screen controller with splicing for up to 32 LCD screens and three additional outputs. Its main control board has 3-channel HDMI 1.3 outputs and collects 4K local HDMI signals. The chassis accepts HDMI, DVI-I, 3G-SDI and CVBS sources, and its main control board decodes 16 channels at 1080P @ 25 fps or 64 channels at D1 @ 25 fps. Video wall functions include splicing, zoom, merge, roam and overlay.
The DSCON3000-M suits video wall projects that need low-latency synchronization in a 2.5U chassis. It is controlled from a PC client, network keyboard or iPad, with three RS-232 ports and one RS-485 port for console and control. It draws 90 W minimum or 360 W fully configured, and weighs up to 12.5 kg fully configured. Compared with the 4U and 7U models, it supports 32 splicing screens against 80 and 160, in a smaller 2.5U chassis.
Resolution
Up to 3840 x 2160 @ 30 fps (max 2 c...
Type
Video Wall Controller
Weight
12.5 kg maximum (fully configured)
- ATCA Chassis
- Splicing Outputs
- Main Board Decoding
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
ATCA Chassis
19-inch standard 2.5U ATCA industry box with a high-speed passive rear panel.
02
Splicing Outputs
Splices up to 32 screens, plus 3 additional outputs.
03
Main Board Decoding
16 channels at 1080P @ 25 fps or 64 channels at D1 @ 25 fps on the main control board.
04
Local 4K Input
Collects 4K local signals through its HDMI interface.
05
Low-Latency Sync
Low-latency solution with synchronization across the splicing outputs.
06
Redundant Power
Redundant power is optional, with a smart temperature-controlled fan.
07
Network Control
Two RJ-45 gigabit ports for matrix control and preview, plus remote reboot and upgrade.
Specifications
18 specificationsGeneral
ControlsPC client, network keyboard, iPad
Key Features2.5U ATCA chassis, 32-screen splicing plus 3 extra outputs, local 4K HDMI collection, 2 RJ-45 gigabit ports, redundant power optional, low-latency synchronization
ModelDSCON3000-M
TypeVideo Wall Controller
Display
ResolutionUp to 3840 x 2160 @ 30 fps (max 2 channels); 1920 x 1080 @ 60 Hz
Performance
Operating SystemEmbedded Linux
Connectivity
Input Voltage115–230 V AC, 47–63 Hz (redundant power optional)
InputsInput cards: 2-ch HDMI 4K, 8-ch HDMI, 4-ch DVI-I, 4-ch 3G-SDI, 32-ch CVBS
OutputsOutput cards: 8-ch HDMI 1.3, 4-ch 3G-SDI; main control board: 3-ch HDMI 1.3
PortsRJ-45 × 2 (1000M), RS-232 × 3 (RJ-45), RS-485 × 1, USB 2.0 × 1, USB 3.0 × 2
Serial Port3 × RS-232 (RJ-45), 1 × RS-485
Power
Power Consumption90 W minimum system; 360 W fully configured
Physical
Dimensions482.6 x 111.9 x 436.8 mm (W x H x D)
Mounting19-inch standard 2.5U ATCA chassis
Operating Humidity10% to 90% RH
Operating Temperature-10 to +55 °C
Rack Units2.5U
Weight12.5 kg maximum (fully configured)
Downloads
Manufacturer documents for the Dahua DSCON3000 2.5U ATCA Video Wall Controller – DSCON3000-M — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How many screens can the DSCON3000-M splice?
Up to 32 LCD screens can be spliced, with 3 additional outputs. Zoom, merge, roam and overlay functions are supported across the wall, and splicing is managed through the PC client or network keyboard.
Does the DSCON3000-M support 4K inputs?
Yes. The 2-channel HDMI 1.4 input card supports 4K, and the chassis collects 4K local signals through its HDMI interface. The output channels are listed at up to 3840 x 2160 @ 30 fps for two channels.
Which sources can the DSCON3000-M accept?
It accepts HDMI, DVI-I, 3G-SDI and CVBS input cards, including 8-channel HDMI 1.4 and 32-channel CVBS, and supports analog and digital video input with matrix output. The main control board also provides three additional HDMI 1.3 outputs.
Can I control the DSCON3000-M over a network?
Yes. Its two RJ-45 gigabit ports handle matrix control and preview, and remote reboot, upgrade and default-setting operations are supported. Control is available from a PC client, network keyboard or iPad.
