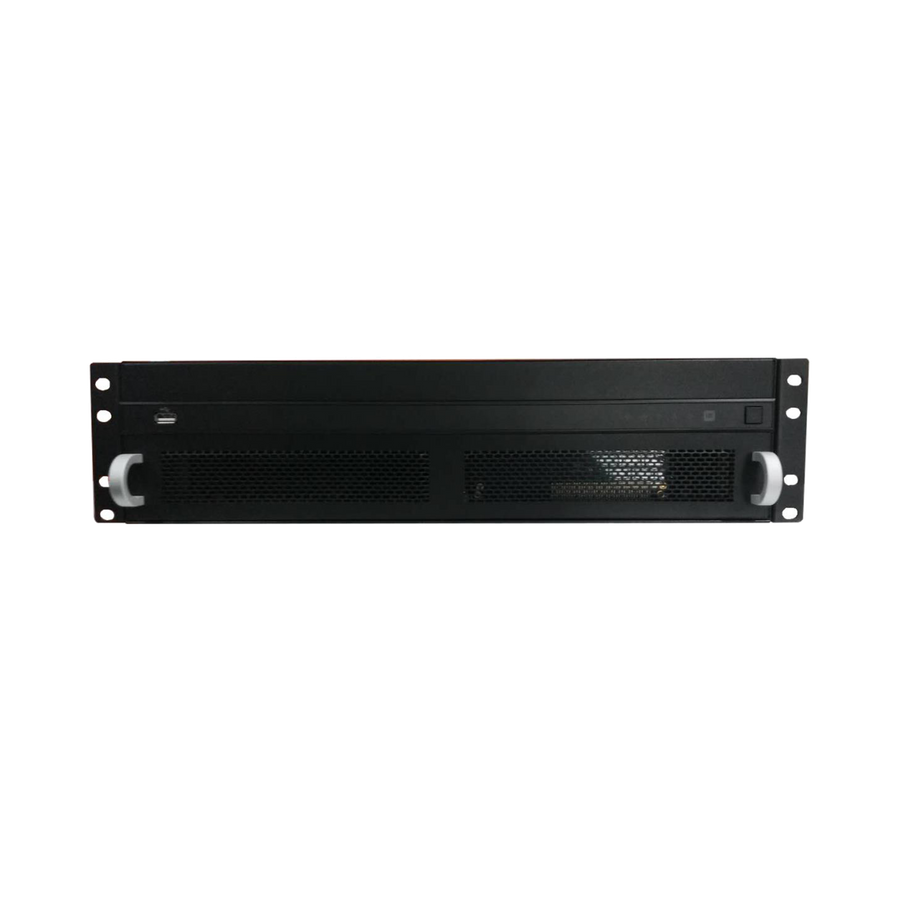

Dahua DSCON3000 2.5U ATCA Video Wall Controller – DSCON3000-M

The Dahua DSCON3000-M is a 2.5U ATCA video wall controller that splices up to 32 LCD screens. It accepts HDMI, DVI-I, 3G-SDI and CVBS sources and can collect local 4K HDMI signals. It adds three extra outputs on its main control board. Procure.ae supplies the Dahua DSCON3000-M in the UAE.

The DSCON3000-M is a 2.5U ATCA multi-screen controller with splicing for up to 32 LCD screens and three additional outputs. Its main control board has 3-channel HDMI 1.3 outputs and collects 4K local HDMI signals. The chassis accepts HDMI, DVI-I, 3G-SDI and CVBS sources, and its main control board decodes 16 channels at 1080P @ 25 fps or 64 channels at D1 @ 25 fps. Video wall functions include splicing, zoom, merge, roam and overlay.

The DSCON3000-M suits video wall projects that need low-latency synchronization in a 2.5U chassis. It is controlled from a PC client, network keyboard or iPad, with three RS-232 ports and one RS-485 port for console and control. It draws 90 W minimum or 360 W fully configured, and weighs up to 12.5 kg fully configured. Compared with the 4U and 7U models, it supports 32 splicing screens against 80 and 160, in a smaller 2.5U chassis.

Resolution

Up to 3840 x 2160 @ 30 fps (max 2 channels); 1920 x 1080 @ 60 Hz

Type

Video Wall Controller

Weight

12.5 kg maximum (fully configured)

Key features

ATCA Chassis

19-inch standard 2.5U ATCA industry box with a high-speed passive rear panel.

Splicing Outputs

Splices up to 32 screens, plus 3 additional outputs.

Main Board Decoding

16 channels at 1080P @ 25 fps or 64 channels at D1 @ 25 fps on the main control board.

Local 4K Input

Collects 4K local signals through its HDMI interface.

Low-Latency Sync

Low-latency solution with synchronization across the splicing outputs.

Redundant Power

Redundant power is optional, with a smart temperature-controlled fan.

Network Control

Two RJ-45 gigabit ports for matrix control and preview, plus remote reboot and upgrade.

Specifications

General
Controls	PC client, network keyboard, iPad
Key Features	2.5U ATCA chassis, 32-screen splicing plus 3 extra outputs, local 4K HDMI collection, 2 RJ-45 gigabit ports, redundant power optional, low-latency synchronization
Model	DSCON3000-M
Type	Video Wall Controller

Display
Resolution	Up to 3840 x 2160 @ 30 fps (max 2 channels); 1920 x 1080 @ 60 Hz

Performance
Operating System	Embedded Linux

Connectivity
Input Voltage	115–230 V AC, 47–63 Hz (redundant power optional)
Inputs	Input cards: 2-ch HDMI 4K, 8-ch HDMI, 4-ch DVI-I, 4-ch 3G-SDI, 32-ch CVBS
Outputs	Output cards: 8-ch HDMI 1.3, 4-ch 3G-SDI; main control board: 3-ch HDMI 1.3
Ports	RJ-45 × 2 (1000M), RS-232 × 3 (RJ-45), RS-485 × 1, USB 2.0 × 1, USB 3.0 × 2
Serial Port	3 × RS-232 (RJ-45), 1 × RS-485

Power
Power Consumption	90 W minimum system; 360 W fully configured

Physical
Dimensions	482.6 x 111.9 x 436.8 mm (W x H x D)
Mounting	19-inch standard 2.5U ATCA chassis
Operating Humidity	10% to 90% RH
Operating Temperature	-10 to +55 °C
Rack Units	2.5U
Weight	12.5 kg maximum (fully configured)
