DahuaVideo WallsSKU DSCON2100-0416H
Dahua DSCON2100 16-Output Video Wall Controller – DSCON2100-0416H

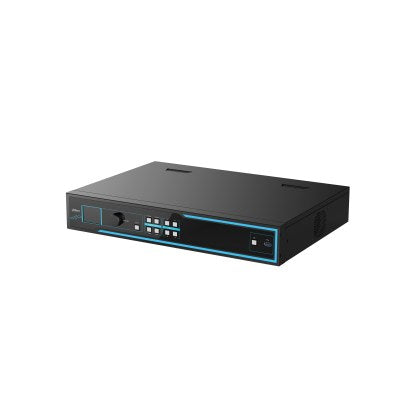

The Dahua DSCON2100-0416H is a 1.5U embedded multi-screen controller with 16 HDMI outputs. It splices up to 16 screens into one display and accepts four HDMI inputs, including one 4K input. Procure.ae supplies the Dahua DSCON2100-0416H across the UAE for video wall integrators.
The DSCON2100-0416H accepts two HDMI 2.0 and two HDMI 1.3 inputs in three modes: one 3840 × 2160 @ 60 Hz, two 3840 × 2160 @ 30 Hz, or four 1920 × 1080 @ 60 Hz. It outputs 16 HDMI signals at up to 1920 × 1080 @ 60 Hz and splices up to 16 screens. It opens up to 144 windows with roaming and supports 1, 4, 6, 8 and 9 splits plus custom M × N splits. H.264 and H.265 decoding reaches 32 MP @ 30 fps on one channel.
The controller suits fixed video walls that need scheme tours and background images. It is controlled from the front-panel LCD knob and shortcut keys, its RJ-45 network port, RS-232 and RS-485 ports, or USB. The manufacturer lists ONVIF, Hikvision Private and Dahua Private interoperability. It occupies 1.5U of rack space and runs on 100–240 V AC. Compared with the 10- and 12-output models, it has 16 HDMI outputs and splices up to 16 screens. Procure.ae supplies and installs it across the UAE and the wider MEA region.
Resolution
1920 x 1080 @ 60 Hz default output;...
Type
Video Wall Controller
Weight
4.64 kg (net); 7.36 kg (gross)
- Multi-Output HDMI
- Flexible HDMI Input
- Decoding Capacity
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Multi-Output HDMI
16-channel HDMI output, each at up to 1920 × 1080 @ 60 Hz.
02
Flexible HDMI Input
4K @ 60 Hz in 1-channel mode, 4K @ 30 Hz in 2-channel mode, or 1080p @ 60 Hz in 4-channel mode.
03
Decoding Capacity
1 channel at 32 MP @ 30 fps, 2 channels at 8 MP @ 60 fps, or 4 channels at 8 MP @ 30 fps, with H.264 and H.265.
04
Ultra-Wide Output
Output up to 3840 × 524 @ 60 Hz, using custom resolutions.
05
Splicing and Windows
Splices up to 16 screens, with M × N custom splits of nine or fewer windows per screen and 144 windows with roaming.
06
Scheme Tour
Scheduled schemes and tours with an adjustable tour interval.
07
Front Panel Control
LCD knob and shortcut keys for IP addresses, presets, tours, screen power and input status.
08
Background and OSD
High-definition background images, default background colour, and virtual LED text overlay.
Specifications
23 specificationsGeneral
ApplicationVideo wall splicing and multi-screen display management
Key Features16-ch HDMI output, 4 HDMI inputs in 3 modes, up to 16 screens spliced, 144 windows with roaming, H.264 and H.265 decoding, scheme tour
ModelDSCON2100-0416H
TypeVideo Wall Controller
Display
Resolution1920 x 1080 @ 60 Hz default output; custom width and height 128 to 3,840 px
Performance
Operating SystemEmbedded Linux
ProcessorHigh-performance embedded processor
Audio
Audio CodecsPCM, G.711
Audio Out1 × 3.5 mm
Connectivity
Ethernet1 × RJ-45, 10/100/1,000 Mbps
HDMI Inputs2 × HDMI 2.0, 2 × HDMI 1.3
HDMI Outputs16 × HDMI 1.3
Input Voltage100–240 V AC, 50/60 Hz
PortsHDMI out × 16, HDMI in × 4, RJ-45 network × 1, RS-232 × 2, RS-485 × 1, USB × 3, 3.5 mm audio out × 1
ProtocolsONVIF, Hikvision Private, Dahua Private
Serial PortRS-232 × 2, RS-485 × 1
USB Ports3 × USB
Power
Power Consumption60 W maximum
Physical
Dimensions440 x 66 x 321 mm (W x H x D)
Operating Humidity10% to 95% RH, non-condensing
Operating Temperature-10 to +55 °C
Rack Units1.5U
Weight4.64 kg (net); 7.36 kg (gross)
Downloads
Manufacturer documents for the Dahua DSCON2100 16-Output Video Wall Controller – DSCON2100-0416H — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
How many screens can the DSCON2100-0416H splice?
Up to 16 screens can be spliced together. Each screen can be split into up to nine windows, and M × N custom splits are supported where M × N is nine or less. The controller opens up to 144 windows with roaming across the wall.
Does the DSCON2100-0416H support 4K inputs?
Yes. Depending on the selected mode, it accepts one 3840 × 2160 @ 60 Hz source, two 3840 × 2160 @ 30 Hz sources, or four 1920 × 1080 @ 60 Hz sources. Custom EDID settings can be applied to each input port.
Which camera and platform protocols does the DSCON2100-0416H support?
It lists ONVIF, Hikvision Private and Dahua Private interoperability, plus PCM and G.711 audio compression. Confirm integration with your specific camera or platform model before installation, so the project is set up correctly from the start.
Can the DSCON2100-0416H be controlled over a network?
Yes. Its RJ-45 port provides 10/100/1,000 Mbps Ethernet for control and preview. RS-232 and RS-485 ports are also provided, and the front-panel LCD knob and shortcut keys support local changes.
