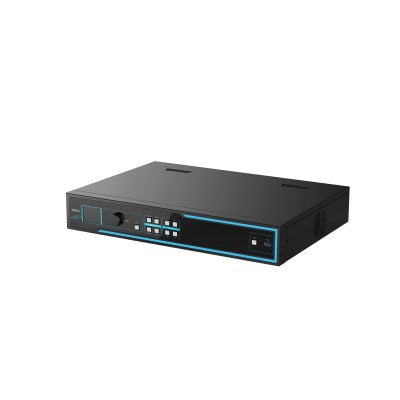

Dahua DSCON2100 16-Output Video Wall Controller – DSCON2100-0416H

The Dahua DSCON2100-0416H is a 1.5U embedded multi-screen controller with 16 HDMI outputs. It splices up to 16 screens into one display and accepts four HDMI inputs, including one 4K input. Procure.ae supplies the Dahua DSCON2100-0416H across the UAE for video wall integrators.

The DSCON2100-0416H accepts two HDMI 2.0 and two HDMI 1.3 inputs in three modes: one 3840 × 2160 @ 60 Hz, two 3840 × 2160 @ 30 Hz, or four 1920 × 1080 @ 60 Hz. It outputs 16 HDMI signals at up to 1920 × 1080 @ 60 Hz and splices up to 16 screens. It opens up to 144 windows with roaming and supports 1, 4, 6, 8 and 9 splits plus custom M × N splits. H.264 and H.265 decoding reaches 32 MP @ 30 fps on one channel.

The controller suits fixed video walls that need scheme tours and background images. It is controlled from the front-panel LCD knob and shortcut keys, its RJ-45 network port, RS-232 and RS-485 ports, or USB. The manufacturer lists ONVIF, Hikvision Private and Dahua Private interoperability. It occupies 1.5U of rack space and runs on 100–240 V AC. Compared with the 10- and 12-output models, it has 16 HDMI outputs and splices up to 16 screens. Procure.ae supplies and installs it across the UAE and the wider MEA region.
