Biamp TesiraFORTÉ X 1600 meeting room DSP 920-00093-00001Biamp
Meeting Room SolutionsSKU TesiraFORTÉ X 1600

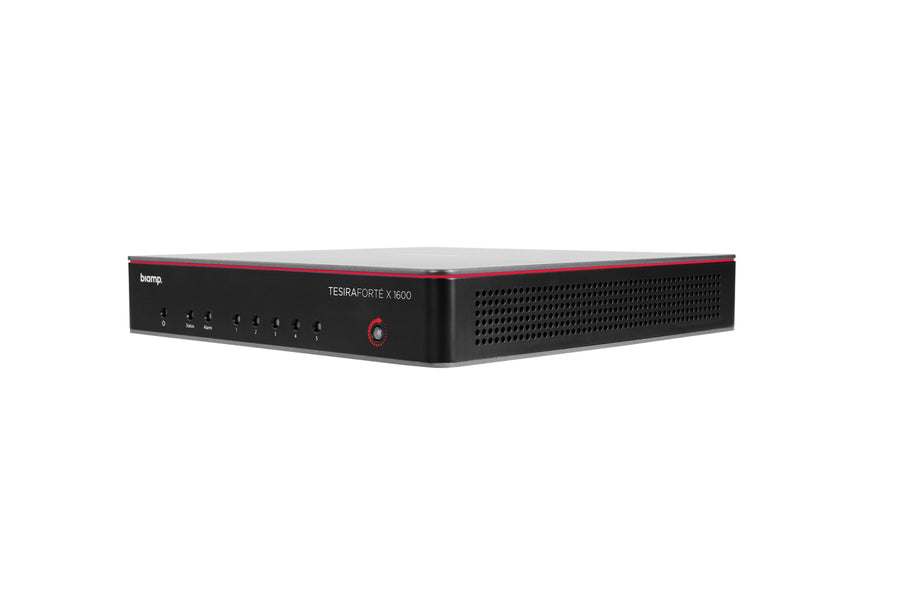

Biamp TesiraFORTÉ X 1600 Meeting Room DSP – 920-00093-00001

The Biamp TesiraFORTÉ X 1600 is a meeting room DSP for medium and large collaboration spaces, with Microsoft Teams Rooms and Zoom support. It provides 16 assignable AEC channels, 4 PoE+ ports and AVB, Dante and AES67 networked audio. Procure.ae supplies the TesiraFORTÉ X 1600 across the UAE.

The TesiraFORTÉ X 1600 supports up to 128×128 AVB channels and 32×32 Dante channels, with AES67 interoperability. It has 16 assignable AEC channels that provide echo-free audio across analog and digital inputs. Four PoE+ Ethernet ports (IEEE 802.3at Class 4) power microphones, control panels and conferencing peripherals. Built-in SIP VoIP and IEEE 802.1X authentication cover telephony and network security. Frequency response is 20 Hz to 20 kHz and dynamic range exceeds 108 dB.

The X 1600 fits medium and large meeting rooms that run Microsoft Teams Rooms or Zoom on a networked audio system. Workplace Control is built in as a software-based control solution, and Biamp Launch analyzes and tunes room acoustics automatically. Its power consumption is up to 150 W at 100–240 V AC. The TesiraFORTÉ X 800 offers eight AEC channels and the X 400 offers four.

Type
Meeting Room DSP
Weight
0.86 kg
  • Workplace Control built in
  • UC platform compatibility
  • Networked audio workflows
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
Workplace Control built in
Workplace Control is included as a software-based control solution for the room.
02
UC platform compatibility
Microsoft Teams Rooms and Zoom support enables integration into enterprise conferencing environments.
03
Networked audio workflows
Up to 128×128 AVB channels and 32×32 Dante channels with AES67 interoperability.
04
PoE+ peripheral power
Four PoE+ Ethernet ports (IEEE 802.3at Class 4) power microphones, control panels and peripherals.
05
Echo-free clarity
16 assignable AEC channels provide echo-free audio across analog and digital inputs.
06
Network security
IEEE 802.1X authentication safeguards the network environment.
07
VoIP integration
A built-in SIP interface over Gigabit Ethernet supports standards-based telephony.
08
Automated room tuning
Biamp Launch analyzes and tunes room acoustics for optimized audio performance.

Specifications

17 specifications
General
Key FeaturesWorkplace Control, Teams Rooms and Zoom, 16 AEC channels, AVB, Dante, AES67, 4 PoE+ ports, IEEE 802.1X, SIP VoIP, Biamp Launch
ModelTesiraFORTÉ X 1600
TypeMeeting Room DSP
Audio
Channels128×128 AVB, 32×32 Dante
Dynamic Range> 108 dB
Frequency Response20 Hz to 20 kHz (+0.25 dB / -0.5 dB)
Impedance8 kΩ (balanced)
Microphone16 assignable AEC channels
Phantom Power+48 V DC (7 mA per input)
THD< 0.006% (0 dB gain, +4 dBu input)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PoE4 PoE+ ports (IEEE 802.3at Class 4)
ProtocolsAVB, Dante, AES67, SIP VoIP, IEEE 802.1X
Power
Power Consumption< 150 W
Physical
Operating Temperature0 to 40 °C
Weight0.86 kg
Compliance
CertificationsCisco Verified, Microsoft Teams Certified, Zoom Certified, FCC Part 15B, ICES-003, CE, UL and C-UL, RCM, RoHS, TAA compliant

Downloads

Manufacturer documents for the Biamp TesiraFORTÉ X 1600 Meeting Room DSP – 920-00093-00001 — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Does the TesiraFORTÉ X 1600 work with Microsoft Teams Rooms and Zoom?
Yes. The X 1600 is listed as Microsoft Teams Certified and Zoom Certified in the manufacturer's specifications, and it is designed for enterprise conferencing environments. Workplace Control is built in, so room control runs in software on the DSP.
How many AEC channels and network audio channels does it provide?
It has 16 assignable AEC channels, 128×128 AVB channels and 32×32 Dante channels, with AES67 interoperability for networked audio. The 16 AEC channels cover analog and digital inputs, and the four PoE+ ports power conferencing peripherals alongside them.
Can the TesiraFORTÉ X 1600 power microphones and control panels?
Yes. Four PoE+ Ethernet ports (IEEE 802.3at Class 4) power microphones, control panels and conferencing peripherals. The PoE+ ports follow IEEE 802.3at Class 4, and Biamp Launch can tune room acoustics after installation.
What power does the TesiraFORTÉ X 1600 need?
It runs on 100–240 V AC at 50/60 Hz and draws less than 150 W. It weighs 0.86 kg (1.9 lbs) and operates from 0 to 40 °C. It draws less than 150 W and provides 48 V DC phantom power at 7 mA per input for microphones.
