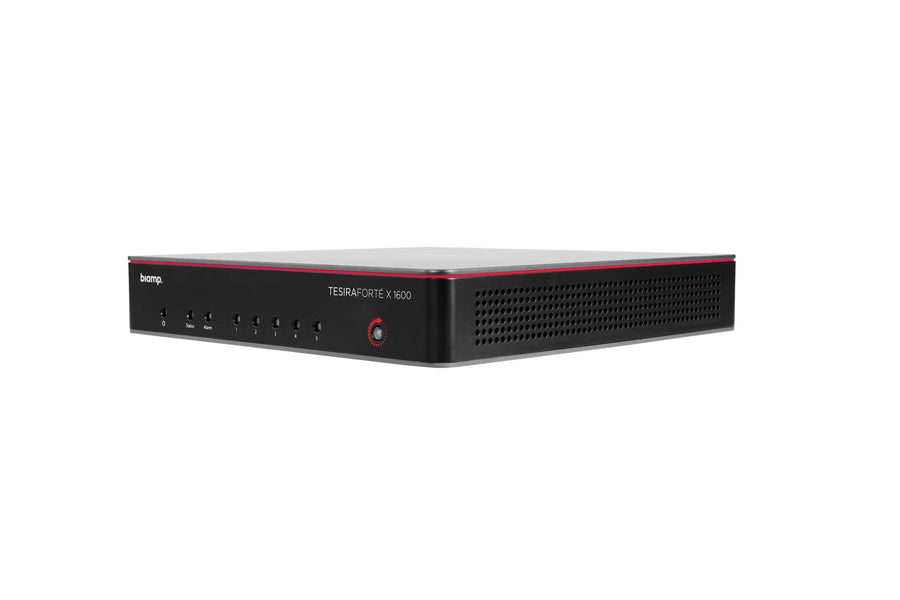

Biamp TesiraFORTÉ X 1600 Meeting Room DSP – 920-00093-00001

Biamp TesiraFORTÉ X 1600 Meeting Room DSP – 920-00093-00001

The Biamp TesiraFORTÉ X 1600 is a meeting room DSP for medium and large collaboration spaces, with Microsoft Teams Rooms and Zoom support. It provides 16 assignable AEC channels, 4 PoE+ ports and AVB, Dante and AES67 networked audio. Procure.ae supplies the TesiraFORTÉ X 1600 across the UAE.

The TesiraFORTÉ X 1600 supports up to 128×128 AVB channels and 32×32 Dante channels, with AES67 interoperability. It has 16 assignable AEC channels that provide echo-free audio across analog and digital inputs. Four PoE+ Ethernet ports (IEEE 802.3at Class 4) power microphones, control panels and conferencing peripherals. Built-in SIP VoIP and IEEE 802.1X authentication cover telephony and network security. Frequency response is 20 Hz to 20 kHz and dynamic range exceeds 108 dB.

The X 1600 fits medium and large meeting rooms that run Microsoft Teams Rooms or Zoom on a networked audio system. Workplace Control is built in as a software-based control solution, and Biamp Launch analyzes and tunes room acoustics automatically. Its power consumption is up to 150 W at 100–240 V AC. The TesiraFORTÉ X 800 offers eight AEC channels and the X 400 offers four.

Type
Meeting Room DSP
Weight
0.86 kg

Key features

01
Workplace Control built in
Workplace Control is included as a software-based control solution for the room.
02
UC platform compatibility
Microsoft Teams Rooms and Zoom support enables integration into enterprise conferencing environments.
03
Networked audio workflows
Up to 128×128 AVB channels and 32×32 Dante channels with AES67 interoperability.
04
PoE+ peripheral power
Four PoE+ Ethernet ports (IEEE 802.3at Class 4) power microphones, control panels and peripherals.
05
Echo-free clarity
16 assignable AEC channels provide echo-free audio across analog and digital inputs.
06
Network security
IEEE 802.1X authentication safeguards the network environment.
07
VoIP integration
A built-in SIP interface over Gigabit Ethernet supports standards-based telephony.
08
Automated room tuning
Biamp Launch analyzes and tunes room acoustics for optimized audio performance.

Specifications

General
Key FeaturesWorkplace Control, Teams Rooms and Zoom, 16 AEC channels, AVB, Dante, AES67, 4 PoE+ ports, IEEE 802.1X, SIP VoIP, Biamp Launch
ModelTesiraFORTÉ X 1600
TypeMeeting Room DSP
Audio
Channels128×128 AVB, 32×32 Dante
Dynamic Range> 108 dB
Frequency Response20 Hz to 20 kHz (+0.25 dB / -0.5 dB)
Impedance8 kΩ (balanced)
Microphone16 assignable AEC channels
Phantom Power+48 V DC (7 mA per input)
THD< 0.006% (0 dB gain, +4 dBu input)
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
PoE4 PoE+ ports (IEEE 802.3at Class 4)
ProtocolsAVB, Dante, AES67, SIP VoIP, IEEE 802.1X
Power
Power Consumption< 150 W
Physical
Operating Temperature0 to 40 °C
Weight0.86 kg
Compliance
CertificationsCisco Verified, Microsoft Teams Certified, Zoom Certified, FCC Part 15B, ICES-003, CE, UL and C-UL, RCM, RoHS, TAA compliant
