BiampMeeting Room SolutionsSKU Tesira AMP-450BP

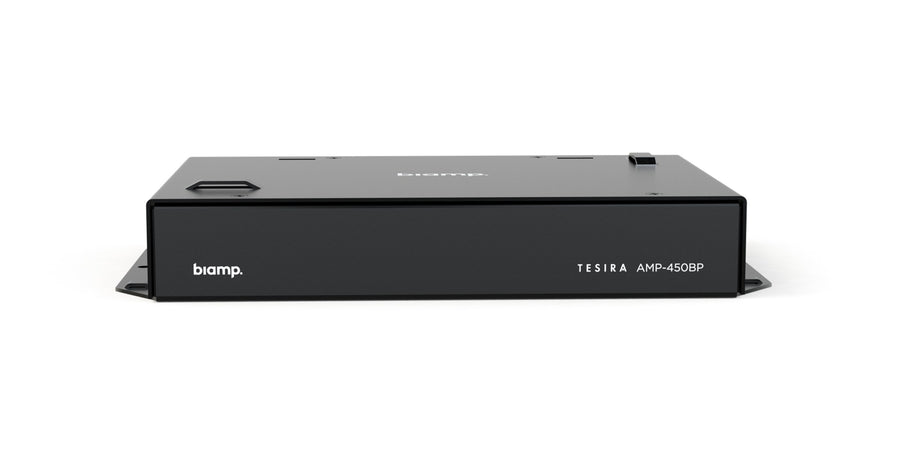

Biamp Tesira 4-Channel PoE+ Speaker Amplifier – AMP-450BP
The Biamp Tesira AMP-450BP is a 4-channel, AVB/TSN enabled amplifier powered by PoE+. It fits on top of the Desono C-IC6 speaker or mounts separately, with 3 W continuous per channel. Procure.ae supplies the Biamp Tesira AMP-450BP across the UAE for conference and ceiling speaker systems.
The AMP-450BP drives four channels, with continuous output of 15 W on one channel, 7 W on two channels and 3 W when all four are driven, at 4 Ω or 8 Ω. Burst output reaches 50 W per channel at 4 Ω and 30 W at 8 Ω. It is a Class D amplifier with an internal limiter and software-selectable power versus channel count. Total harmonic distortion is below 0.3% at continuous power.
The amplifier is designed to fit on top of the Desono C-IC6 speaker using a backpack, or to be mounted separately. Four RJ-45 connectors allow termination-free connections to compatible speakers such as the C-IC6. PoE+ (IEEE 802.3at Class 4, 30 W) supplies power over the Ethernet cable, and an audible locate function on the front panel helps identify the unit.
Type
Speaker Amplifier
Weight
0.7 kg
- PoE+ power
- Four RJ-45 connectors
- Four channels
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
PoE+ power
Powered by PoE+ (IEEE 802.3at Class 4, 30 W).
02
Four RJ-45 connectors
Termination-free connections to compatible speakers such as the Desono C-IC6.
03
Four channels
Four-channel Class D amplifier with 3 W continuous per channel.
04
Burst output
Burst power up to 50 W per channel at 4 Ω or 30 W at 8 Ω.
05
Speaker backpack
Fits on top of the C-IC6 speaker, with a BPAK accessory included.
06
Audible locate
An audible locate function is available on the front panel.
07
Software-selectable output
Power versus channel count is set in Tesira software.
08
AVB/TSN networking
AVB/TSN enabled over Gigabit Ethernet RJ-45.
Specifications
16 specificationsGeneral
CompatibilityDesono C-IC6 speaker
Key Features4-channel Class D, PoE+ powered, four RJ-45 connectors, speaker backpack, audible locate, AVB/TSN, internal limiter, TAA compliant
ModelTesira AMP-450BP
TypeSpeaker Amplifier
Audio
Channels4
Dynamic Range> 90 dB
Frequency Response20 Hz to 20 kHz, ±1 dB
Power OutputContinuous: 15 W (1 channel), 7 W (2 channels), 3 W (4 channels); burst 50 W per channel at 4 Ω
THD<0.3%
Connectivity
EthernetGigabit Ethernet, RJ-45 (Cat 5e and above)
ProtocolsAVB/TSN
Power
Power SourcePoE+ (IEEE 802.3at Class 4, 30 W)
Physical
Operating Temperature0 to 40 °C
Weight0.7 kg
Compliance
CertificationsUL, C-UL, FCC Part 15B, CE, RoHS
Warranty5 years
Downloads
Manufacturer documents for the Biamp Tesira 4-Channel PoE+ Speaker Amplifier – AMP-450BP — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Which speakers does the Tesira AMP-450BP work with?
The AMP-450BP is designed for use with the Desono C-IC6 ceiling speaker. Its four RJ-45 connectors allow termination-free connections to compatible speakers, according to the manufacturer. The specifications do not list other compatible speaker models.
Does the AMP-450BP need a separate power supply?
No. The AMP-450BP is powered by PoE+ (IEEE 802.3at Class 4, 30 W), so it draws power from the Ethernet connection. Confirm that the switch port supplies PoE+ Class 4 before installation.
Can the AMP-450BP be mounted on a speaker?
Yes. The amplifier fits on top of the Desono C-IC6 speaker via a backpack, and a BPAK accessory is included. It can also be mounted separately. The manufacturer's specifications do not state a mounting method for other speakers.
How much output power does each channel deliver?
Continuous output is 15 W with one channel driven, 7 W with two channels driven and 3 W with all four channels driven, at 4 Ω or 8 Ω. Burst output reaches 50 W per channel at 4 Ω and 30 W at 8 Ω.
