BiampMeeting Room SolutionsSKU EasyConnect MPX 100
Biamp EasyConnect BYOM AV Switch and Port Expander – MPX 100

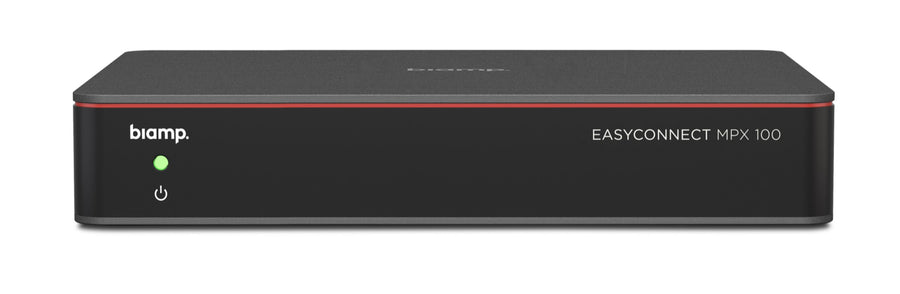

The Biamp EasyConnect MPX 100 is a BYOM AV switching device and port expander for UC meeting rooms. It switches a room display and USB peripherals between a dedicated UC platform and a BYOM laptop, with HDMI 2.0 video up to 4K and Gigabit Ethernet. Procure.ae supplies the EasyConnect MPX 100 across the UAE.
The MPX 100 mounts behind the display, and its cables run to the table. It provides USB and HDMI connectivity that needs no drivers, and it supports Windows and macOS laptops. The unit adds USB ports for cameras, microphones or touchscreens. HDMI 2.0 supports displays up to 4K resolution. It runs from a 24 V, 3.75 A power supply with a lock connector and draws less than 150 W from 100–240 V AC.
The MPX 100 adds BYOM calls to UC rooms and works with Biamp Parlé bars, whose USB-C port receives power and updates from the MPX 100. It passes through to other Biamp AV solutions and allows firmware updates on connected Biamp devices. Administrators can monitor and manage the MPX 100 and room peripherals through SageVue or a web-based console. The unit is TAA compliant.
Type
BYOM AV Switching Device
Weight
0.86 kg
- BYOM calls
- Display and USB switching
- HDMI 2.0 with no drivers
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
BYOM calls
Adds BYOM calls to UC rooms.
02
Display and USB switching
Switches the room display and USB peripherals between the dedicated UC platform and a BYOM laptop.
03
HDMI 2.0 with no drivers
HDMI 2.0 for displays up to 4K, with USB and HDMI connectivity that needs no drivers.
04
Port expansion
Adds USB ports for cameras, microphones or touchscreens.
05
SageVue monitoring
SageVue or web-based monitoring and administration of the MPX 100 and room peripherals.
06
5-year warranty
The manufacturer lists a 5-year warranty, and the unit is TAA compliant.
Specifications
13 specificationsGeneral
Key FeaturesBYOM and UC switching, HDMI 2.0 up to 4K, USB port expansion, Gigabit Ethernet, Windows and macOS support, TAA compliant
ModelEasyConnect MPX 100
TypeBYOM AV Switching Device
What's in the Box2 × USB 3.0 1 m cables, 1 × USB 3.0 5 m Type B to C active cable, 2 × HDMI 2.0 1 m cables, 1 × HDMI 2.0 5 m cable, 2 cable sliders, mounting plate with cable retainer
Connectivity
ConnectivityHDMI 2.0 (4K60), USB 3.0, RJ45 Gigabit Ethernet
Input Voltage100–240 V AC, 50/60 Hz
Power
Power Consumption< 150 W
Power Source24 V, 3.75 A (lock connector)
Physical
MountingBehind display, mounting plate with cable retainer
Operating Temperature0 to 40 °C
Weight0.86 kg
Compliance
CertificationsTAA compliant, FCC Part 15B, ICES-003 (A), CE, UL/C-UL, RCM, RoHS
Warranty5 years
Downloads
Manufacturer documents for the Biamp EasyConnect BYOM AV Switch and Port Expander – MPX 100 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the EasyConnect MPX 100?
The EasyConnect MPX 100 is a BYOM AV switching device and port expander for UC meeting rooms. It switches a room display and USB peripherals between a dedicated UC platform and a BYOM laptop, and it supports HDMI 2.0 up to 4K. The manufacturer lists a 5-year warranty.
Does the MPX 100 work with Windows and macOS laptops?
Yes. The manufacturer states that the MPX 100 supports Windows and macOS laptops. USB and HDMI connectivity requires no drivers, and the unit adds USB ports for cameras, microphones or touchscreens.
How does the MPX 100 mount?
The MPX 100 mounts behind the display and includes a mounting plate with a cable retainer. Its cables run from the unit to the table, and the kit includes two cable sliders for tabletop USB and HDMI wire management.
