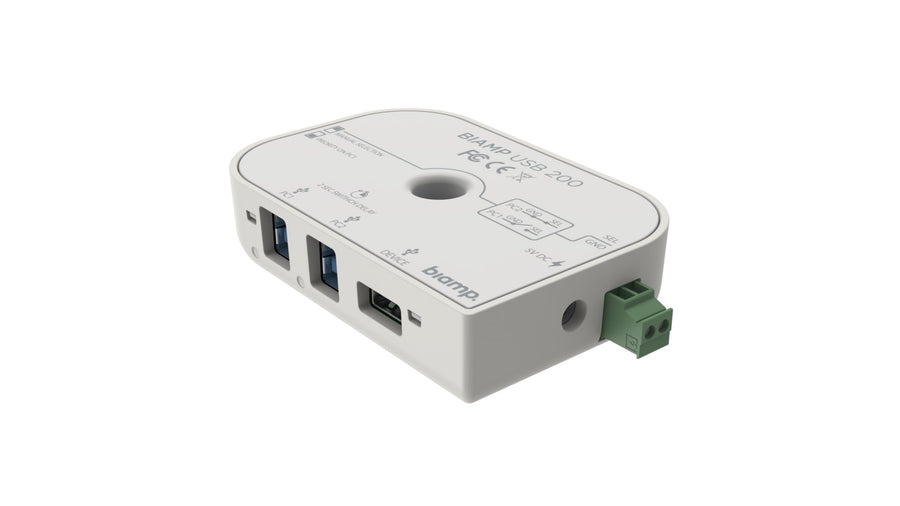

Biamp EasyConnect 2x1 USB Switch – USB 200
The Biamp EasyConnect USB 200 is a 2x1 USB switch for switching between an in-room computer and a laptop. It supports USB 2.0 and USB 3.0, with configurable automatic priority switching and a built-in USB extender. Procure.ae supplies the EasyConnect USB 200 across the UAE.
The USB 200 has two USB 3.0 Type-B computer ports and one USB 3.0 Type-A device port, powered at 5 V DC and 15 W. Configurable automatic priority switching selects the second computer when it is connected, and manual switching is supported through a third-party control system. A 2-pin, 0.3-inch Euroblock contact-closure input provides general purpose input. The power switch delay cuts power for two seconds when switching between computers.
The built-in USB extender lengthens USB 2.0 cables up to 17 feet (5 m) and USB 3.0 cables up to 10 feet (3 m) on each side of the switch. The unit weighs 75 g (0.2 lbs) and operates from 0 to 40 °C. It is TAA compliant, carries CE and RoHS marks, and is backed by a 5-year warranty.
Type
2x1 USB Switch
Weight
75 g
- Two-computer switching
- USB 2.0 and 3.0 support
- Automatic priority switching
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
Two-computer switching
Switches between an in-room computer and a laptop.
02
USB 2.0 and 3.0 support
Works with both USB 2.0 and USB 3.0 connections.
03
Automatic priority switching
Configurable priority when a second computer is connected.
04
Built-in USB extender
Extends USB 2.0 cables to 5 m and USB 3.0 cables to 3 m on each side.
05
Third-party control
Manual switching through a third-party control system is supported.
06
5-year warranty
The manufacturer lists a 5-year warranty.
Specifications
10 specificationsGeneral
ControlsAutomatic priority switching, manual switching via third-party control system
Key Features2x1 switching, USB 2.0 and 3.0 support, automatic priority switching, built-in USB extender, third-party control, TAA compliant
ModelEasyConnect USB 200
Type2x1 USB Switch
Connectivity
PortsUSB 3.0 Type-B × 2 (computers), USB 3.0 Type-A × 1 (device), contact-closure input × 1
Power
Power Source5 V DC, 15 W
Physical
Operating Temperature0 to 40 °C
Weight75 g
Compliance
CertificationsTAA compliant, CE, RoHS
Warranty5 years
Downloads
Manufacturer documents for the Biamp EasyConnect 2x1 USB Switch – USB 200 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the EasyConnect USB 200?
The EasyConnect USB 200 is a 2x1 USB switch for switching between an in-room computer and a laptop. It supports USB 2.0 and USB 3.0, includes a built-in USB extender, and carries a 5-year warranty. The manufacturer also lists TAA compliance.
Does the USB 200 support USB 3.0?
Yes. The USB 200 supports both USB 2.0 and USB 3.0, with two USB 3.0 Type-B computer ports and one USB 3.0 Type-A device port. The built-in extender allows longer runs for each version on either side of the switch.
How far can the USB cables run from the switch?
The built-in USB extender extends USB 2.0 cables up to 17 feet (5 m) and USB 3.0 cables up to 10 feet (3 m) on each side of the switch. The manufacturer's specifications do not state a cable limit for runs without the extender.
