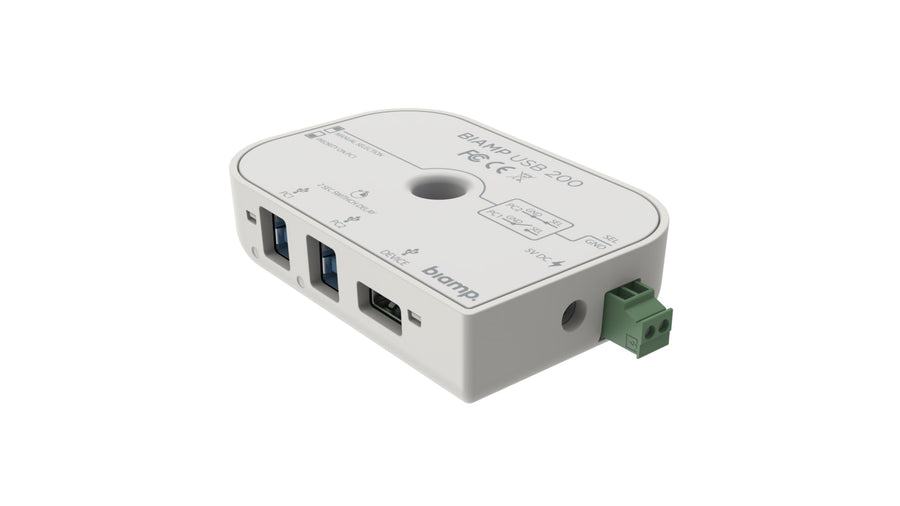

Biamp EasyConnect 2x1 USB Switch – USB 200

The Biamp EasyConnect USB 200 is a 2x1 USB switch for switching between an in-room computer and a laptop. It supports USB 2.0 and USB 3.0, with configurable automatic priority switching and a built-in USB extender. Procure.ae supplies the EasyConnect USB 200 across the UAE.

The USB 200 has two USB 3.0 Type-B computer ports and one USB 3.0 Type-A device port, powered at 5 V DC and 15 W. Configurable automatic priority switching selects the second computer when it is connected, and manual switching is supported through a third-party control system. A 2-pin, 0.3-inch Euroblock contact-closure input provides general purpose input. The power switch delay cuts power for two seconds when switching between computers.

The built-in USB extender lengthens USB 2.0 cables up to 17 feet (5 m) and USB 3.0 cables up to 10 feet (3 m) on each side of the switch. The unit weighs 75 g (0.2 lbs) and operates from 0 to 40 °C. It is TAA compliant, carries CE and RoHS marks, and is backed by a 5-year warranty.

Type

2x1 USB Switch

Weight

75 g

Key features

Two-computer switching

Switches between an in-room computer and a laptop.

USB 2.0 and 3.0 support

Works with both USB 2.0 and USB 3.0 connections.

Automatic priority switching

Configurable priority when a second computer is connected.

Built-in USB extender

Extends USB 2.0 cables to 5 m and USB 3.0 cables to 3 m on each side.

Third-party control

Manual switching through a third-party control system is supported.

5-year warranty

The manufacturer lists a 5-year warranty.

Specifications

General
Controls	Automatic priority switching, manual switching via third-party control system
Key Features	2x1 switching, USB 2.0 and 3.0 support, automatic priority switching, built-in USB extender, third-party control, TAA compliant
Model	EasyConnect USB 200
Type	2x1 USB Switch

Connectivity
Ports	USB 3.0 Type-B × 2 (computers), USB 3.0 Type-A × 1 (device), contact-closure input × 1

Power
Power Source	5 V DC, 15 W

Physical
Operating Temperature	0 to 40 °C
Weight	75 g

Compliance
Certifications	TAA compliant, CE, RoHS
Warranty	5 years
