BiampMeeting Room SolutionsSKU Desono C-IC6LP-TAA

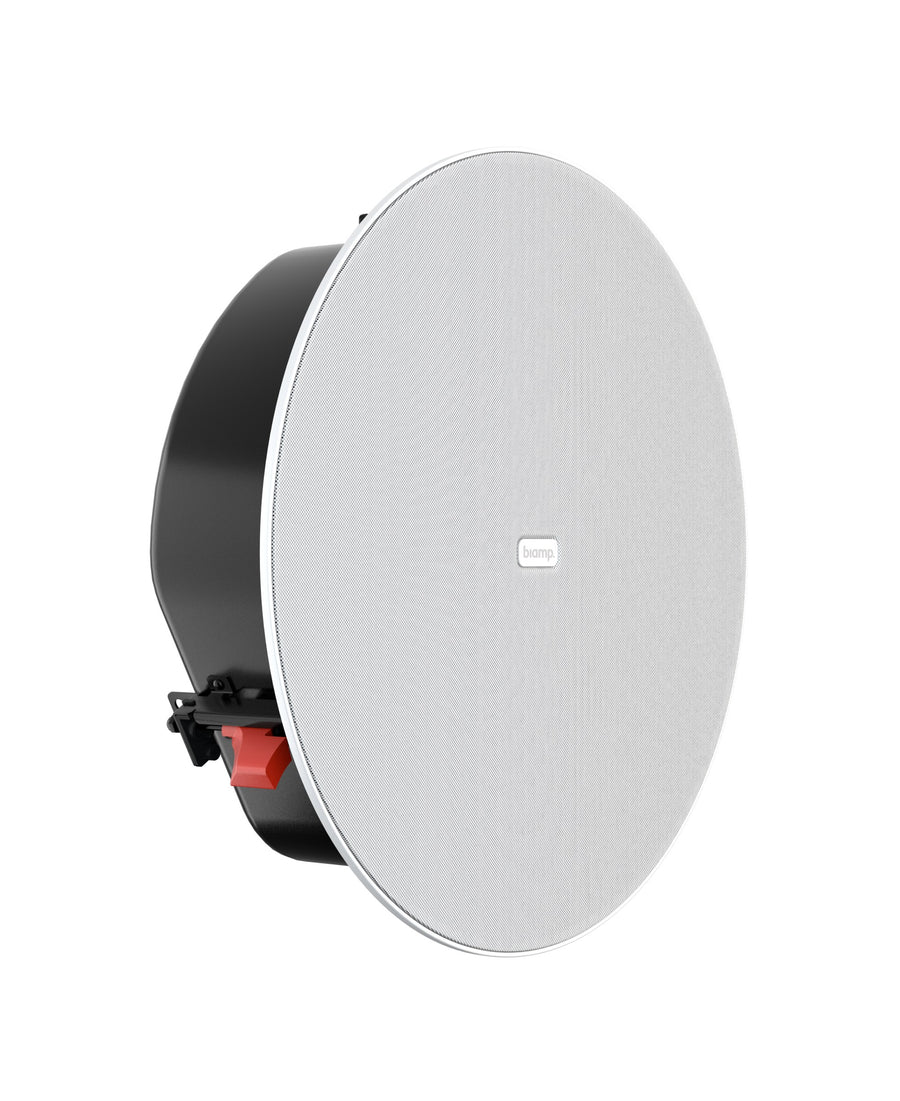

Biamp Desono C-IC6LP-TAA Ceiling Conferencing Loudspeaker – 920-10298-20100
The Biamp Desono C-IC6LP-TAA is a TAA-compliant, 2-way, 6.5-inch low-profile ceiling conferencing loudspeaker for government and conference projects. It has a 3.91-inch (100 mm) depth and a 60 W continuous rating at 8 ohms, and it is Zoom certified. Procure.ae supplies the Biamp Desono C-IC6LP-TAA in the UAE, with delivery and installation available.
The Desono C-IC6LP-TAA uses a 6.5-inch treated paper cone and a 1-inch soft dome tweeter with a waveguide, joined by a 2.5 kHz crossover. The manufacturer specifies an operating range of 63 Hz to 20 kHz (-10 dB), a nominal conical beamwidth of 140 degrees, and nominal sensitivity of 87 dB at 1 W. Passive peak SPL is 109 dB and continuous SPL is 103 dB. Separate LF and HF magnets support clean, accurate sound.
Use the Desono C-IC6LP-TAA where a TAA-compliant loudspeaker is required in a narrow-depth ceiling, such as conference and paging systems. The manufacturer states it is ETL listed to UL 1480A, UL 2043 and CSA 62368-1, and suitable for air-handling spaces under NFPA 70 and NFPA 90. Its SpringLock clamps allow tool-free installation, and conduit knock-outs meet Chicago plenum requirements. The manufacturer designed it to integrate with the Tesira AMP-450BP, sold separately. The manufacturer model code is 920-10298-20100.
Type
Conferencing Loudspeaker
Weight
4.12 kg
- TAA compliance
- Shallow 100 mm depth
- Coaxial driver design
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
TAA compliance
The manufacturer states the loudspeaker is US Trade Agreement Act (TAA) compliant for government procurement.
02
Shallow 100 mm depth
Total depth is 3.91 inches (100 mm) for narrow-depth ceilings.
03
Coaxial driver design
Separate LF and HF magnets support clean, accurate sound.
04
Wide 140-degree coverage
The HF waveguide gives a nominal conical beamwidth of 140 degrees.
05
SpringLock mounting
Three SpringLock clamps with a 33 mm (1.3-inch) grip range allow tool-free installation.
06
Edgeless grille
The magnetic grille is edgeless for a clean ceiling finish.
07
Plenum conduit knock-outs
Conduit knock-outs meet Chicago plenum air space requirements.
08
5-year warranty
The manufacturer backs the loudspeaker with a five-year warranty.
Specifications
20 specificationsGeneral
ApplicationIndoor ceiling installations, government projects
CompatibilityZoom Certified, TAA compliant
Key FeaturesTAA compliant, 100 mm (3.91-inch) depth, coaxial driver with waveguide, SpringLock tool-free mounting, Zoom certified, 5-year warranty
ModelDesono C-IC6LP-TAA
TypeConferencing Loudspeaker
Audio
Coverage Pattern140° conical (nominal beamwidth)
Crossover Frequency2.5 kHz
Frequency Response63 Hz to 20 kHz (-10 dB)
Impedance8 Ω
Max SPL109 dB peak, 103 dB continuous
Sensitivity87 dB (1 W at 8 Ω)
Speaker Configuration2-way coaxial (6.5-inch LF, 1-inch HF with waveguide)
Speaker Size6.5 inch
Speaker Type2-way low-profile ceiling conferencing loudspeaker
Power
Power Capacity (W)60 W continuous
Physical
FinishWhite (RAL 9016) or Black (RAL 9017)
Mounting3 SpringLock clamps, 33 mm (1.3-inch) grip range
Weight4.12 kg
Compliance
CertificationsTAA compliant; ETL listed to UL 1480A, UL 2043, CSA 62368-1; air-handling use per NFPA 70 and NFPA 90
Warranty5 years
Downloads
Manufacturer documents for the Biamp Desono C-IC6LP-TAA Ceiling Conferencing Loudspeaker – 920-10298-20100 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Is the Desono C-IC6LP-TAA TAA compliant?
Yes. The manufacturer states the Desono C-IC6LP-TAA is US Trade Agreement Act (TAA) compliant, which supports government procurement requirements. Ask Procure.ae about the compliance documentation your tender requires before you submit a bid.
Is the Desono C-IC6LP-TAA certified for Zoom?
Yes. The manufacturer lists the loudspeaker as Zoom Certified, alongside its TAA compliance. Confirm your Zoom room system requirements before ordering, so the loudspeaker suits your conferencing setup and existing hardware.
Does the Desono C-IC6LP-TAA need an amplifier?
Yes. It is a passive loudspeaker rated at 60 W continuous with 8-ohm impedance. The manufacturer designed it to integrate with the Tesira AMP-450BP backpack PoE+ amplifier, which is sold separately.
How deep is the Desono C-IC6LP-TAA and how is it mounted?
Its total depth is 3.91 inches (100 mm). It mounts with three SpringLock clamps that have a 33 mm (1.3-inch) grip range, and the included C-Ring supporting plate and tile support bridge rails assist installation.
Can I buy the Desono C-IC6LP-TAA (920-10298-20100) in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
