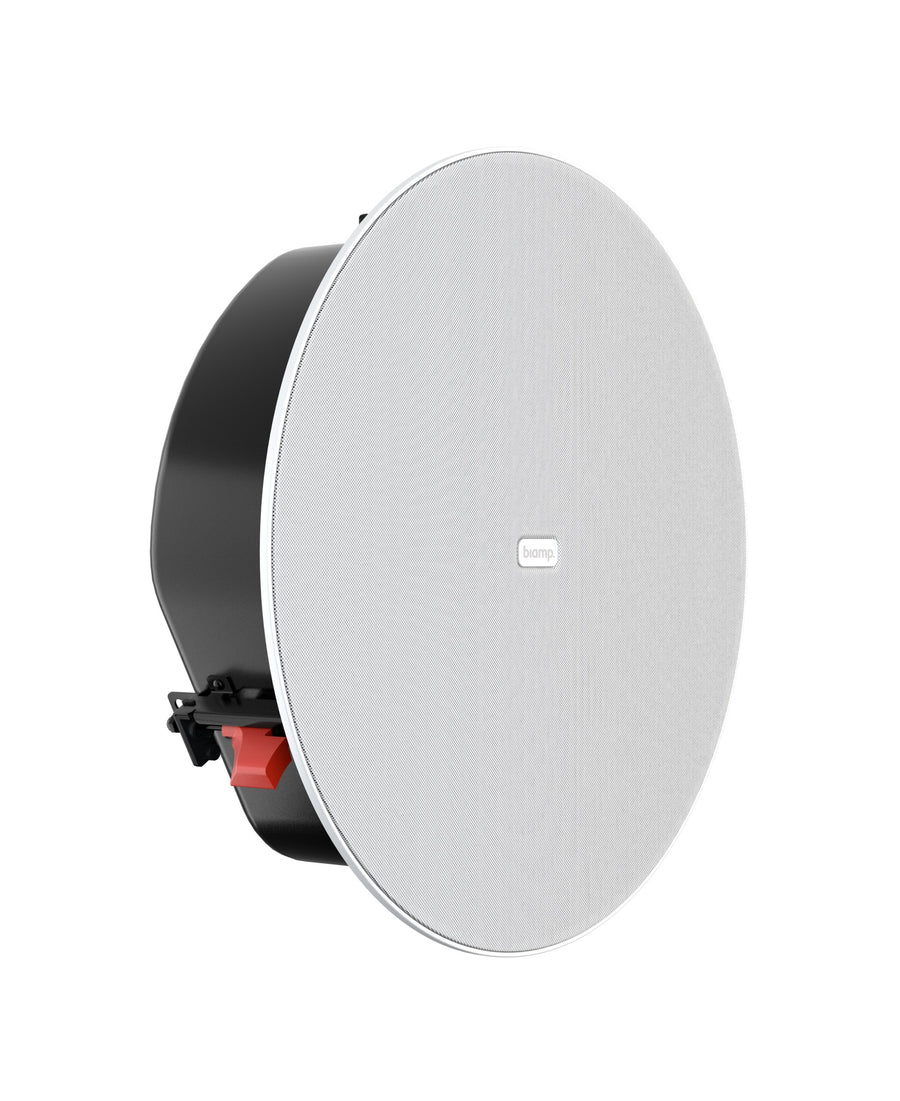

Biamp Desono C-IC6LP-TAA Ceiling Conferencing Loudspeaker – 920-10298-20100

The Biamp Desono C-IC6LP-TAA is a TAA-compliant, 2-way, 6.5-inch low-profile ceiling conferencing loudspeaker for government and conference projects. It has a 3.91-inch (100 mm) depth and a 60 W continuous rating at 8 ohms, and it is Zoom certified. Procure.ae supplies the Biamp Desono C-IC6LP-TAA in the UAE, with delivery and installation available.

The Desono C-IC6LP-TAA uses a 6.5-inch treated paper cone and a 1-inch soft dome tweeter with a waveguide, joined by a 2.5 kHz crossover. The manufacturer specifies an operating range of 63 Hz to 20 kHz (-10 dB), a nominal conical beamwidth of 140 degrees, and nominal sensitivity of 87 dB at 1 W. Passive peak SPL is 109 dB and continuous SPL is 103 dB. Separate LF and HF magnets support clean, accurate sound.

Use the Desono C-IC6LP-TAA where a TAA-compliant loudspeaker is required in a narrow-depth ceiling, such as conference and paging systems. The manufacturer states it is ETL listed to UL 1480A, UL 2043 and CSA 62368-1, and suitable for air-handling spaces under NFPA 70 and NFPA 90. Its SpringLock clamps allow tool-free installation, and conduit knock-outs meet Chicago plenum requirements. The manufacturer designed it to integrate with the Tesira AMP-450BP, sold separately. The manufacturer model code is 920-10298-20100.

Type

Conferencing Loudspeaker

Weight

4.12 kg

Key features

TAA compliance

The manufacturer states the loudspeaker is US Trade Agreement Act (TAA) compliant for government procurement.

Shallow 100 mm depth

Total depth is 3.91 inches (100 mm) for narrow-depth ceilings.

Coaxial driver design

Separate LF and HF magnets support clean, accurate sound.

Wide 140-degree coverage

The HF waveguide gives a nominal conical beamwidth of 140 degrees.

SpringLock mounting

Three SpringLock clamps with a 33 mm (1.3-inch) grip range allow tool-free installation.

Edgeless grille

The magnetic grille is edgeless for a clean ceiling finish.

Plenum conduit knock-outs

Conduit knock-outs meet Chicago plenum air space requirements.

5-year warranty

The manufacturer backs the loudspeaker with a five-year warranty.

Specifications

General
Application	Indoor ceiling installations, government projects
Compatibility	Zoom Certified, TAA compliant
Key Features	TAA compliant, 100 mm (3.91-inch) depth, coaxial driver with waveguide, SpringLock tool-free mounting, Zoom certified, 5-year warranty
Model	Desono C-IC6LP-TAA
Type	Conferencing Loudspeaker

Audio
Coverage Pattern	140° conical (nominal beamwidth)
Crossover Frequency	2.5 kHz
Frequency Response	63 Hz to 20 kHz (-10 dB)
Impedance	8 Ω
Max SPL	109 dB peak, 103 dB continuous
Sensitivity	87 dB (1 W at 8 Ω)
Speaker Configuration	2-way coaxial (6.5-inch LF, 1-inch HF with waveguide)
Speaker Size	6.5 inch
Speaker Type	2-way low-profile ceiling conferencing loudspeaker

Power
Power Capacity (W)	60 W continuous

Physical
Finish	White (RAL 9016) or Black (RAL 9017)
Mounting	3 SpringLock clamps, 33 mm (1.3-inch) grip range
Weight	4.12 kg

Compliance
Certifications	TAA compliant; ETL listed to UL 1480A, UL 2043, CSA 62368-1; air-handling use per NFPA 70 and NFPA 90
Warranty	5 years
