BenQInteractive Flat PanelsSKU RP7502

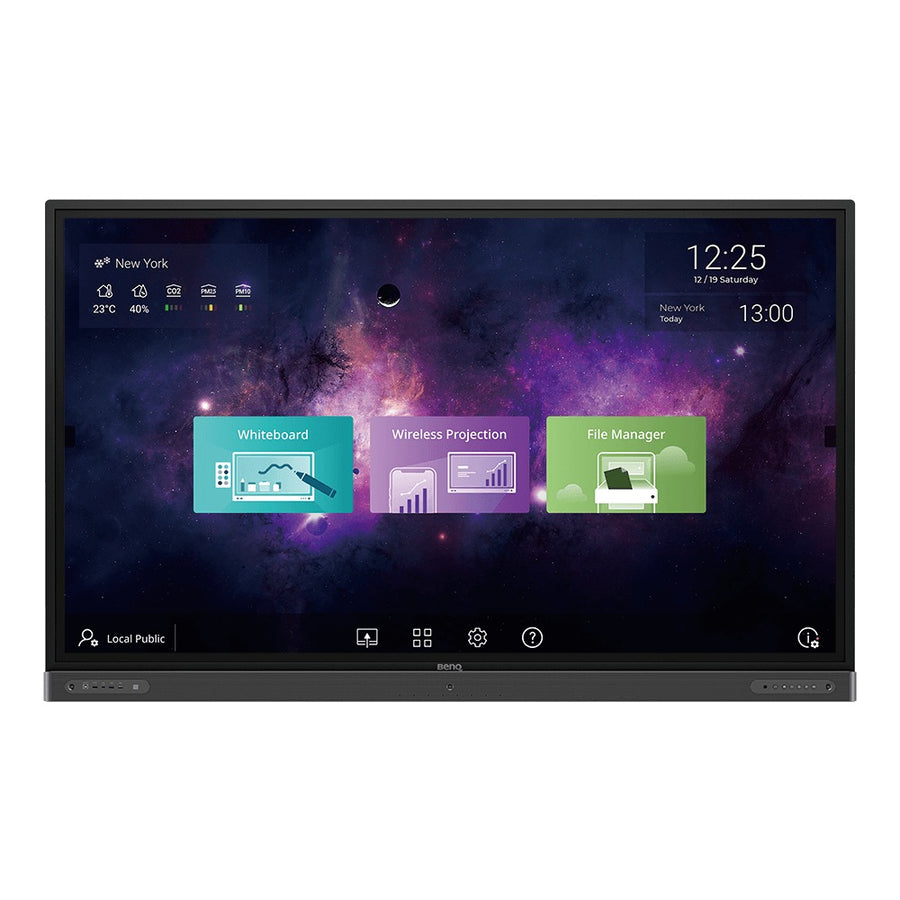

BenQ Board Pro RP02 75-inch Interactive Flat Panel – RP7502
The BenQ RP7502 is a 75-inch 4K UHD interactive flat panel for classrooms, with a germ-resistant 16:9 IPS display and 20-point infrared touch. It suits schools running blended learning, STEAM and project-based lessons. Procure.ae supplies the BenQ RP7502 across the UAE, with delivery and installation.
The RP7502 combines a 75-inch IPS panel at 3840 x 2160 (4K UHD) resolution with 450 nits typical brightness, a 1,200:1 typical contrast ratio and a 72% NTSC colour gamut. Its infrared touch supports 20 touch points with a response time under 4 ms. The screen uses nano-ionic silver germ-resistant treatment on 9H tempered glass. Eight microphones with an 8 m pickup range, two 16 W speakers and a 15 W subwoofer support classroom audio.
The RP7502 runs Android 8.0 and has one OPS slot for a slot-in PC. DMS device management, AMS account management and the X-Sign Broadcast system are included. The panel mounts on a VESA 600 x 400 mm pattern. Compared with the RP7505, it has 20 touch points against up to 50, and a 1,200:1 contrast ratio against 1,500:1.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Infrared
- 4K UHD display
- 20-point infrared touch
- Germ-resistant screen
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
4K UHD display
75-inch 16:9 IPS panel at 3840 x 2160 resolution.
02
20-point infrared touch
Touch response time under 4 ms.
03
Germ-resistant screen
Nano-ionic silver treatment on a 9H tempered surface.
04
Built-in microphones
Eight microphones with a pickup range of 8 m.
05
Speakers and subwoofer
Two 16 W speakers and a 15 W subwoofer.
06
EZWrite 5.0 whiteboarding
Built-in whiteboarding software from BenQ.
07
InstaShare 1 wireless sharing
Wireless screen sharing with InstaShare 1.
08
Android 8.0 with OPS slot
Runs Android 8.0 and accepts a slot-in OPS PC.
Specifications
36 specificationsGeneral
Key FeaturesGerm-resistant screen, Low blue light, Flicker-free, EZWrite 5.0 whiteboarding, InstaShare 1 wireless sharing, DMS and AMS management, NFC sensor, Air quality (TVOC) sensor
ModelRP7502
TypeInteractive Flat Panel
What's in the BoxRemote control, wall mount, VGA, HDMI, USB-B touch and USB-C cables
Display
Aspect Ratio16:9
Blue Light FilterYes
Brightness450 nits
Color Depth10-bit
Color Gamut72% NTSC
Contrast Ratio1,200:1
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch Points20-point multi-touch
Touch Response Time< 4 ms
Touch TechnologyInfrared
Performance
Operating SystemAndroid 8.0
ProcessorA73 × 2 + A53 × 2
Storage Conditions-10 to 60 °C, 10% to 80% RH
Audio
Microphone8 microphones
Pickup Range8 m
Speaker Output2 × 16 W speakers, 1 × 15 W subwoofer
Connectivity
Input Voltage100-240 V AC, 50/60 Hz
OPS Slot1 (slot-in PC)
PortsUSB 2.0 × 3, USB 3.0 × 2, USB-C × 1 (3.0), 3.5 mm audio in × 2, 3.5 mm audio out × 1, Ethernet × 1
Touch USB PortsUSB-B × 3 (USB 2.0)
Power
Power Consumption121.5 W (typical)
Standby Power< 0.5 W
Physical
Dimensions1735.5 x 1085.8 x 130.7 mm
Duty Cycle18 hours / 7 days
MountingWall mount included
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions1900 x 1160 x 225 mm
VESA Mount600 x 400 mm
Downloads
Manufacturer documents for the BenQ Board Pro RP02 75-inch Interactive Flat Panel – RP7502 — datasheets, manuals, drawings and certificates.
- Datasheet – BenQ Board Pro RP02
- User manual – BenQ (covers 62 models)
- User manual – BenQ Board Pro RP02
- User manual – BenQ (covers 25 models)
- User manual – BenQ Board Pro RP02
- User manual – BenQ Board Pro RP02 (Arabic)
- Control protocol (RS232 / LAN) – BenQ Board Pro RP02
- Certificate / compliance – BenQ Board Master RM02K / Board Pro RP02 / DuoBoard CP01K
Questions
Can’t find your answer? Ask on WhatsApp
What are the screen size and resolution of the BenQ RP7502?
The BenQ RP7502 has a 75-inch 16:9 IPS panel at 3840 x 2160 (4K UHD) resolution. It has 450 nits typical brightness, a 1,200:1 typical contrast ratio and a 72% NTSC colour gamut.
Does the RP7502 support multi-touch for a whole class?
Yes. The infrared touch supports 20 touch points with a response time under 4 ms, so several users can touch the screen at the same time. Touch input is provided through three USB-B touch ports rated USB 2.0.
Does the RP7502 include speakers and microphones?
Yes. It has two 16 W speakers, a 15 W subwoofer and eight microphones with a pickup range of up to 8 m. A 3.5 mm line-in also accepts a separate microphone.
Can the RP7502 run Android apps or a slot-in PC?
Yes. It runs Android 8.0 and has one OPS slot for a slot-in PC. Its Ethernet port runs at 10/100 Mbps on Android and up to 1000 Mbps on the OPS side.
Can the RP7502 be wall mounted?
Yes. It includes a wall mount and uses a VESA 600 x 400 mm mounting pattern with four M8 x 20L screws. Its overall dimensions are 1735.5 x 1085.8 x 130.7 mm.
