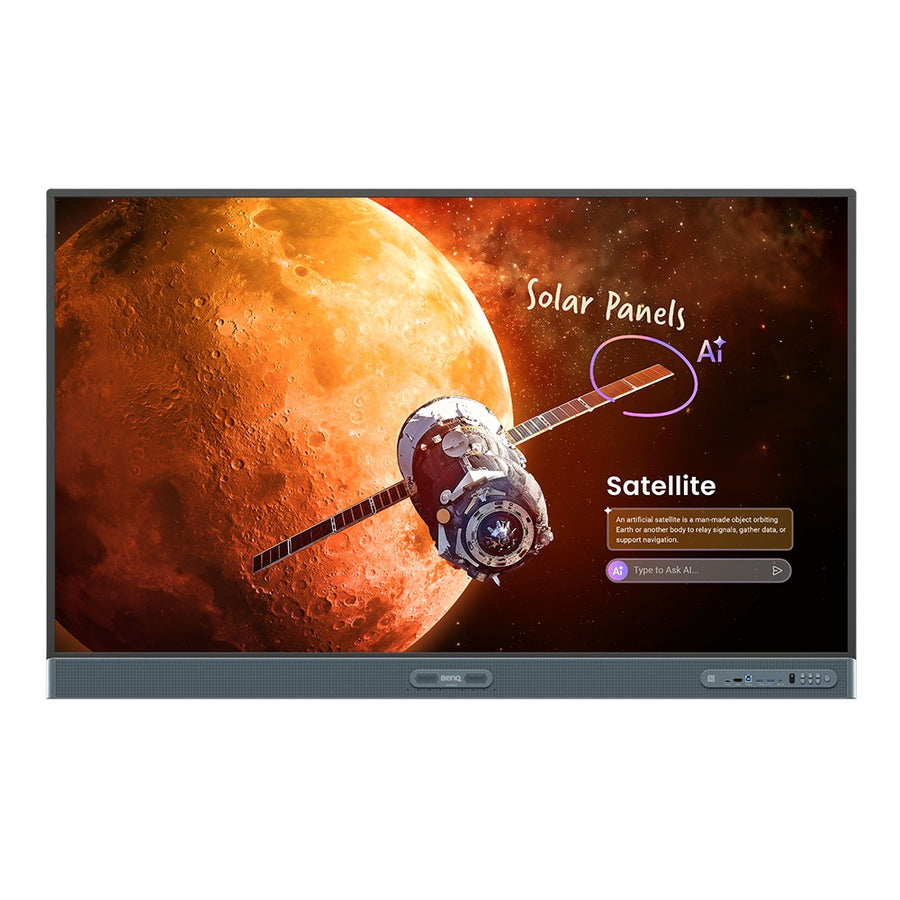

BenQ Board Pro RP6505 65-inch 4K interactive flat panel front viewBenQ

BenQ Board Pro 65-inch 4K Interactive Flat Panel – RP6505

The BenQ Board Pro RP6505 is a 65-inch 4K UHD interactive flat panel from the BenQ Board Pro RP05 series, built for teachers and IT teams. It pairs 3840 × 2160 IPS resolution with Ultra Precision IR touch of up to 50 touch points and built-in air quality sensors. Procure.ae supplies BenQ Board Pro RP6505 across the UAE.

The RP6505 uses a 65-inch IPS panel at 3840 × 2160 with 10-bit colour, 450 nits typical brightness, 1500:1 typical contrast and a 50,000:1 dynamic contrast ratio. Ultra Precision IR touch supports up to 50 touch points with a response time under 2.5 ms. Processing comes from two Arm Cortex-A78 cores and six Cortex-A55 cores with an Arm Mali-G57 GPU. An 8-microphone array picks up voices up to 12 m (39 ft). Built-in sensors cover CO₂, PM₂.₅, PM₁₀, TVOC, CH₂O, temperature and humidity.

The RP6505 suits classrooms, training rooms and meeting rooms, with a built-in pen tray for everyday use. It includes EZWrite 6.0 whiteboarding, InstaShare 2 wireless sharing, DMS device management and AMS account management. Wi-Fi 6 and Bluetooth 5.2 come as standard, and an OPS slot takes a slot-in PC. Compared with the BenQ Board Master RM6505, the RP6505 adds a pen tray, air quality sensing, an air ionizer and a subwoofer, and its USB-C port provides PD 100 W rather than PD 65 W.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Infrared
  • 65-inch 4K UHD panel
  • Ultra Precision IR touch
  • Built-in air quality sensing
Price
On request · best price
1
Download spec sheet (PDF) Manufacturer datasheet (PDF)
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request

Key features

01
65-inch 4K UHD panel
3840 × 2160 IPS resolution with 10-bit colour and 450 nits typical brightness.
02
Ultra Precision IR touch
up to 50 touch points with a touch response time under 2.5 ms.
03
Built-in air quality sensing
CO₂, PM₂.₅, PM₁₀, TVOC, CH₂O, temperature and humidity sensors.
04
Air ionizer
an air ionizer is included in the panel.
05
Built-in pen tray
a pen tray is built into the panel for writing tools.
06
Subwoofer and speakers
two 25 W speakers and a 20 W subwoofer for room audio.
07
Wi-Fi 6 and Bluetooth 5.2
wireless connectivity included for devices and accessories.
08
Device and account management
DMS and AMS tools manage devices and user accounts.

Specifications

46 specifications
General
Key Features50-point IR touch, air quality sensors (CO2, PM2.5, PM10, TVOC, CH2O), air ionizer, pen tray, 20 W subwoofer, 8-microphone array, NFC, flicker-free
ModelRP6505
TypeInteractive Flat Panel
What's in the BoxHDMI cable (3 m), USB-B touch cable (3 m), USB-C cable (1.5 m), wall mount, remote control
Display
Aspect Ratio16:9
Blue Light FilterYes
Brightness450 nits
Color Depth10-bit
Color Gamut72% NTSC
Contrast Ratio1,500:1
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Points50-point multi-touch
Touch Response Time<2.5 ms
Touch TechnologyInfrared
Performance
GraphicsArm Mali-G57 MC2
Operating SystemAndroid 15.0
ProcessorArm Cortex-A78 × 2 + Cortex-A55 × 6
Audio
Audio In3.5 mm line in × 2 (mic, PC audio)
Audio Out3.5 mm earphone × 1, S/PDIF optical × 1
DisplayPortDisplayPort × 1 (1.2a)
Microphone8-microphone array (up to 12 m)
Speaker Output2 × 25 W speakers, 1 × 20 W subwoofer
Connectivity
BluetoothBluetooth 5.2
Ethernet10/100/1000 Mbps × 2
Input Voltage100–240 V AC, 50/60 Hz
OPS Slot1 slot
SD Card SlotMicro SD × 1
Serial PortRS-232 × 1
Touch USB PortsUSB-B × 3 (USB 3.0)
USB PortsUSB 2.0 × 3, USB 3.0 × 4
USB-C PortsUSB-C × 2 (USB 2.0 + USB 3.0, PD 100 W), USB-C out × 1
VGA Input1
Wi-FiWi-Fi 6
Power
Power Consumption77.4 W (typical)
Standby Power<0.5 W
Physical
Dimensions1488.4 x 937.3 x 130.0 mm
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions1628 x 208 x 1024 mm
Surface Protection9H tempered, anti-glare
VESA Mount600 x 400 mm
Compliance
CertificationsENERGY STAR

Downloads

Manufacturer documents for the BenQ Board Pro 65-inch 4K Interactive Flat Panel – RP6505 — datasheets, manuals, drawings and certificates.

Questions

Can’t find your answer? Ask on WhatsApp

Does the BenQ Board Pro RP6505 have a built-in camera?
No. The camera is listed as N/A in the specifications, so there is no built-in camera. The panel includes an 8-microphone array with pickup up to 12 m (39 ft), plus built-in air quality sensors.
How many touch points does it support?
It supports up to 50 touch points using Ultra Precision IR touch technology, with a touch response time under 2.5 ms. The display is 65 inches with 3840 × 2160 resolution, and touch connects through a USB-B (3 × 3.0) port.
Does it include an air quality sensor and air ionizer?
Yes. The RP6505 includes sensors for CO₂, PM₂.₅, PM₁₀, TVOC, CH₂O, temperature and humidity, plus an air ionizer. The BenQ Board Master RM6505 in the RM05 series lists neither feature.
Is it suitable for a classroom or meeting room?
Yes, it suits classrooms, training rooms and meeting rooms. The 65-inch panel with up to 50 touch points, a built-in pen tray and an 8-microphone array is designed for teaching and collaboration. The manufacturer’s specifications do not state a room capacity, so Procure.ae can advise on sizing.
Can it be wall-mounted? What VESA pattern does it use?
Yes. It includes a wall mount and a VESA 600 × 400 mm pattern with four M8 × 25L screws. It operates at 0°C to 40°C with 10% to 90% RH non-condensing humidity, and Procure.ae can advise on installation for your room.
Can I buy the RP6505 in the UAE?
Request a quote via WhatsApp +971 4 546 5041 or email info@procure.ae.
