BenQInteractive Flat PanelsSKU RM7503

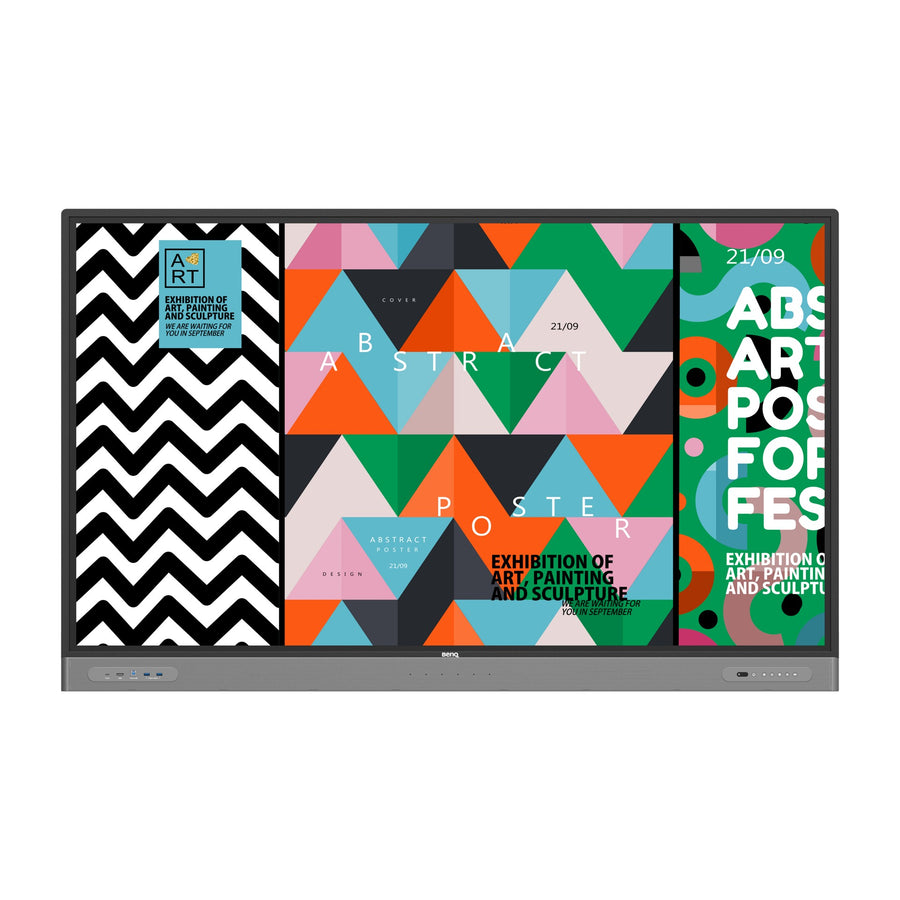

BenQ Board Master RM03 75-inch Interactive Flat Panel – RM7503
The BenQ RM7503 is a 75-inch 4K UHD interactive flat panel for large classrooms and collaboration rooms. It has an IPS panel with 450 nits typical brightness, up to 40-point infrared touch and a six-microphone array. Procure.ae supplies BenQ RM7503 in the UAE.
The RM7503 combines a 75-inch IPS panel at 3840 × 2160 resolution with 450 nits typical brightness and 1200:1 typical contrast. Infrared touch supports up to 40 points with a response time under 10 ms. Its 10-bit colour depth covers a 72% NTSC gamut. A six-microphone array with an 8 m pickup range and two 16 W speakers support discussion in larger rooms. Flicker Free and Low Blue Light features are included.
The RM7503 suits large classrooms, lecture spaces and boardrooms that need a bigger touch surface. It runs Android 9.0 with an OPS slot for a slot-in PC and includes EZWrite 6.0 whiteboarding and InstaShare 2 wireless sharing. Connections include DisplayPort 1.2, VGA, USB-C with 65 W power delivery and USB touch ports. It mounts on an 800 × 400 mm VESA pattern. Compared with the RM6503, it is larger, has 450 nits instead of 400 nits typical brightness, and draws 140.9 W typically.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Infrared
- 75-inch 4K UHD IPS panel
- Up to 40-point touch
- Six-microphone array
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
75-inch 4K UHD IPS panel
3840 × 2160 resolution and 450 nits typical brightness.
02
Up to 40-point touch
Infrared touch with a touch response time under 10 ms.
03
Six-microphone array
8 m maximum pickup range.
04
Android 9 with OPS slot
Android 9.0 platform with a slot-in PC option.
05
EZWrite 6.0 and InstaShare 2
Whiteboarding and wireless screen sharing included.
06
DisplayPort and USB-C
DisplayPort 1.2 input and USB-C with 65 W power delivery.
07
Device management
DMS device management and AMS account management.
Specifications
38 specificationsGeneral
Key Features4K UHD, IPS panel, up to 40-point touch, Infrared touch, Android 9, OPS slot, 6-mic array, EZWrite 6.0
ModelRM7503
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Blue Light FilterYes
Brightness450 nits
Color Depth10-bit
Color Gamut72% NTSC
Contrast Ratio1,200:1
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch Pointsup to 40-point multi-touch
Touch Response Time< 10 ms
Touch TechnologyInfrared
Performance
Operating SystemAndroid 9
ProcessorQuad-core A73 CPU, G52 MC2 GPU
Storage Conditions-10 to 60 °C, 20% to 80% RH (non-condensing)
Audio
Audio Out3.5 mm earphone × 1, S/PDIF optical × 1
DisplayPort1 × 1.2
Microphone6-microphone array, 8 m pickup range
Speaker Output2 × 16 W
Connectivity
Ethernet10/100 Mbps (Android), 10/100/1000 Mbps (OPS) × 2
Input Voltage100–240 V AC, 50/60 Hz
OPS Slot1 (slot-in PC)
USB PortsUSB-A × 2 (2.0), USB-A × 5 (3.0), USB-B touch × 3 (3.0)
USB-C PortsUSB-C × 1 (3.0, 65 W PD)
VGA Input1
Power
Power Consumption140.9 W (typical)
Standby Power< 0.5 W
Physical
Dimensions1717.0 x 1065.0 x 121.5 mm
Duty Cycle18 hours / 7 days
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Shipping Dimensions1900 x 1160 x 225 mm
Surface Protection9H tempered glass
VESA Mount800 x 400 mm
Downloads
Manufacturer documents for the BenQ Board Master RM03 75-inch Interactive Flat Panel – RM7503 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the BenQ RM7503?
The BenQ RM7503 is a 75-inch 4K UHD interactive flat panel with an IPS panel, up to 40-point infrared touch and Android 9.0. It belongs to the BenQ Board Master RM03 series and includes a six-microphone array, DisplayPort input, EZWrite 6.0 and InstaShare 2 wireless sharing.
Does the RM7503 have DisplayPort?
Yes. The RM7503 has one DisplayPort 1.2 input, alongside VGA and USB-C with 65 W power delivery. A separate OPS slot also takes a slot-in PC, so the panel can run its own Android platform and a PC together.
Does the RM7503 have a built-in microphone?
Yes. It has a six-microphone array with a maximum pickup range of 8 m, which suits discussion in larger rooms. The manufacturer's specifications do not state the microphone's sensitivity or audio processing features.
Can the RM7503 be wall mounted?
Yes. It includes a wall mount and supports VESA 800 × 400 mm mounting screws (4 × M8 × 20L). Procure.ae can arrange delivery and installation across the UAE and confirm the fixing method for your wall or frame before the visit.
How does the RM7503 compare with the RM6503?
The RM7503 is a larger 75-inch model with 450 nits typical brightness and a 140.9 W typical power draw. The RM6503 is a 65-inch model with 400 nits typical brightness and a 113.7 W typical power draw. Both offer up to 40-point infrared touch and an OPS slot.
