BenQInteractive Flat PanelsSKU RM6503

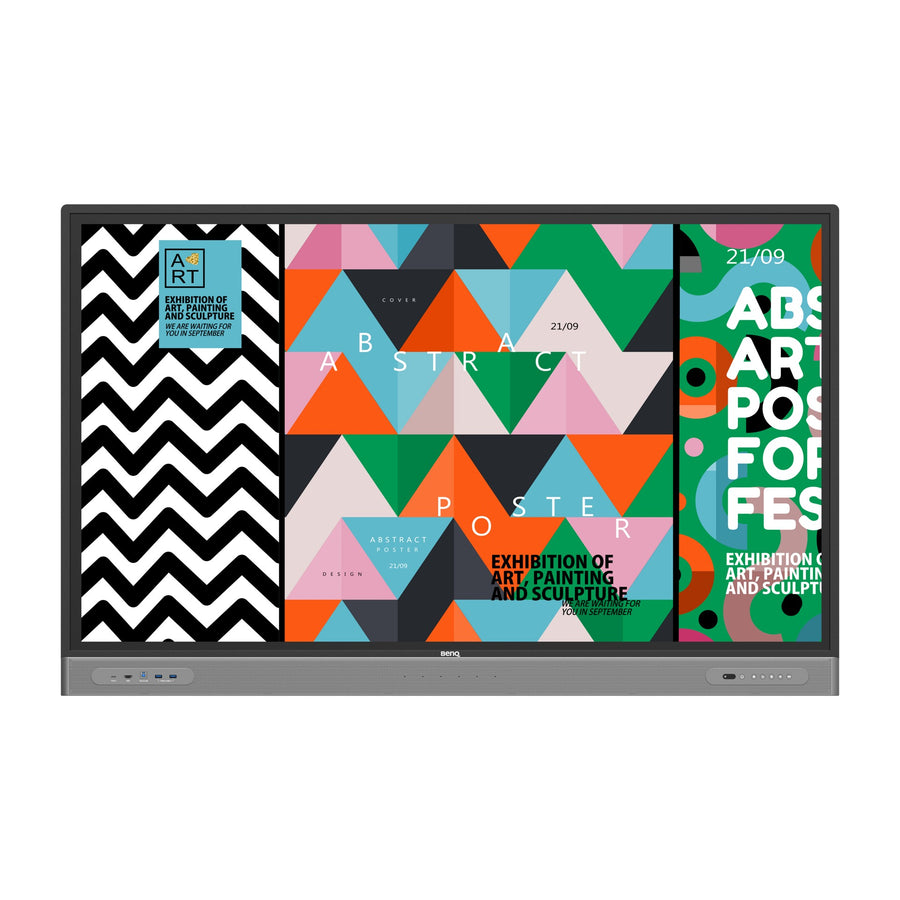

BenQ Board Master RM03 65-inch Interactive Flat Panel – RM6503
The BenQ RM6503 is a 65-inch 4K UHD interactive flat panel for collaborative classrooms and meeting rooms. It has an IPS panel, up to 40-point infrared touch, a six-microphone array and Android 9 with an OPS slot. Procure.ae supplies BenQ RM6503 in the UAE.
The RM6503 pairs a 65-inch IPS panel with 3840 × 2160 resolution, 400 nits typical brightness and 1200:1 typical contrast. Infrared touch supports up to 40 points with a touch response time under 10 ms. A six-microphone array with an 8 m maximum pickup range and two 16 W speakers support discussion in the room. Its 10-bit colour depth covers a 72% NTSC gamut, and the panel has 9H tempered glass with Flicker Free and Low Blue Light features.
The RM6503 suits classrooms, collaboration rooms and meeting spaces where wireless presentation and group brainstorming matter. It runs Android 9.0 with an OPS slot for a slot-in PC, includes EZWrite 6.0 whiteboarding and InstaShare 2 wireless sharing, and supports DMS and AMS management. Ports include VGA, USB-C and Ethernet. It mounts on a VESA 600 × 400 mm pattern. Compared with the RM6502K, it offers up to 40 touch points instead of 20, and EZWrite 6.0 and InstaShare 2 instead of EZWrite 5.0 and InstaShare 1.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
- 65-inch 4K UHD IPS panel
- Up to 40-point touch
- Six-microphone array
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
65-inch 4K UHD IPS panel
3840 × 2160 resolution and 400 nits typical brightness.
02
Up to 40-point touch
Infrared touch with a touch response time under 10 ms.
03
Six-microphone array
8 m maximum pickup range.
04
Android 9 with OPS slot
Android 9.0 platform with a slot-in PC option.
05
EZWrite 6.0 and InstaShare 2
Whiteboarding and wireless screen sharing included.
06
Connectivity
VGA, USB-C with 65 W power delivery, USB touch ports and Ethernet.
07
Device management
DMS device management and AMS account management.
08
Eye-comfort features
Flicker Free, Low Blue Light and nano-ionic silver germ resistance.
Specifications
37 specificationsGeneral
Key Features4K UHD, IPS panel, up to 40-point touch, Infrared touch, Android 9, OPS slot, 6-mic array, EZWrite 6.0
ModelRM6503
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Blue Light FilterYes
Brightness400 nits
Color Depth10-bit
Color Gamut72% NTSC
Contrast Ratio1,200:1
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Pointsup to 40-point multi-touch
Touch Response Time< 10 ms
Touch TechnologyInfrared
Performance
Operating SystemAndroid 9
ProcessorQuad-core A73 CPU, G52 MC2 GPU
Storage Conditions-10 to 60 °C, 10% to 80% RH (non-condensing)
Audio
Audio Out3.5 mm earphone × 1, S/PDIF optical × 1
Microphone6-microphone array, 8 m pickup range
Speaker Output2 × 16 W
Connectivity
Ethernet10/100 Mbps (Android), 10/100/1000 Mbps (OPS) × 2
Input Voltage100–240 V AC, 50/60 Hz
OPS Slot1 (slot-in PC)
USB PortsUSB-A × 2 (2.0), USB-A × 5 (3.0), USB-B touch × 3 (3.0)
USB-C PortsUSB-C × 1 (3.0, 65 W PD)
VGA Input1
Power
Power Consumption113.7 W (typical)
Standby Power< 0.5 W
Physical
Dimensions1506.0 x 951.0 x 122.2 mm
Duty Cycle18 hours / 7 days
Operating Humidity10% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Shipping Dimensions1660 x 1045 x 220 mm
Surface Protection9H tempered glass
VESA Mount600 x 400 mm
Downloads
Manufacturer documents for the BenQ Board Master RM03 65-inch Interactive Flat Panel – RM6503 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
What is the BenQ RM6503?
The BenQ RM6503 is a 65-inch 4K UHD interactive flat panel with an IPS panel, up to 40-point infrared touch and Android 9.0. It belongs to the BenQ Board Master RM03 series and includes a six-microphone array, EZWrite 6.0 whiteboarding and InstaShare 2 wireless sharing.
Does the RM6503 have a built-in microphone?
Yes. The RM6503 has a six-microphone array with a maximum pickup range of 8 m, which suits discussion in a classroom or meeting room. The manufacturer's specifications do not state the microphone's sensitivity or audio processing features.
Does the RM6503 support a slot-in PC?
Yes. It has one OPS slot for a slot-in PC, alongside its built-in Android 9.0 platform. The OPS slot also provides Ethernet connections, which helps when the slot-in PC needs a wired network.
Can the RM6503 be wall mounted?
Yes. It includes a wall mount and supports VESA 600 × 400 mm mounting screws (4 × M8 × 20L). Procure.ae can arrange delivery and installation across the UAE and confirm the fixing method for your wall or frame before the visit.
How does the RM6503 differ from the RM6502K?
The RM6503 offers up to 40 touch points, EZWrite 6.0 and InstaShare 2, while the RM6502K has 20 touch points, EZWrite 5.0 and InstaShare 1. Both are 65-inch 4K UHD IPS panels with 400 nits typical brightness and an OPS slot.
