BenQ · RM6503 · Interactive Flat Panel

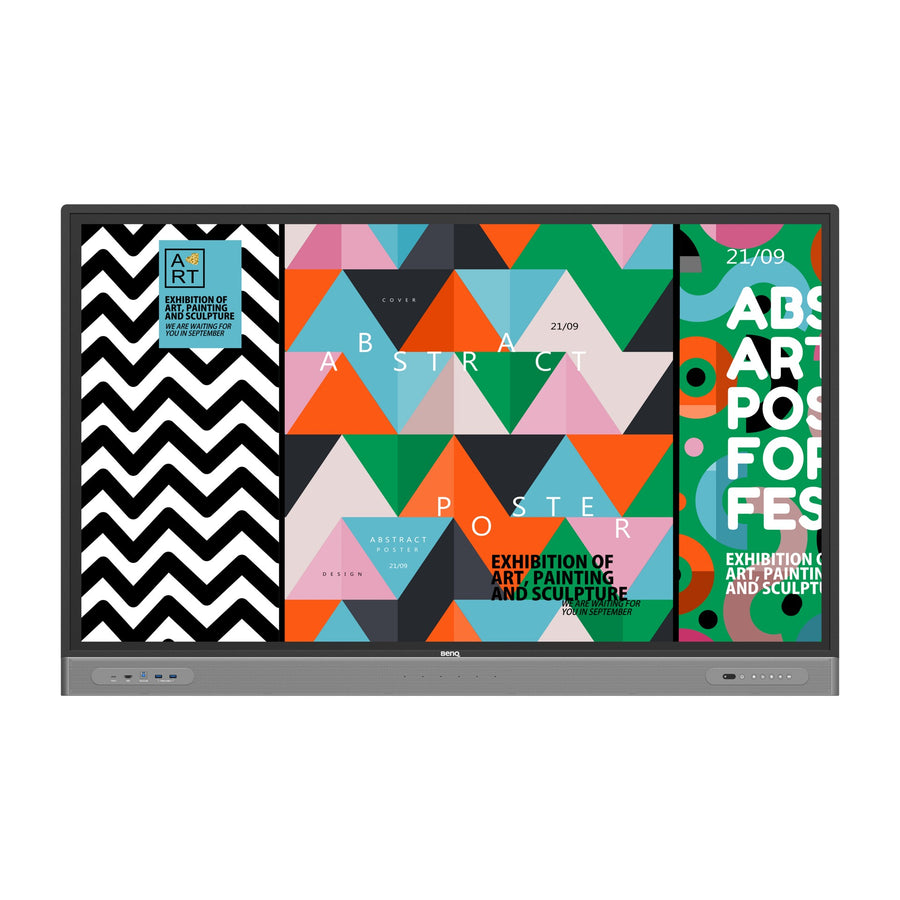

BenQ Board Master RM03 65-inch Interactive Flat Panel – RM6503

BenQ Board Master RM03 65-inch Interactive Flat Panel – RM6503

The BenQ RM6503 is a 65-inch 4K UHD interactive flat panel for collaborative classrooms and meeting rooms. It has an IPS panel, up to 40-point infrared touch, a six-microphone array and Android 9 with an OPS slot. Procure.ae supplies BenQ RM6503 in the UAE.

The RM6503 pairs a 65-inch IPS panel with 3840 × 2160 resolution, 400 nits typical brightness and 1200:1 typical contrast. Infrared touch supports up to 40 points with a touch response time under 10 ms. A six-microphone array with an 8 m maximum pickup range and two 16 W speakers support discussion in the room. Its 10-bit colour depth covers a 72% NTSC gamut, and the panel has 9H tempered glass with Flicker Free and Low Blue Light features.

The RM6503 suits classrooms, collaboration rooms and meeting spaces where wireless presentation and group brainstorming matter. It runs Android 9.0 with an OPS slot for a slot-in PC, includes EZWrite 6.0 whiteboarding and InstaShare 2 wireless sharing, and supports DMS and AMS management. Ports include VGA, USB-C and Ethernet. It mounts on a VESA 600 × 400 mm pattern. Compared with the RM6502K, it offers up to 40 touch points instead of 20, and EZWrite 6.0 and InstaShare 2 instead of EZWrite 5.0 and InstaShare 1.

Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
400 nits
Touch Technology
Infrared
Type
Interactive Flat Panel

Key features

01
65-inch 4K UHD IPS panel
3840 × 2160 resolution and 400 nits typical brightness.
02
Up to 40-point touch
Infrared touch with a touch response time under 10 ms.
03
Six-microphone array
8 m maximum pickup range.
04
Android 9 with OPS slot
Android 9.0 platform with a slot-in PC option.
05
EZWrite 6.0 and InstaShare 2
Whiteboarding and wireless screen sharing included.
06
Connectivity
VGA, USB-C with 65 W power delivery, USB touch ports and Ethernet.
07
Device management
DMS device management and AMS account management.
08
Eye-comfort features
Flicker Free, Low Blue Light and nano-ionic silver germ resistance.

Specifications

General
Key Features4K UHD, IPS panel, up to 40-point touch, Infrared touch, Android 9, OPS slot, 6-mic array, EZWrite 6.0
ModelRM6503
TypeInteractive Flat Panel
Display
Aspect Ratio16:9
Blue Light FilterYes
Brightness400 nits
Color Depth10-bit
Color Gamut72% NTSC
Contrast Ratio1,200:1
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Pointsup to 40-point multi-touch
Touch Response Time< 10 ms
Touch TechnologyInfrared
Performance
Operating SystemAndroid 9
ProcessorQuad-core A73 CPU, G52 MC2 GPU
Storage Conditions-10 to 60 °C, 10% to 80% RH (non-condensing)
Audio
Audio Out3.5 mm earphone × 1, S/PDIF optical × 1
Microphone6-microphone array, 8 m pickup range
Speaker Output2 × 16 W
Connectivity
Ethernet10/100 Mbps (Android), 10/100/1000 Mbps (OPS) × 2
Input Voltage100–240 V AC, 50/60 Hz
OPS Slot1 (slot-in PC)
USB PortsUSB-A × 2 (2.0), USB-A × 5 (3.0), USB-B touch × 3 (3.0)
USB-C PortsUSB-C × 1 (3.0, 65 W PD)
VGA Input1
Power
Power Consumption113.7 W (typical)
Standby Power< 0.5 W
Physical
Dimensions1506.0 x 951.0 x 122.2 mm
Duty Cycle18 hours / 7 days
Operating Humidity10% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Shipping Dimensions1660 x 1045 x 220 mm
Surface Protection9H tempered glass
VESA Mount600 x 400 mm
QR code to BenQ Board Master RM03 65-inch Interactive Flat Panel – RM6503 on procure.ae
Get our best price for this product
Scan to open it on procure.ae, or contact the Procure sales team:
☎ +971 4 546 5041  ·  WhatsApp  ·  ✉ info@procure.ae  ·  🔗 View product page

This sheet is compiled from the product data held on procure.ae. For fully accurate and up-to-date figures, always refer to the manufacturer’s own specification sheet or datasheet for this model.

Specifications are provided by the manufacturer and may change without notice.

Pricing is quote-based. Contact Procure for current pricing and availability.

Delivery across the UAE and beyond, installation on request and manufacturer-backed warranty.
