BenQInteractive Flat PanelsSKU RM6505

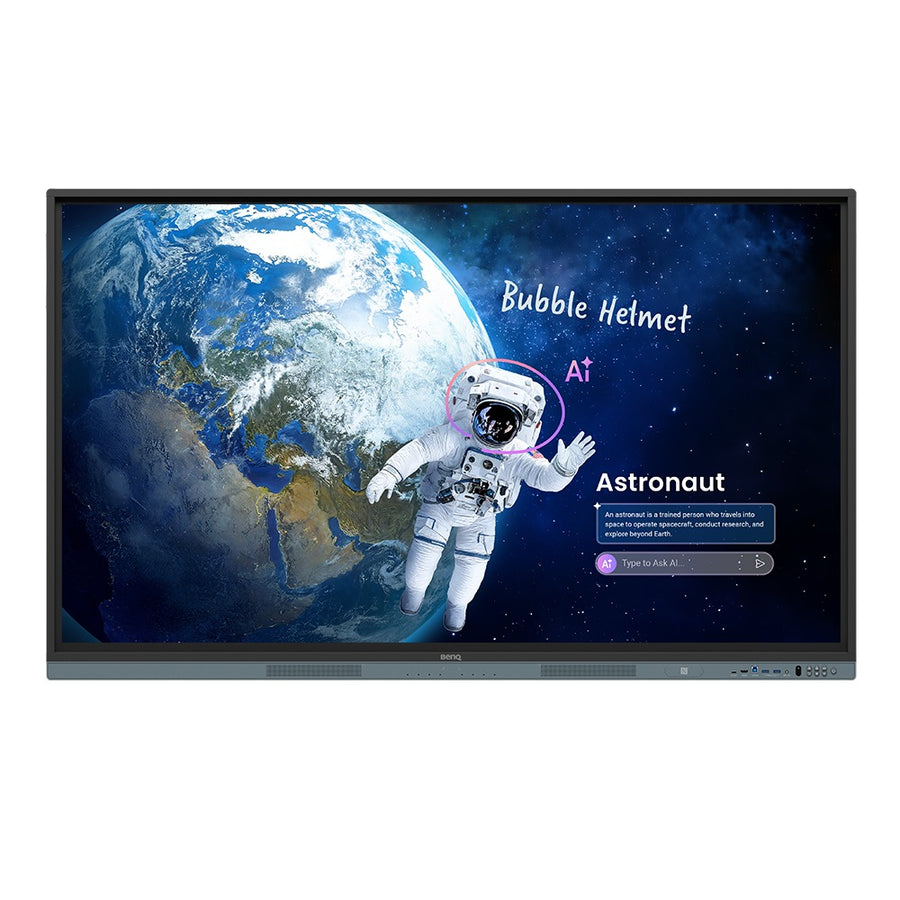

BenQ Board Master 65-inch 4K Interactive Flat Panel – RM6505
The BenQ Board Master RM6505 is a 65-inch 4K UHD interactive flat panel from the BenQ Board Master RM05 series, built for teachers and IT teams. It combines 3840 × 2160 IPS resolution, High Precision IR touch with up to 50 touch points, and Android 15.0 with an OPS slot. Procure.ae supplies BenQ Board Master RM6505 across the UAE.
The RM6505 uses a 65-inch IPS panel at 3840 × 2160 with 10-bit colour, 450 nits typical brightness and 1500:1 typical contrast. High Precision IR touch supports up to 50 touch points with a response time under 5 ms. Processing comes from two Arm Cortex-A78 cores and six Cortex-A55 cores with an Arm Mali-G57 GPU. An 8-microphone array picks up voices up to 12 m (39 ft), and two 25 W speakers provide in-room sound.
The RM6505 suits classrooms and training spaces where teachers and IT teams share one platform. It runs EZWrite 6.0 for whiteboarding and InstaShare 2 for wireless screen sharing, with DMS device management and AMS account management. Its OPS slot, Ethernet ports and optional Wi-Fi 6 and Bluetooth 5.2 modules support integration. Compared with the Board Pro RP6505, it has no pen tray, air quality sensors, air ionizer or subwoofer, and its USB-C port provides PD 65 W rather than PD 100 W.
Screen Size
65 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Infrared
- 65-inch 4K UHD panel
- High Precision IR touch
- Android 15.0 platform
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
65-inch 4K UHD panel
3840 × 2160 IPS resolution with 10-bit colour and 450 nits typical brightness.
02
High Precision IR touch
up to 50 touch points with a touch response time under 5 ms.
03
Android 15.0 platform
runs Android 15.0 (EDLA) on Arm Cortex-A78 and A55 processing.
04
Eight-microphone array
picks up voices up to 12 m (39 ft) for classroom and meeting audio.
05
Device and account management
DMS and AMS tools manage devices and user accounts.
06
Wireless screen sharing
InstaShare 2 shares screens wirelessly from users' own devices.
07
Eye-comfort features
Flicker Free and Low Blue Light features for comfortable viewing.
08
Expansion and I/O
an OPS slot, Micro SD reader, USB-C and Ethernet ports for integration.
Specifications
44 specificationsGeneral
Key Features50-point IR touch, 8-microphone array, 2 × 25 W speakers, NFC, nano-ionic silver germ resistance, ambient light and IR sensors, wireless screen sharing, flicker-free
ModelRM6505
TypeInteractive Flat Panel
What's in the BoxHDMI cable (3 m), USB-B touch cable (3 m), USB-C cable (1.5 m), wall mount, remote control
Display
Aspect Ratio16:9
Blue Light FilterYes
Brightness450 nits
Color Depth10-bit
Color Gamut72% NTSC
Contrast Ratio1,500:1
OrientationLandscape
Panel TechnologyIPS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size65 inch
Touch Points50-point multi-touch
Touch Response Time<5 ms
Touch TechnologyInfrared
Performance
GraphicsArm Mali-G57 MC2
Operating SystemAndroid 15.0
ProcessorArm Cortex-A78 × 2 + Cortex-A55 × 6
Audio
Audio In3.5 mm line in × 2 (mic, PC audio)
Audio Out3.5 mm earphone × 1, S/PDIF optical × 1
DisplayPortDisplayPort × 1 (1.2a)
Microphone8-microphone array (up to 12 m)
Speaker Output2 × 25 W
Connectivity
Ethernet10/100/1000 Mbps × 2
Input Voltage100–240 V AC, 50/60 Hz
OPS Slot1 slot
SD Card SlotMicro SD × 1
Serial PortRS-232 × 1
Touch USB PortsUSB-B × 3 (USB 3.0)
USB PortsUSB 2.0 × 3, USB 3.0 × 4
USB-C PortsUSB-C × 2 (USB 2.0 + USB 3.0, PD 65 W), USB-C out × 1
VGA Input1
Power
Power Consumption83.4 W (typical)
Standby Power<0.5 W
Physical
Dimensions1488.4 x 903.3 x 98.4 mm
Operating Humidity10% to 90% RH
Operating Temperature0 to 40 °C
Shipping Dimensions1628 x 1014 x 185 mm
Surface Protection9H tempered, anti-glare
VESA Mount600 x 400 mm
Compliance
CertificationsENERGY STAR
Downloads
Manufacturer documents for the BenQ Board Master 65-inch 4K Interactive Flat Panel – RM6505 — datasheets, manuals, drawings and certificates.
Questions
Can’t find your answer? Ask on WhatsApp
Does the BenQ Board Master RM6505 have a built-in camera?
No. The camera is listed as N/A in the specifications, so the RM6505 has no built-in camera. It does include an 8-microphone array with a pickup range of up to 12 m (39 ft) and a 3.5 mm line-in for PC audio.
How many touch points does it support?
It supports up to 50 touch points using High Precision IR touch technology, with a touch response time under 5 ms. Touch connectivity uses USB-B (3 × 3.0) on the panel, and the display is 65 inches with 3840 × 2160 resolution.
Which operating system and wireless tools does it use?
It runs Android 15.0 (EDLA). The whiteboarding tool is EZWrite 6.0 and the wireless screen sharing tool is InstaShare 2. Wi-Fi 6 and Bluetooth 5.2 are optional modules, and the OPS slot accepts a slot-in PC.
Is it suitable for a classroom or meeting room?
Yes, it suits classrooms and meeting rooms. The 65-inch panel with 450 nits typical brightness, up to 50 touch points and a 12 m microphone pickup range is built for teaching and collaboration. The manufacturer’s specifications do not state a room capacity, so Procure.ae can advise on sizing.
Can it be wall-mounted? What VESA pattern does it use?
Yes. It includes a wall mount and a VESA 600 × 400 mm mounting pattern with four M8 × 25L screws. It operates at 0°C to 40°C with 10% to 90% RH non-condensing humidity, and Procure.ae can advise on installation for your room.
