BenQInteractive Flat PanelsSKU CM7505

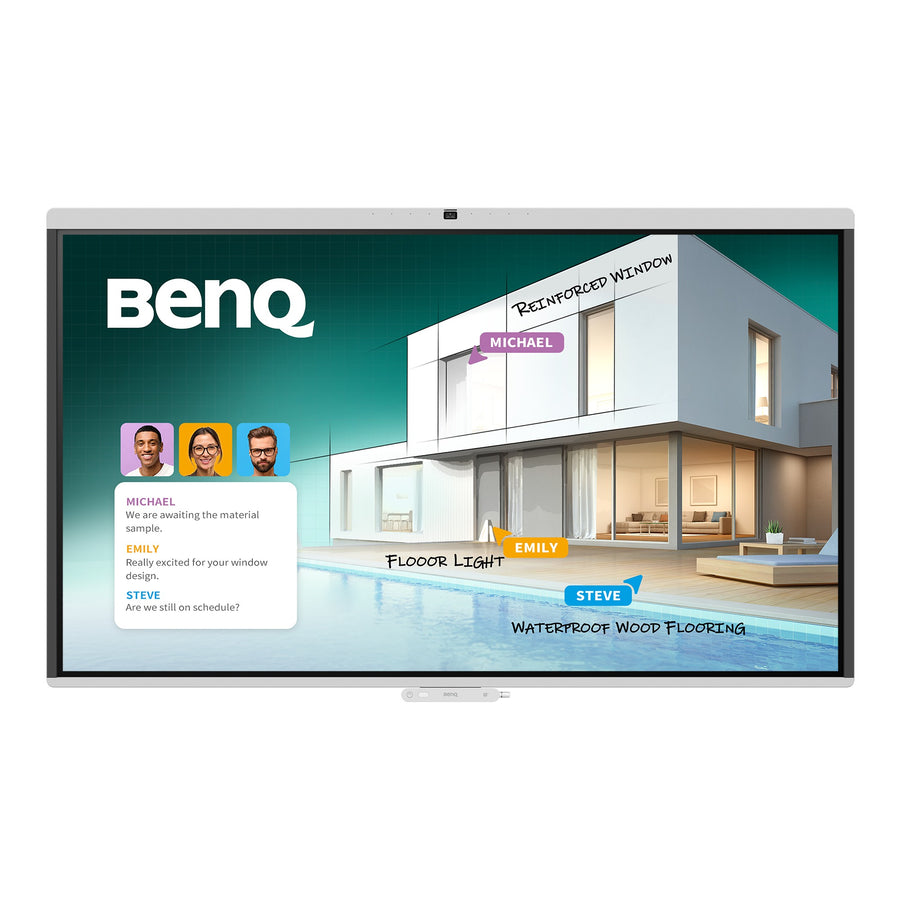

BenQ Board CM 75-inch Interactive Flat Panel – CM7505
The BenQ Board CM7505 is a 75-inch 4K interactive flat panel for business meetings. It has a 3840 x 2160 ADS panel, Ultra Precision infrared touch with up to 50 points, and a 50MP camera with 160° field of view. Procure.ae supplies the BenQ Board CM7505 in the UAE.
The CM7505 runs Android 15.0 on an Arm Cortex-A78 and A55 processor with a Mali-G57 GPU. Its panel offers 450 nits typical brightness, a 1,200:1 typical contrast ratio, 10-bit color depth and 90% NTSC color gamut. The 8-microphone array picks up voices up to 12 m away. Audio comes from two 25 W speakers and a 40 W subwoofer, and the panel has a 9H tempered surface with nano-ionic silver germ-resistant technology.
The CM7505 fits large meeting rooms, classrooms and training rooms that need one large shared screen. It supports an OPS slot-in PC, Wi-Fi 6 and Ethernet, plus DMS and AMS management tools. It is landscape only and mounts with a VESA 800 x 400 mm pattern. Compared with the 55-inch CM5505, it has a subwoofer and draws 135 W typical power.
Screen Size
75 inch
Resolution
3840 x 2160 (4K UHD)
Brightness
450 nits
Touch Technology
Infrared
- 75-inch 4K panel
- Infrared multi-touch
- Built-in Android 15
Delivery across UAE & GCCDubai, Abu Dhabi, Sharjah & beyond
Manufacturer warrantyBacked by the brand
InstallationArranged on request
Key features
01
75-inch 4K panel
3840 x 2160 resolution on a 75-inch ADS panel with 16:9 aspect ratio.
02
Infrared multi-touch
Ultra Precision IR touch with up to 50 points and response under 2.5 ms.
03
Built-in Android 15
Android 15.0 on an Arm Cortex-A78 and A55 processor with Mali-G57 GPU.
04
50MP camera
50MP camera with 160° field of view.
05
8-mic array
Microphone array with pickup up to 12 m (39 ft).
06
Subwoofer audio
Two 25 W speakers and one 40 W subwoofer.
07
Collaboration software
EZWrite 6.0 whiteboarding and InstaShare 2 screen sharing.
08
Device management
DMS device management and AMS account management with NFC login.
Specifications
36 specificationsGeneral
Key FeaturesEZWrite 6.0 whiteboarding, InstaShare 2, DMS device management, AMS account management, NFC login, SummarAI, X-Sign broadcast, low blue light
ModelCM7505
TypeInteractive Flat Panel
What's in the BoxHDMI, USB-C, USB-C to USB-A and RS-232 cables; wall mount
Display
Aspect Ratio16:9
Brightness450 nits
Camera50MP, 160° field of view
Color Depth10-bit
Color Gamut90% NTSC
Contrast Ratio1,200:1
OrientationLandscape
Panel TechnologyADS
Resolution3840 x 2160 (4K UHD)
Response Time8 ms
Screen Size75 inch
Touch PointsUp to 50-point multi-touch
Touch Response Time< 2.5 ms
Touch TechnologyInfrared
Performance
Duty Cycle18 hours / 7 days
GraphicsArm Mali-G57 MC2
Operating SystemAndroid 15.0
ProcessorArm Cortex-A78 x 2 + A55 x 6
Audio
Microphone8-microphone array, pickup up to 12 m
Speaker Output2 × 25 W, plus 1 × 40 W subwoofer
Connectivity
Input Voltage100–240 V AC, 50/60 Hz
OPS Slot1 OPS slot
PortsUSB-A × 2 (3.0), USB-C × 2 (2.0 and 3.0, PD 65 W), 3.5 mm line out × 1
Wi-FiWi-Fi 6
Power
Power Consumption135 W (typical)
Standby Power< 0.5 W
Physical
Dimensions1720.7 x 1052.7 x 103.9 mm
Operating Humidity20% to 80% RH (non-condensing)
Operating Temperature0 to 40 °C
Shipping Dimensions1880 x 1135 x 220 mm
VESA Mount800 x 400 mm
Compliance
CertificationsENERGY STAR, EDLA-certified
Downloads
Manufacturer documents for the BenQ Board CM 75-inch Interactive Flat Panel – CM7505 — datasheets, manuals, drawings and certificates.
- User manual – BenQ Board CM (Business) CM05 / Board CP (Business) CP05
- User manual – BenQ Board CM (Business) CM05 / Board CP (Business) CP05
- User manual – BenQ Board CM (Business) CM05 / Board CP (Business) CP05 (Arabic)
- Control protocol (RS232 / LAN) – BenQ Board CM (Business) CM05 / Board CP (Business) CP05
- Certificate / compliance – CM7505
Questions
Can’t find your answer? Ask on WhatsApp
What size and resolution is the BenQ Board CM7505?
The CM7505 is a 75-inch display with a 3840 x 2160 (4K UHD) ADS panel in a 16:9 aspect ratio. Its panel brightness is 450 nits typical and its response time is 8 ms.
Does the CM7505 support slot-in PCs?
Yes. The CM7505 has one OPS slot for a slot-in PC, and it runs Android 15.0 with Wi-Fi 6 and Ethernet. The manufacturer's specifications describe a single OPS slot, so confirm the PC module you plan to fit.
Can the CM7505 be wall mounted?
Yes. The CM7505 includes a wall mount and uses a VESA 800 x 400 mm pattern with 4 M8 x 25L screws. Its dimensions are 1720.7 x 1052.7 x 103.9 mm, so confirm the wall structure and bracket load before mounting.
Is the CM7505 landscape only?
Yes. The CM7505 supports landscape orientation only, unlike the CM5505, which also supports portrait. Its 16:9 4K UHD panel suits wide-screen layouts, and Procure.ae can confirm the right mounting option for your room.
What management and wireless tools does the CM7505 use?
The CM7505 uses DMS for device management and AMS for account management, plus InstaShare 2 for wireless screen sharing and EZWrite 6.0 for whiteboarding. It also supports NFC login and SummarAI.
