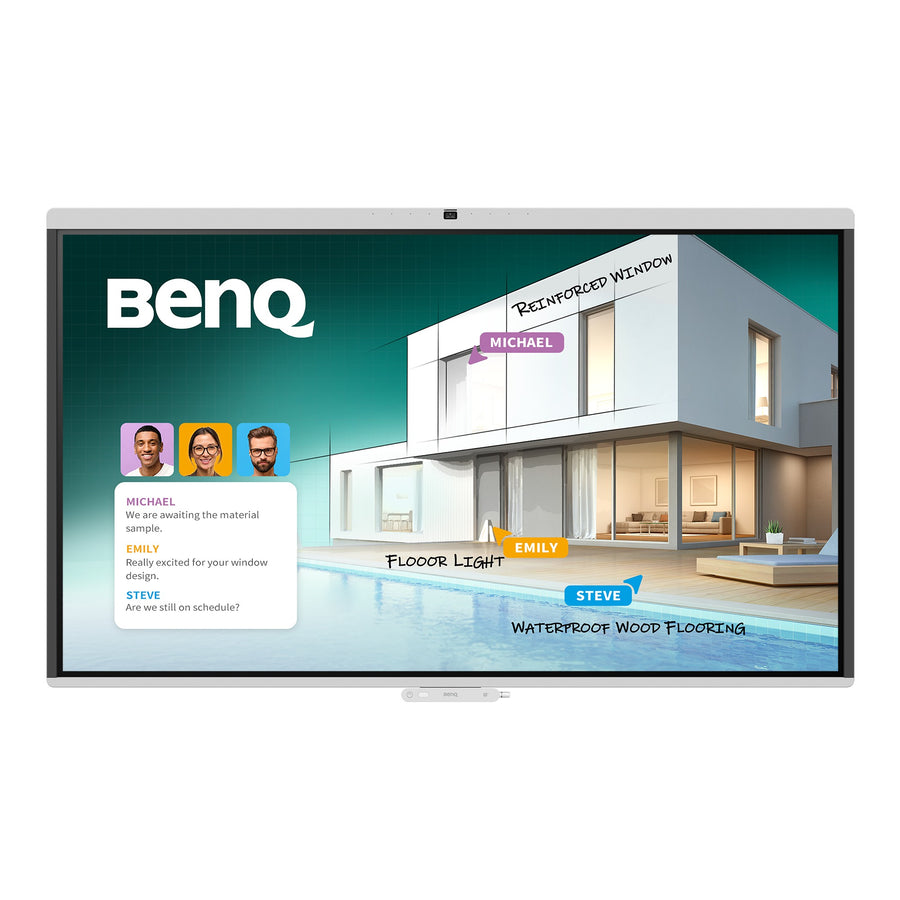

BenQ Board CM 75-inch Interactive Flat Panel – CM7505
The BenQ Board CM7505 is a 75-inch 4K interactive flat panel for business meetings. It has a 3840 x 2160 ADS panel, Ultra Precision infrared touch with up to 50 points, and a 50MP camera with 160° field of view. Procure.ae supplies the BenQ Board CM7505 in the UAE.
The CM7505 runs Android 15.0 on an Arm Cortex-A78 and A55 processor with a Mali-G57 GPU. Its panel offers 450 nits typical brightness, a 1,200:1 typical contrast ratio, 10-bit color depth and 90% NTSC color gamut. The 8-microphone array picks up voices up to 12 m away. Audio comes from two 25 W speakers and a 40 W subwoofer, and the panel has a 9H tempered surface with nano-ionic silver germ-resistant technology.
The CM7505 fits large meeting rooms, classrooms and training rooms that need one large shared screen. It supports an OPS slot-in PC, Wi-Fi 6 and Ethernet, plus DMS and AMS management tools. It is landscape only and mounts with a VESA 800 x 400 mm pattern. Compared with the 55-inch CM5505, it has a subwoofer and draws 135 W typical power.
Key features
Specifications
| Key Features | EZWrite 6.0 whiteboarding, InstaShare 2, DMS device management, AMS account management, NFC login, SummarAI, X-Sign broadcast, low blue light |
| Model | CM7505 |
| Type | Interactive Flat Panel |
| What's in the Box | HDMI, USB-C, USB-C to USB-A and RS-232 cables; wall mount |
| Aspect Ratio | 16:9 |
| Brightness | 450 nits |
| Camera | 50MP, 160° field of view |
| Color Depth | 10-bit |
| Color Gamut | 90% NTSC |
| Contrast Ratio | 1,200:1 |
| Orientation | Landscape |
| Panel Technology | ADS |
| Resolution | 3840 x 2160 (4K UHD) |
| Response Time | 8 ms |
| Screen Size | 75 inch |
| Touch Points | Up to 50-point multi-touch |
| Touch Response Time | < 2.5 ms |
| Touch Technology | Infrared |
| Duty Cycle | 18 hours / 7 days |
| Graphics | Arm Mali-G57 MC2 |
| Operating System | Android 15.0 |
| Processor | Arm Cortex-A78 x 2 + A55 x 6 |
| Microphone | 8-microphone array, pickup up to 12 m |
| Speaker Output | 2 × 25 W, plus 1 × 40 W subwoofer |
| Input Voltage | 100–240 V AC, 50/60 Hz |
| OPS Slot | 1 OPS slot |
| Ports | USB-A × 2 (3.0), USB-C × 2 (2.0 and 3.0, PD 65 W), 3.5 mm line out × 1 |
| Wi-Fi | Wi-Fi 6 |
| Power Consumption | 135 W (typical) |
| Standby Power | < 0.5 W |
| Dimensions | 1720.7 x 1052.7 x 103.9 mm |
| Operating Humidity | 20% to 80% RH (non-condensing) |
| Operating Temperature | 0 to 40 °C |
| Shipping Dimensions | 1880 x 1135 x 220 mm |
| VESA Mount | 800 x 400 mm |
| Certifications | ENERGY STAR, EDLA-certified |
